MPI-536 – USER MANUAL

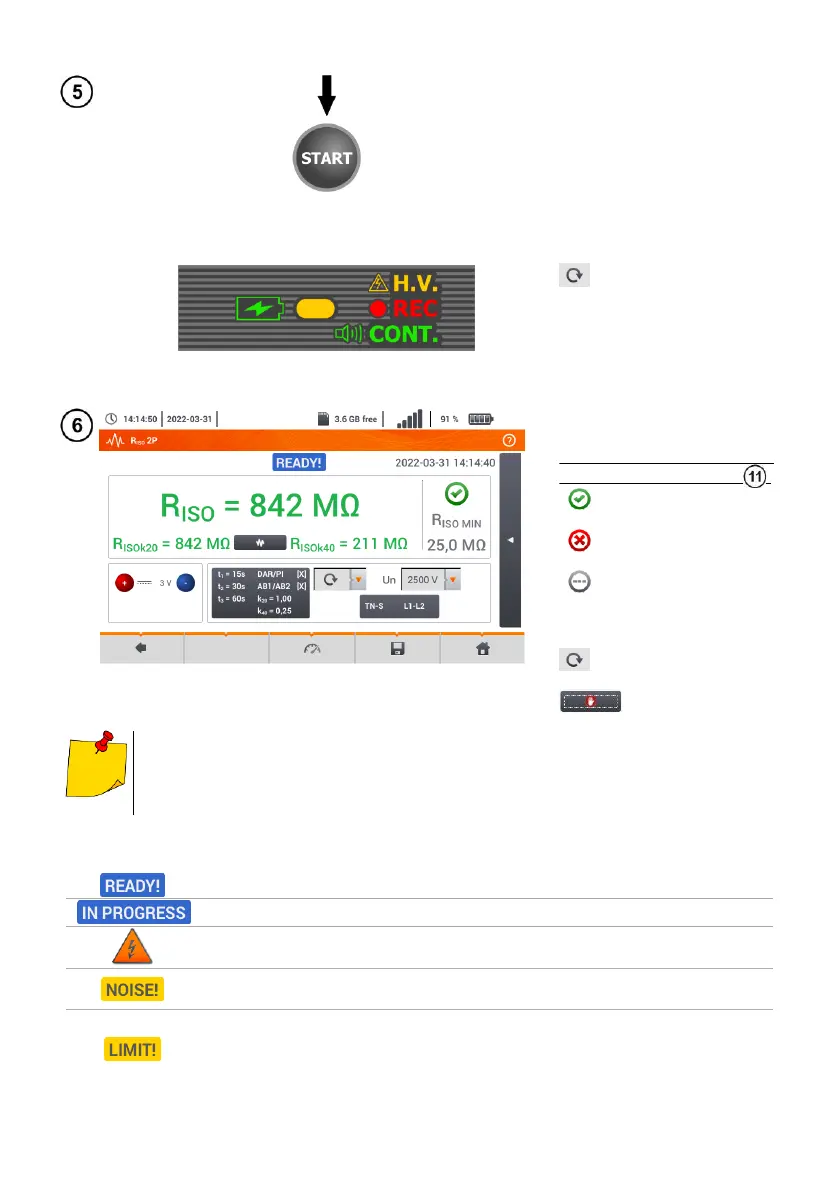

Press and hold the START
button. The measurement is
performed continuously when
the START is held in the
pressed position.
In order to interrupt the
measurement, press START.
If continuous measurement
has been selected (icon
), a prompt will appear to
confirm the start of the meas-
urement.
During the measurement the
H.V./REC/CONT. diode is lit
in orange.
Read the measurement result.
Signal lights for reaching the
limit (section 3.10.1 step )
the result is within the
set limit
the result is outside the
set limit
assessment not possible
If continuous measurement
has been selected (icon
), the measurement can
be stopped by selecting the
icon.
The meter emits a continuous audio signal until test voltage reaches 90% of the preset
value (and also when 110% of the preset value is exceeded).
After completion of measurement, the capacitance of the object tested is discharged
by shorting R
ISO
+ and R
ISO
– terminals with resistance of 100 kΩ.
Additional information displayed by the meter
The meter is ready for measurement.
Too high voltage detected on terminals of the meter. Disconnects the termi-
nals from the test object.
Interference voltage occurs on the tested object. Measurement is possible
but may be burdened with additional uncertainty.
Current limit tripped. The symbol displayed during the measurement is ac-
companied by a continuous beep. If it is displayed after the measurement, it
means that the measurement result was obtained during operation with a cur-
rent limiting device (e.g. short circuit on the test object).
