Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
17(53)

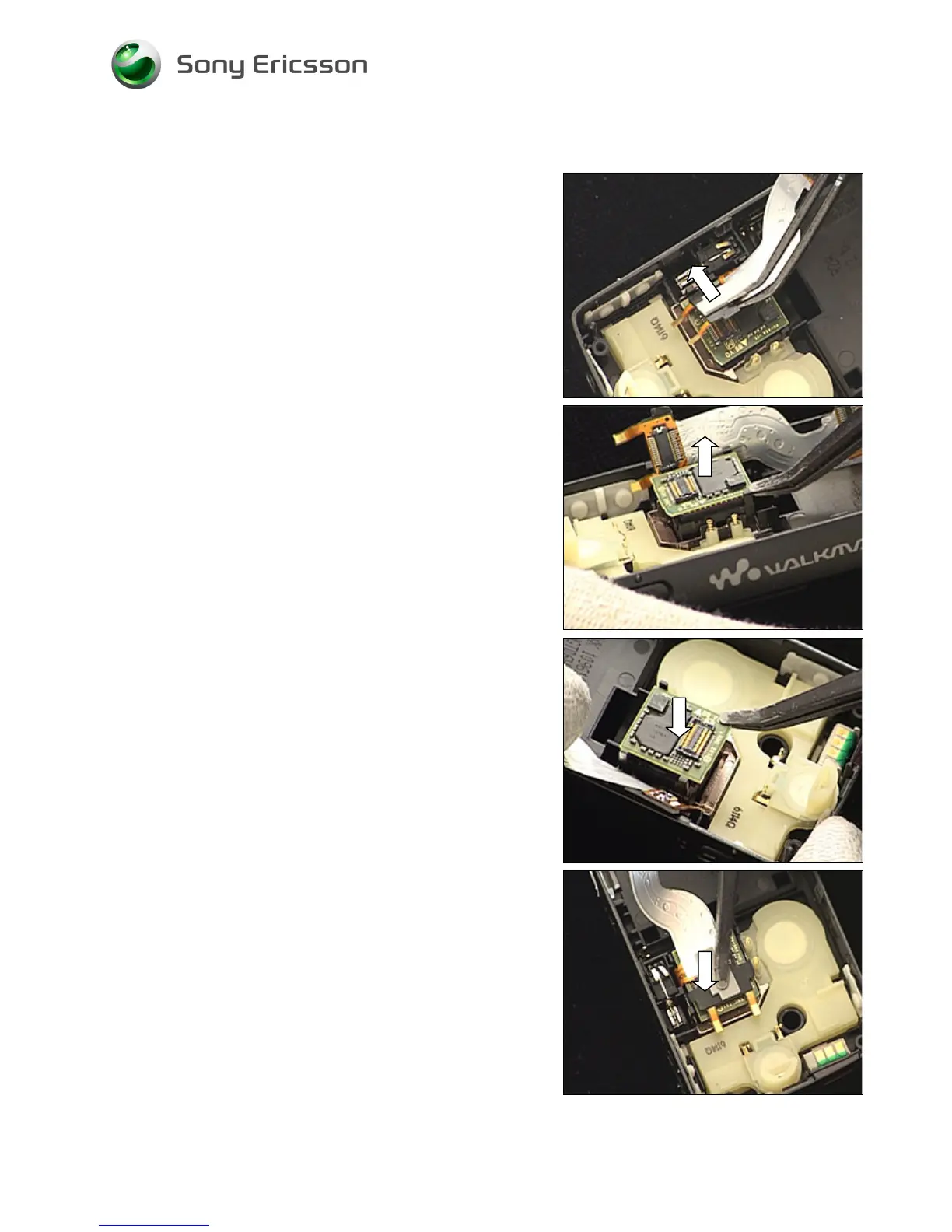

3.7 Camera
Follow the 2.1.1 – 2.1.7 Disassembly instructions!
D
O NOT TOUCH THE CAMERA LENS!
Disconnect the camera flex film board-to-board connector
by lifting it upwards with the ‘flex film assembly tool’.
Remove the camera by lifting it straight up.
Mount the camera by gently pushing it through the hole.
Connect the flex film board-to-board connector to
the camera with your fingers or with the ‘flex film assembly
tool’.
Follow the 4.1.1 – 4.1.7 Reassembly instructions!
