Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
45(53)

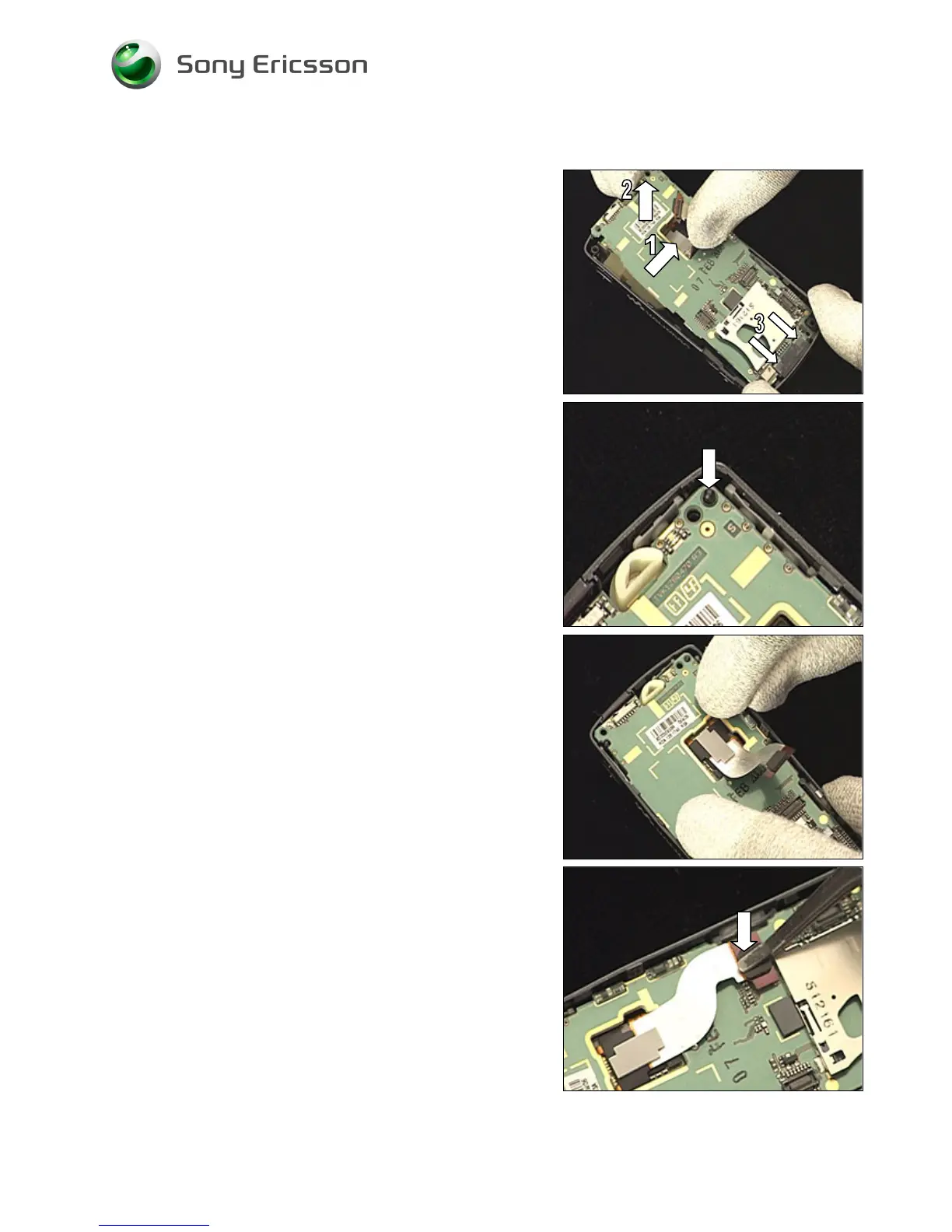

4.1.1 PBA
Gently slide the camera flex film trough the hole (1) of the
PBA.
DO NOT RAISE THE PBA TOO MUCH UPWARDS!
Raise the PBA at the top (2) and press it underneath the
two supports (3).
Gently lower the PBA while checking that the camera flex
film is smoothly passing through the hole without getting
stuck.
Place the PBA in the frame so that the frame’s guiding pin
enters the PBA guiding hole.
Snap the PBA onto the frame by pressing at these two
spots.
Connect the lower camera flex film board-to-board
connector to the PBA with your fingers or with the ‘flex film
assembly tool’.
