Sony Ericsson W810 - Plug, External Antenna

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
42(53)
3.30 Plug, external antenna
Follow the 2.1.1 – 2.1.2 Disassembly instructions!

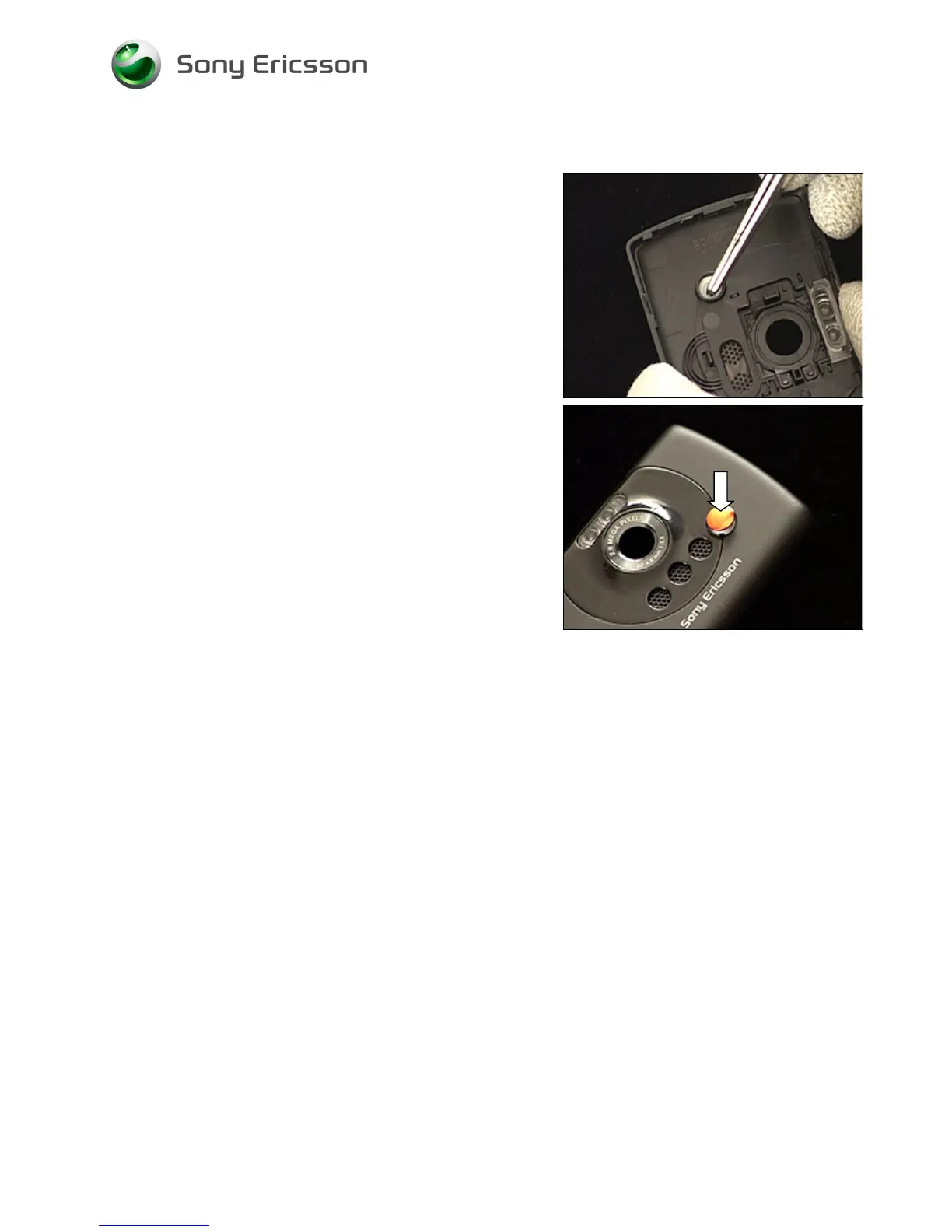

Remove the plug by pressing from the inside of the antenna
cover with the tweezers.
T
HE PLUG CAN BE REMOVED FROM THE OUTSIDE WITH A
DENTIST HOOK BUT THIS CAN RESULT IN SCRATCHES ON THE
ANTENNA COVER AND
/OR THE PLUG.
Place the plug as shown and press it down with your finger.
Follow the 4.1.6 – 4.1.7 Reassembly instructions!
