Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
24(53)
3.12 Bluetooth Antenna
Follow the 2.1.1 – 2.1.7 Disassembly instructions!

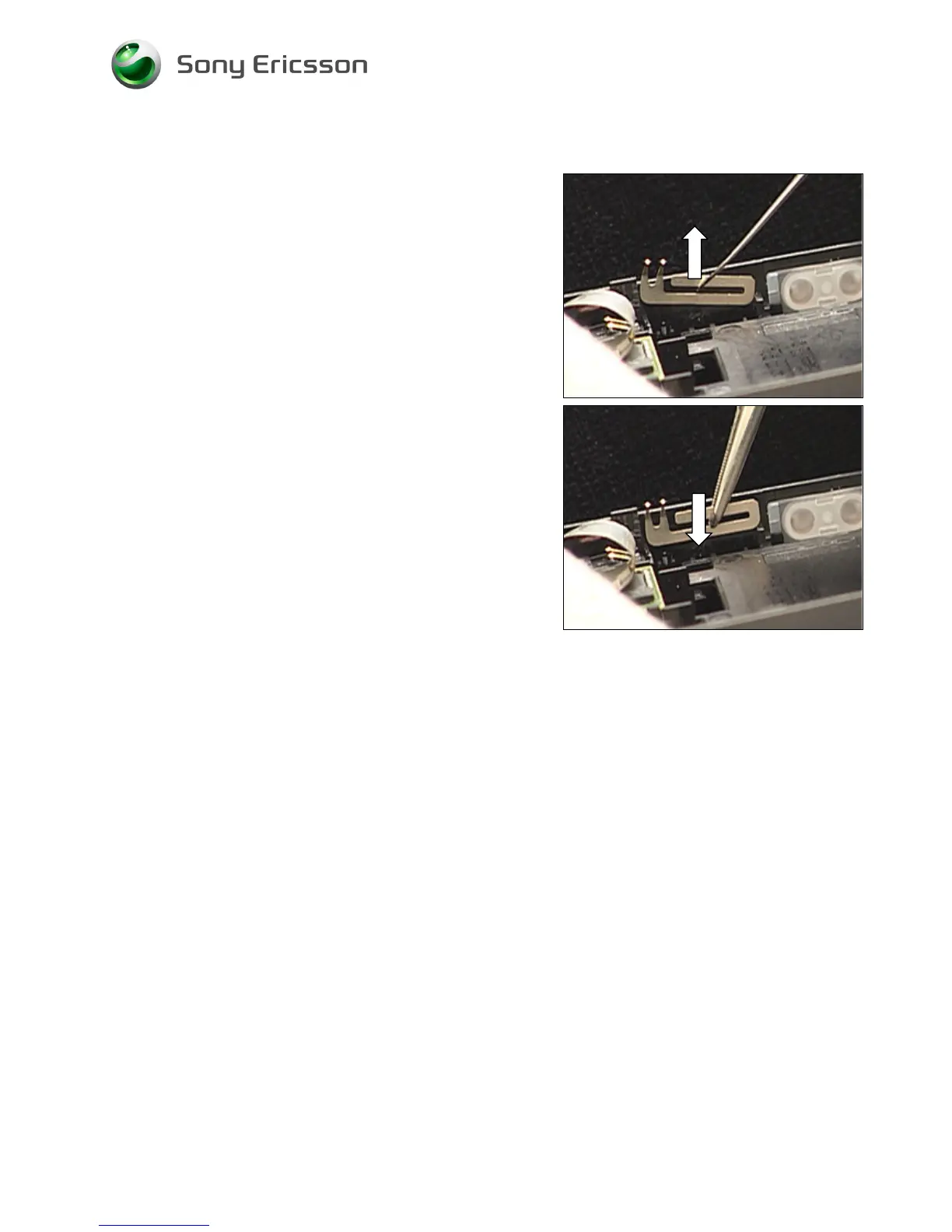

Slide the bluetooth antenna upwards with a dentist hook to
release it and remove it with the tweezers.
Install the bluetooth antenna by using the tweezers to put it
into its slot.
Follow the 4.1.1 – 4.1.7 Reassembly instructions!
