3.20 System Connector
Follow the 2.1.1 – 2.1.7 Disassembly instructions!

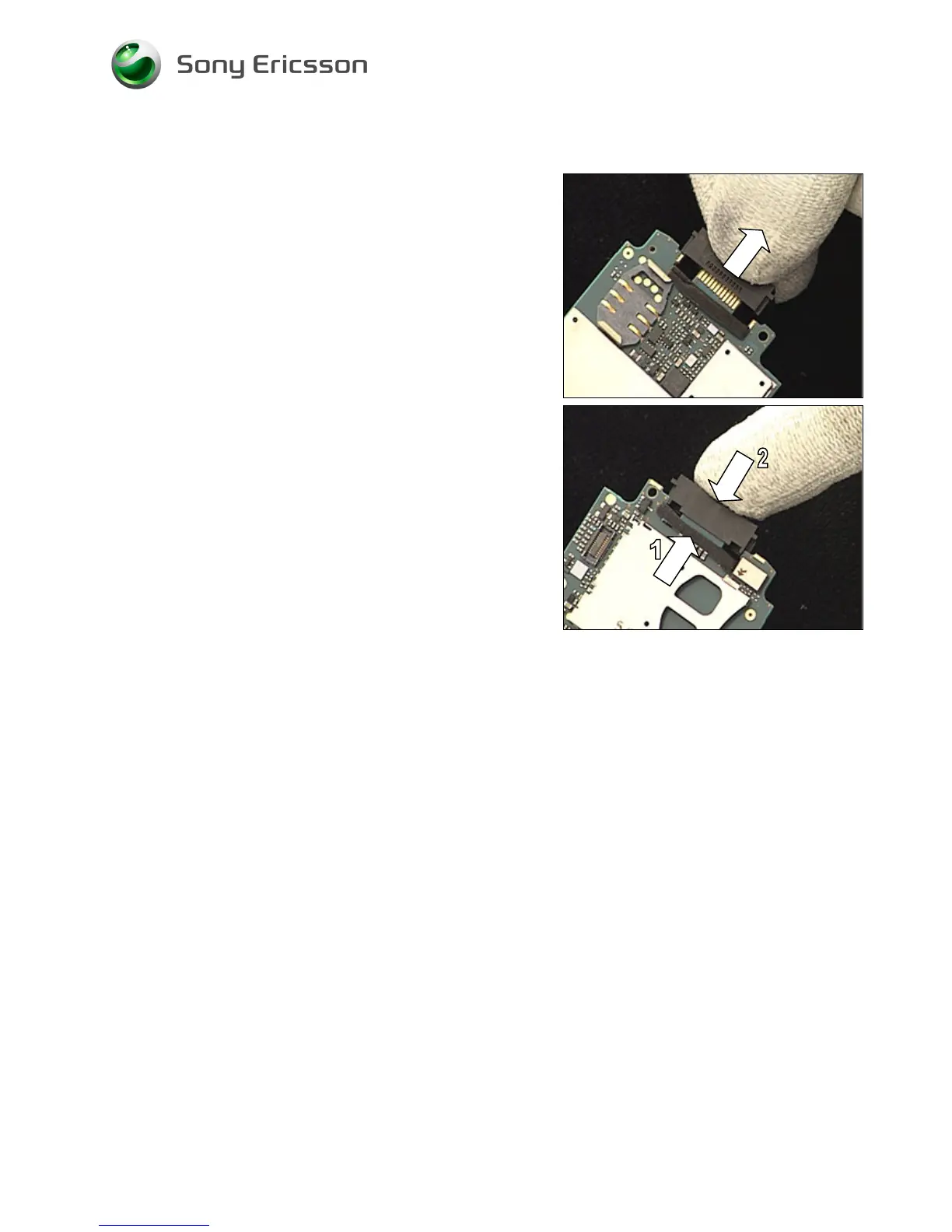

Pull the system connector from the PBA.
CHECK THAT THE GASKET (1) IS MOUNTED ON THE PBA!
I
F NOT, INSTALL A GASKET AS DESCRIBED IN 3.20!
Push (2) the system connector onto the PBA.
Follow the 4.1.1 – 4.1.7 Reassembly instructions!
