Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
23(53)
3.11 Vibrator
Follow the 2.1.1 – 2.1.7 Disassembly instructions!

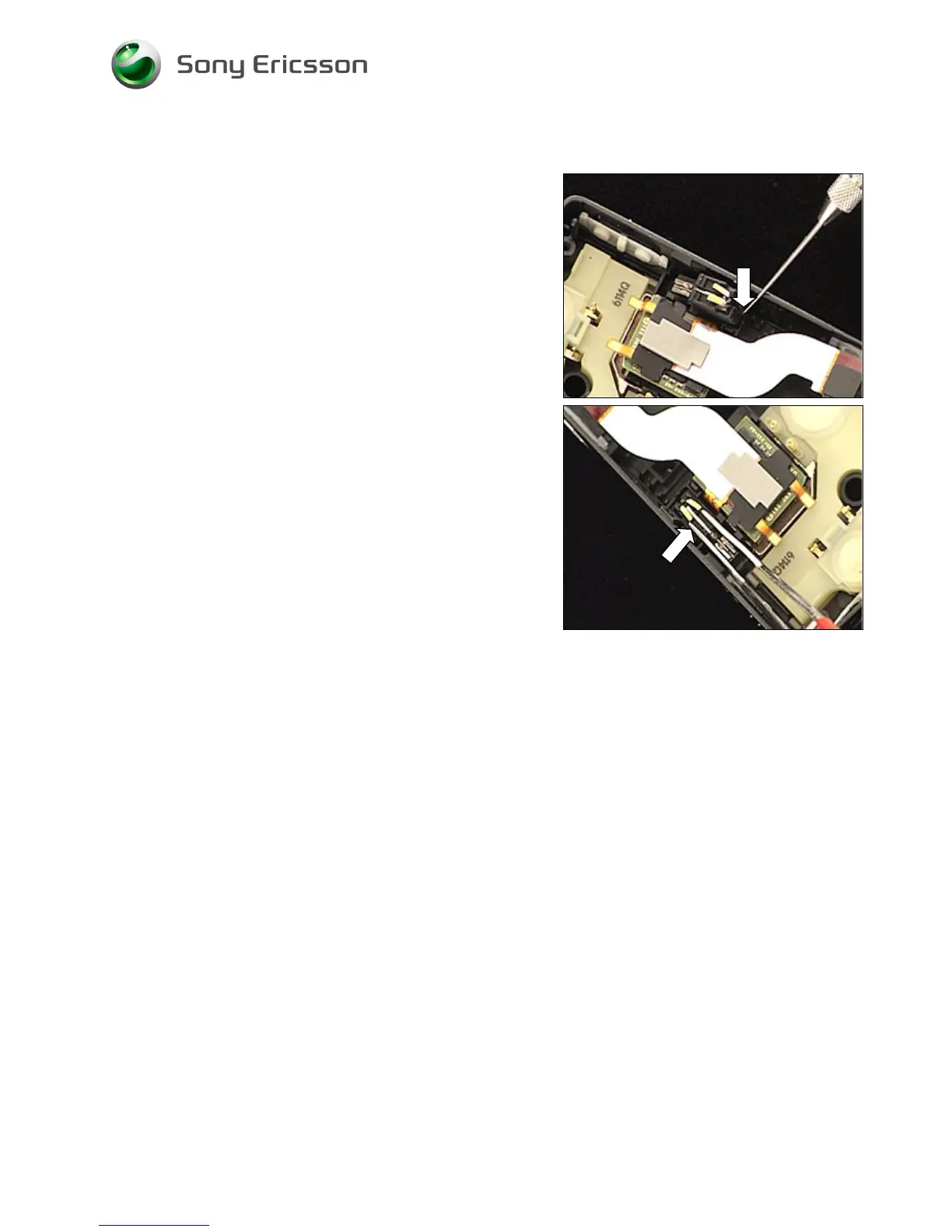

Use the dentist hook to raise the vibrator out of its cavity
and then remove it with the tweezers.
Use the tweezers to place the vibrator in its proper position
and press gently on the housing, without touching the
contacts, until it reaches the bottom of the cavity.
Follow the 4.1.1 – 4.1.7 Reassembly instructions!
