Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
38(53)
3.26 Ground Springs
Follow the 2.1.1 – 2.1.5 Disassembly instructions!
Separate the key foil from the plastic carrier as described in
section 3.24!
The plastic carrier has got two ground springs.
Remove the ground springs with the tweezers and your
fingers.

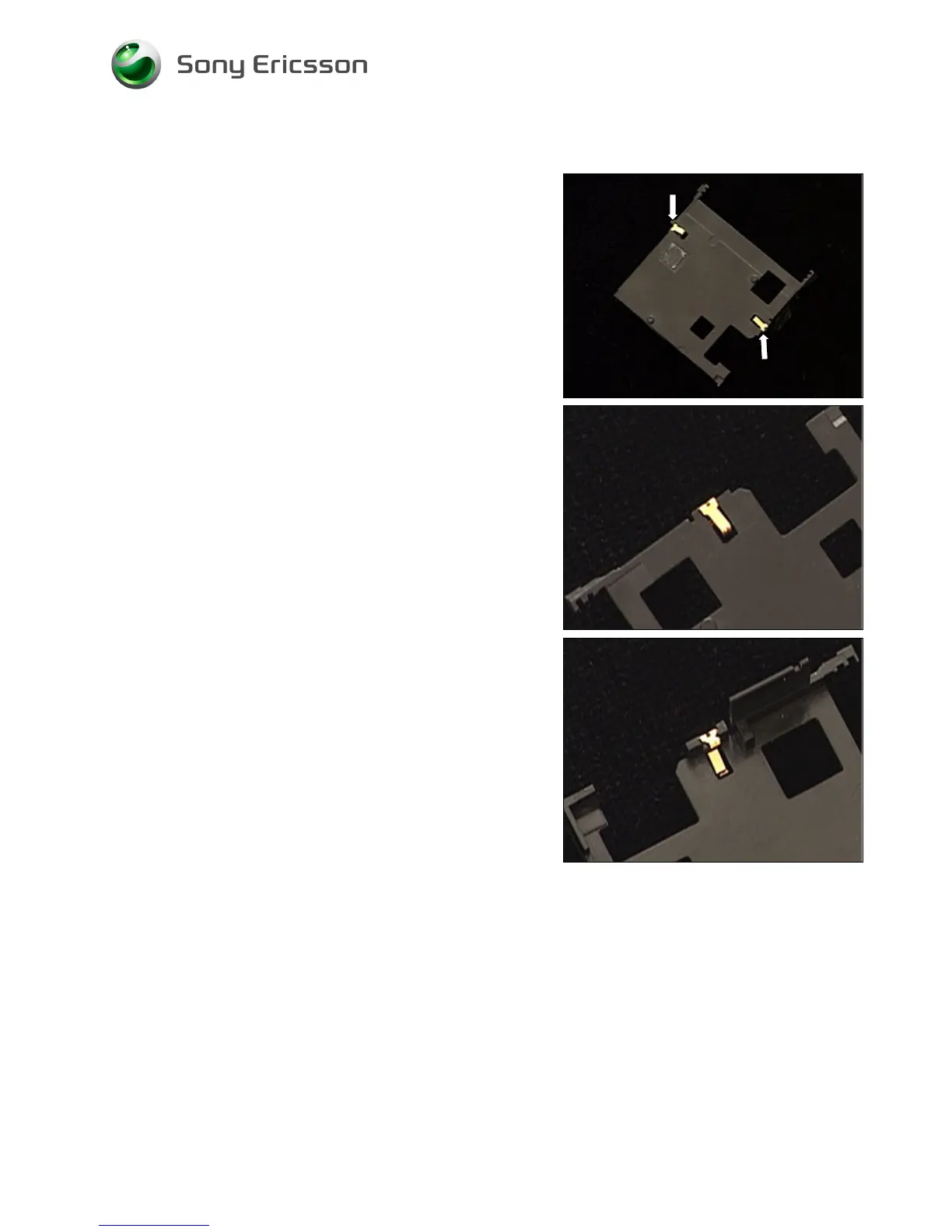

Install the new ground springs as shown in picture using the
tweezers and your fingers.
Reassemble the plastic carrier and key foil as described in
section 3.24!
Follow the 4.1.4 – 4.1.7 Reassembly instructions!
