Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
36(53)
3.24 Camera Flex Pad (upper) & Camera BTB Tape
Follow the 2.1.1 – 2.1.7 Disassembly instructions!

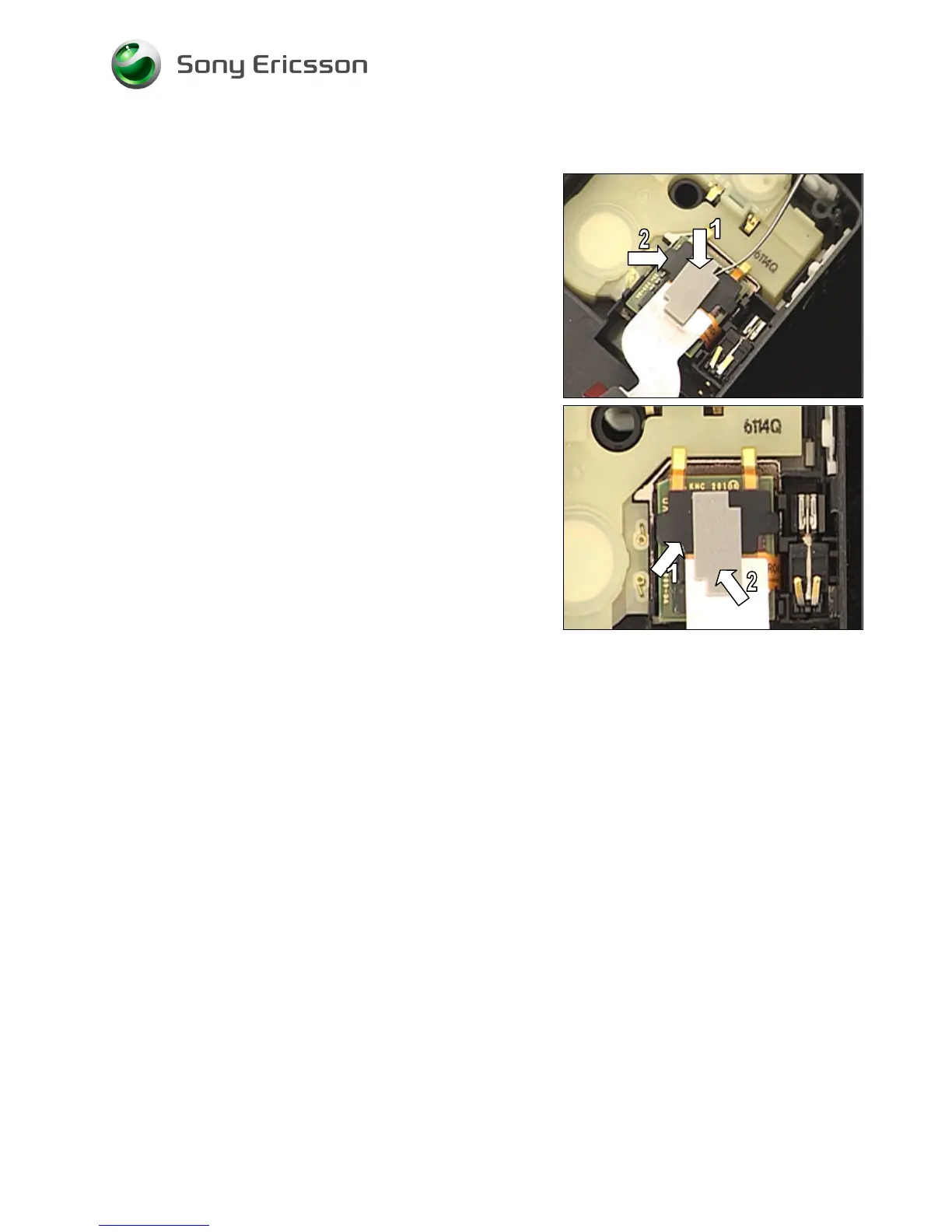

Remove the pad (1) and the tape (2) with the dentist hook.
C
LEAN THE SURFACE WITH ISOPROPYL ALCOHOL!
Attach the new tape (1) and then the new pad (2) with the
tweezers in the positions shown in the picture.
Follow the 4.1.1 – 4.1.7 Reassembly instructions!
To Next Page
