Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
9(53)

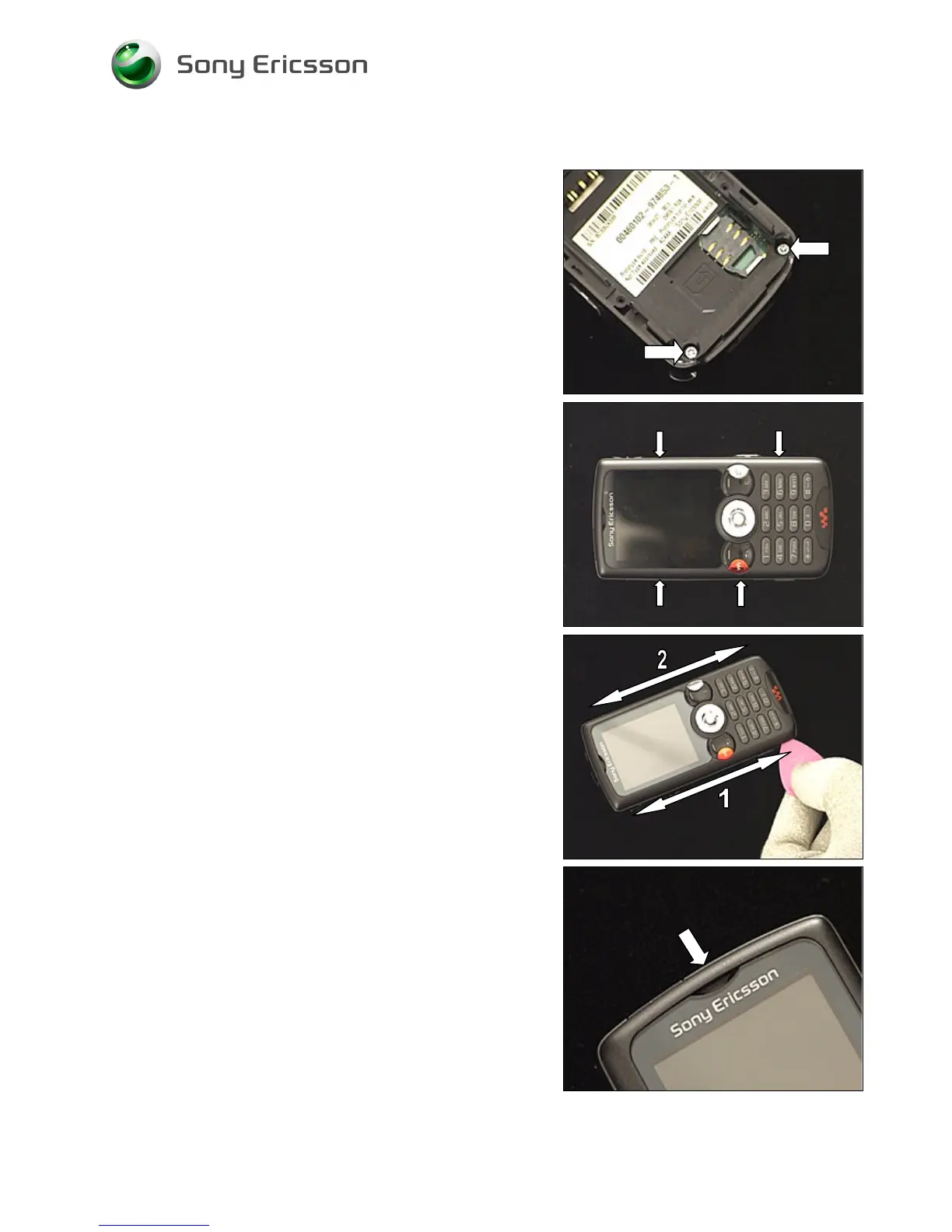

2.1.3 Front
Remove the two screws by using torx bit no. 6 (T6).
REMOVED SCREWS CANNOT BE REUSED!
BE MOST CAREFUL WHEN SLIDING THE GUITAR PICK WHERE
THE FRAME HOOKS SECURE THE FRONT
!
Insert the guitar pick as shown here and gently slide it along
the side (1) until that side of the front is released.
Then do the corresponding at the opposite side (2).
WHEN SEPARATING THE FRONT FROM THE FRAME YOU HAVE
TO BE MOST CAREFUL NOT TO DAMAGE THESE PARTS AND IN
PARTICULAR AVOID DAMAGE TO THE FRONT CAUSED BY THE
INSIDE TOP HOOK OF THE FRAME
!
