Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
51(53)

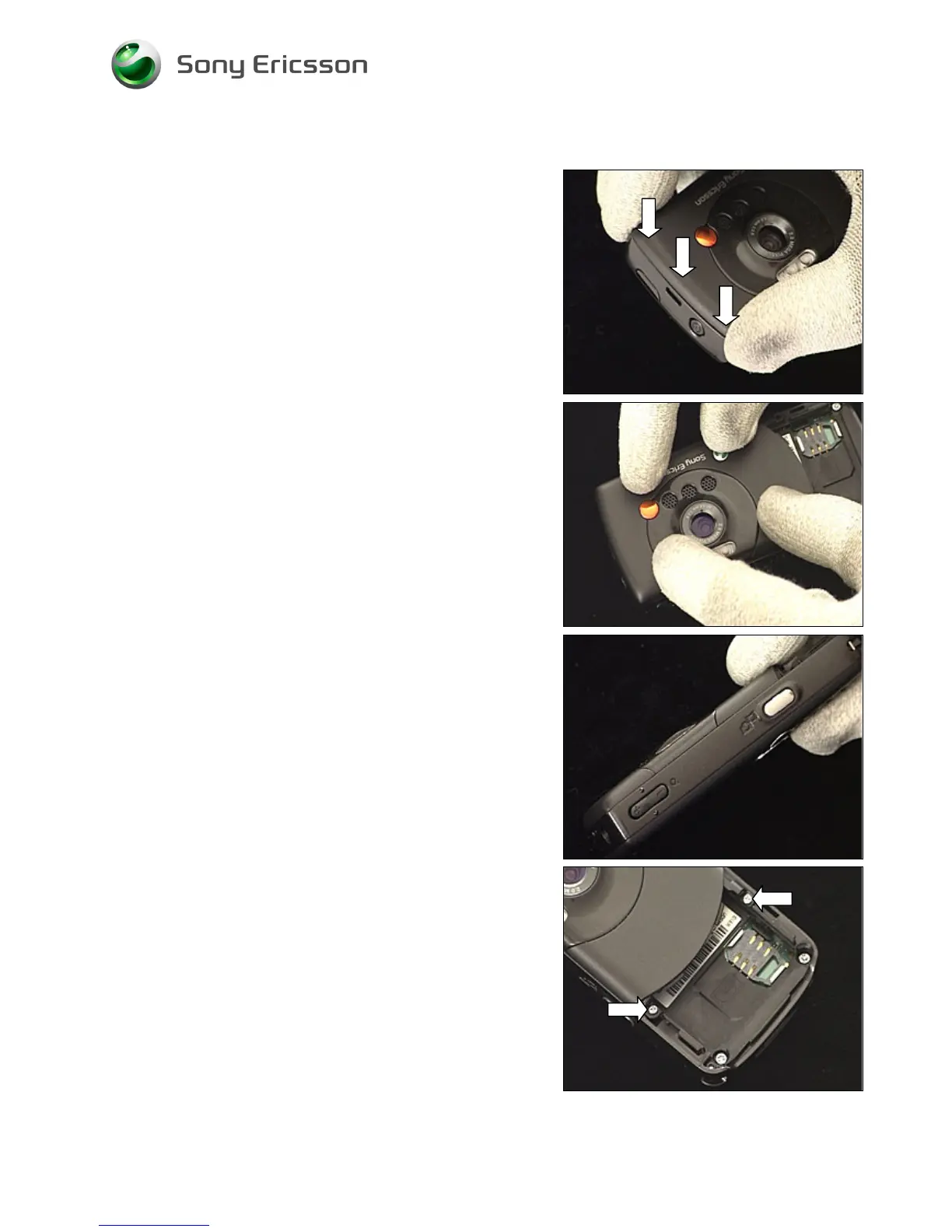

4.1.6 Antenna Cover
Press the antenna cover onto the frame at the top …
and press like this to snap the sides together.
Check that there no gaps along the sides!
If this is the case, gently press the two halves together with
your fingers!
Apply 9 Ncm (± 2 Ncm) torque to tighten two new screws
by using the Phillips bit.
