Sony Ericsson W810 - Plastic Carrier & Key Foil Assy

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
37(53)
3.25 Plastic Carrier & Key Foil ass’y
Follow the 2.1.1 – 2.1.5 Disassembly instructions!

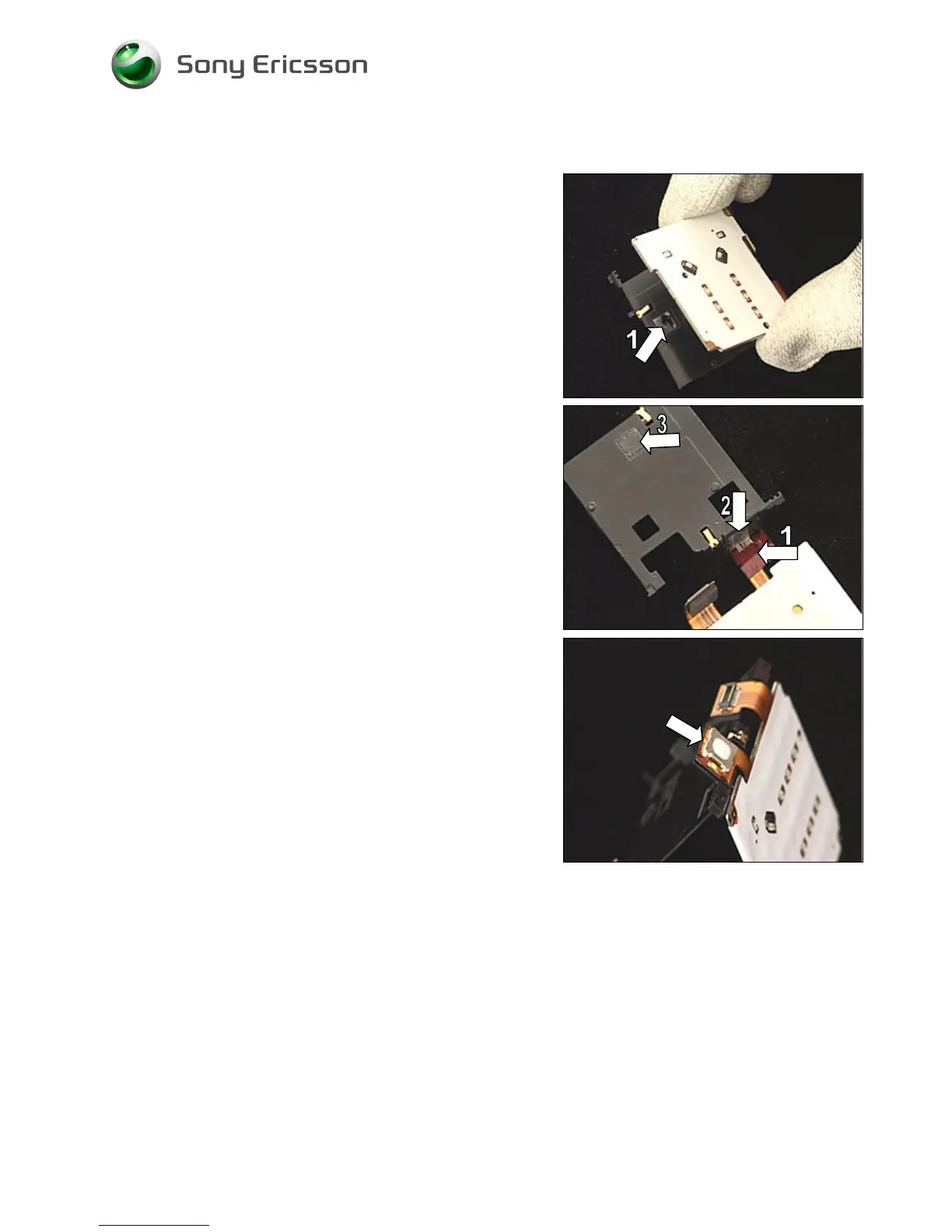

Separate the key foil from the plastic carrier by loosening it
from the adhesive (1).
Loosen the key foil switch (1) from the plastic carrier
adhesive (2).
Prepare the new plastic carrier and/or the new key foil.
Attach two new adhesives (2, 3) to the plastic carrier.
Attach the key foil switch to the adhesive of the plastic
carrier.
Continue the reassembly described in section 4.1.3!
Follow the 4.1.4 – 4.1.7 Reassembly instructions!
