Working Instruction, Mechanical
3/000 21-1/FEA 209 544/108 B
© Sony Ericsson Mobile Communications AB
48(53)
Plastic Carrier & Key Foil ass’y continued

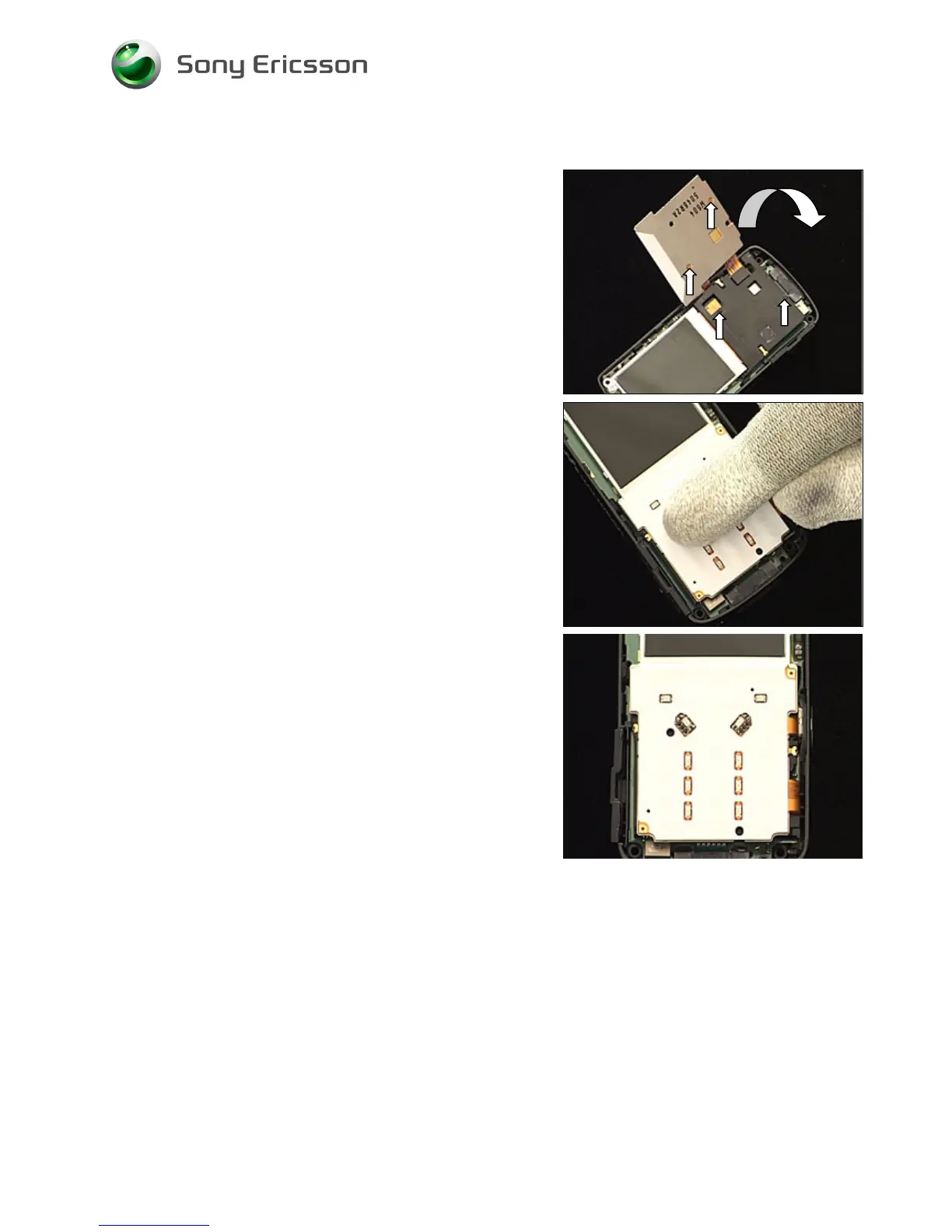

Gently turn the key foil on top of the plastic carrier so that
the plastic carrier’s guiding pins will fit into the key foil’s
guiding holes.
Press on the key foil to make it adhere to the plastic carrier.
The plastic carrier & key foil in a properly mounted position.
