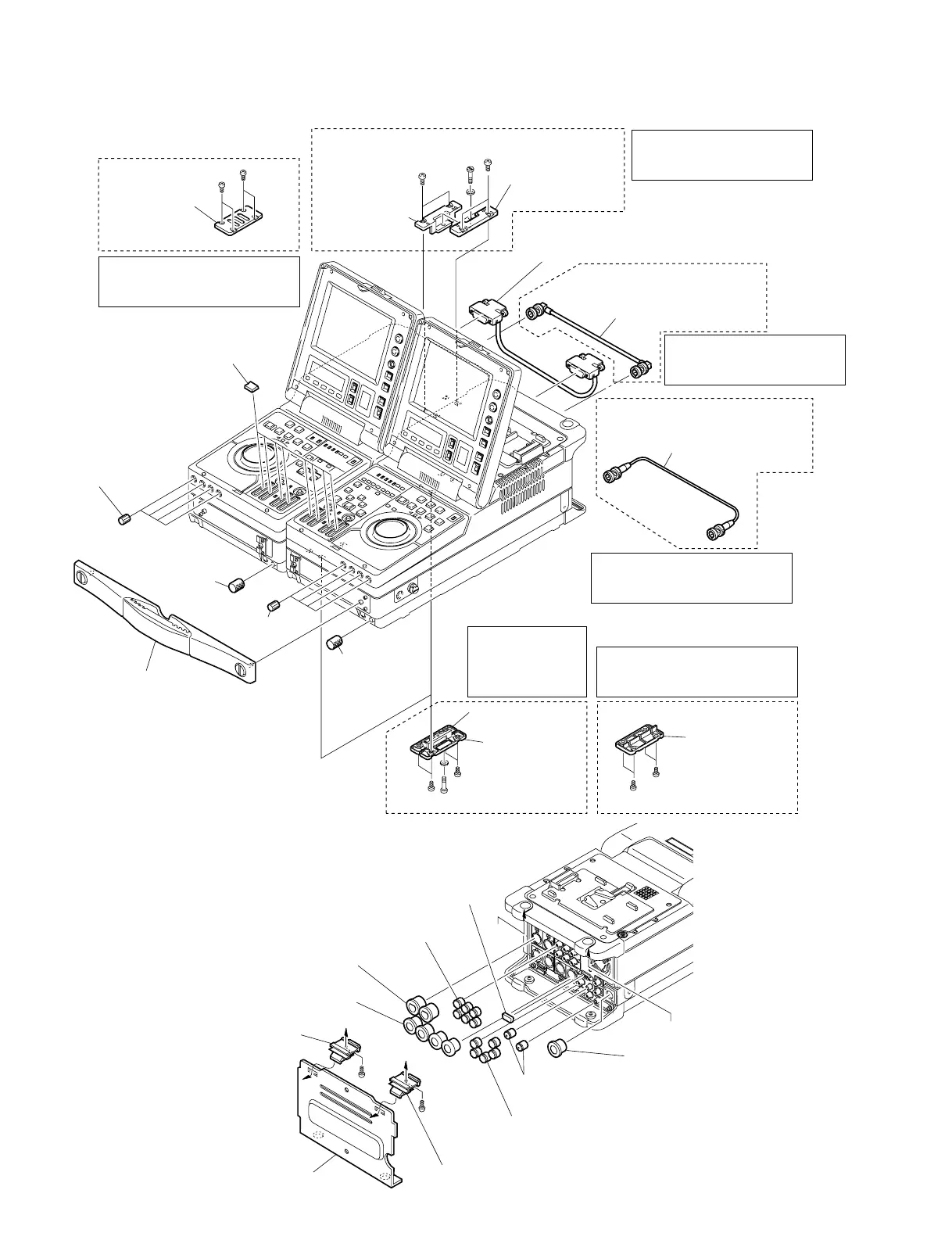

Sony DNW-A220 - Exploded Views

5-2 DNW-A220
DNW-A220P
M
M
CAP, XLR(M)
3-613-704-01 (O)
COVER , REAR PANEL
3-617-755-01 (O)
HOLDER , REAR COVER
3-617-756-01 (O)
HOLDER , REAR COVER
3-617-756-01 (O)
CAP, XLR(M)
3-613-704-01 (O)
CAP, BNC
3-604-795-01 (S)
*1
*1
*2
*2
CAP, BNC
3-604-795-01 (S)
CAP, DUST
3-673-948-11 (O)
CAP, XLR(F)
3-613-703-01 (O)
CAP, DC OUT
3-609-573-01 (S)
F
M
PLATE, JOINT A
3-622-664-02 (O)
PLATE, JOINT B
3-622-665-02 (O)
CORD WITH CONNECTOR
(REMOTE CONTROL)
1-783-089-12 (S)
CORD WITH CONNECTOR
(BNC COAXIAL)
1-791-456-11 (S)
KNOB ASSY,
CONTROL
X-3167-825-1 (S)
P2.6 x 8
B3 x 8
B3 x 8
B3 x 8
B3 x 8
Screw (M4 x 20)
3-729-091-31 (S)
B3 x 8
KNOB ASSY,
CONTROL
X-3167-825-1 (S)
HANDLE ASSY
A-8278-740-C (S)
KNOB, VR
3-611-481-03 (O)
KNOB, VR
3-611-481-03 (O)
KNOB, SLIDE (VOL)
3-611-339-01 (O)
CORD WITH CONNECTOR
(BNC COAXIAL)
1-783-090-11 (S)
PLATE, JOINT
3-611-558-02 (S)
PLATE, JOINT A
3-622-664-02 (O)
PLATE, JOINT B
3-622-665-02 (O)
SCREW(M4 x 20)
3-729-091-31 (S)
DNW-A220 (SY) S/N 31001 through 31330
DNW-A220P (SY) S/N 31001 through 31716
51001through 51330
51001 through 51716
DNW-A220 (SY) S/N 31331 and higher
DNW-A220P (SY) S/N 31717 and higher
51331 and higher
51717 and higher
DNW-A220 (SY) S/N 31331 and higher
DNW-A220P (SY) S/N 31717 and higher
51331 and higher
51717 and higher
DNW-A220 (SY) S/N 31001 through 31330
DNW-A220P (SY) S/N 31001 through 31716
51001through 51330
51001 through 51716
DNW-A220 (SY) S/N 31001 through 31330
DNW-A220P (SY) S/N 31001 through 31716
51001through 51330
51001 through 51716
DNW-A220 (SY)
S/N 31331 and higher
DNW-A220P (SY)
S/N 31717 and higher
51331 and higher
51717 and higher
F
F
PLATE, JOINT
3-611-558-02 (S)
B3 x 8
B3 x 8
M
M
5-2. Exploded Views
5-2. Exploded Views
Ex.) PLATE, JOINT ← Description
3-611-558-01 (o) ← Part No. (Supply code)
