1-33
DNW-A220
DNW-A220P
1-10. Description on Internal Indicators
SDI-23 Board
n
The indicators D302 to D305 function properly when the received signal conforms to the EDH
*
(with
D301 lit).
* EDH : Error Detection and Handling
Ref.No. Indictor name Color Description Normal state
D300 SDI INPUT EXIT Green Lit when detecting the SDI format signal input Lit
at SDI IN connector
D301 RX EDH VALIDITY Green Lit when the received signal at SDI IN connector Lit
conforms to the EDH
D302 RX EDH OTHER Red Lit when another ancillary data exists in the EDH portion Dark
ANC ERROR of the received signal at SDI IN connector
D303 RX EDH ACTIVE Red Lit when an active picture EDH error is detected from the Dark
PICTURE ERROR received signal at SDI IN connector
D304 RX EDH FULL Red Lit when a full-field EDH error is detected from the Dark
FIELD ERROR received signal at SDI IN connector
D305 RX EDH ANCILLARY Red Lit when an ancillary data EDH error is detected from Dark
DATA ERROR the received signal at SDI IN connector
D800 SDI TRS NO ERROR Green Lit when the SDI format signal is normally received Lit
at SDI IN connector
D801 VCO ADJ OF Green Lit when EVR (electronic volume) data comes near its –––
MAINTENANCE proper value during VCO free-run adjustment in the
maintenance mode

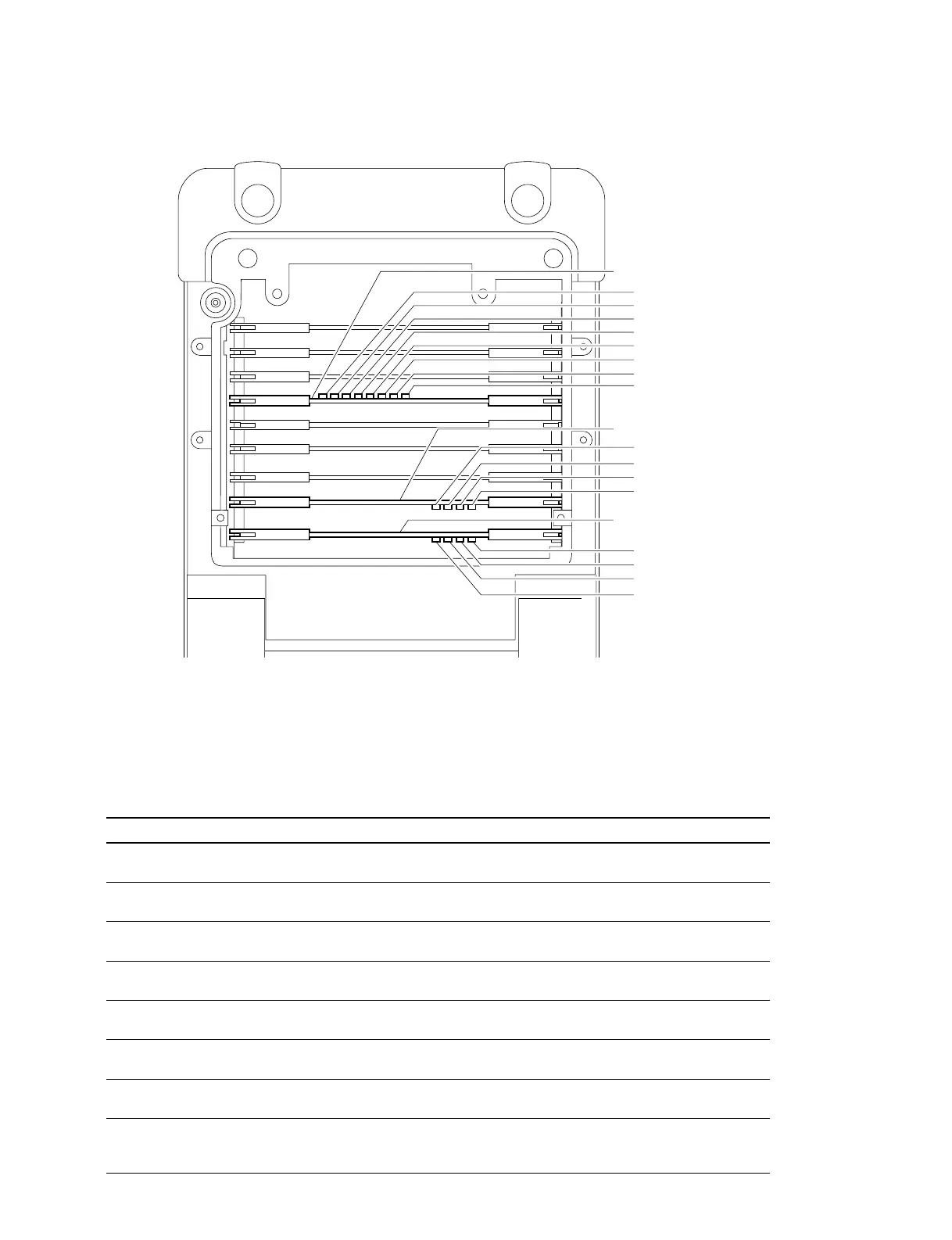

1-10. Description on Internal Indicators
D201
D300
D301
D302
D303
D304
D305
D800
D801
D201
D202
D202
D203
D203
D204
D204
SY-260 board
SY-259/259A board
SDI-23 board
To Next Page
