Sony DNW-A220 - Settings for Internal Switches and Slit Lands

1-26
DNW-A220
DNW-A220P
1-9. Settings for Internal Switches/Slit Lands
AU-249 Board
Settings for Audio Input Headroom CH1, CH2 (for slit lands)
Input headroom ( ) : Factory setting
Channel Ref.No.(Indication) (20 dB) 18 dB 16 dB
CH1 SL101 (18 dB) Open Short Open
SL102 (16 dB) Open Open Short
CH2 SL201 (18 dB) Open Short Open
SL202 (16 dB) Open Open Short
Settings for Audio Output Headroom CH1/CH3, CH2/CH4 (for slit lands)
n
Selections of CH1/CH3 and CH2/CH4 are made using the sub LCD menu.
Output headroom ( ) : Factory setting
Channel Ref.No.(Indication) (20 dB) 18 dB 16 dB
CH1/CH3 SL301 (18 dB) Open Short Open
SL302 (16 dB) Open Open Short
CH2/CH4 SL401 (18 dB) Open Short Open
SL402 (16 dB) Open Open Short
1-9. Settings for Internal Switches/Slit Lands
SL201
SL202
SL101
SL102
A
2
3
4
5
1
BCDEFGH
SL502
SL501
SL602
SL601
SL302
SL301
SL402
SL401

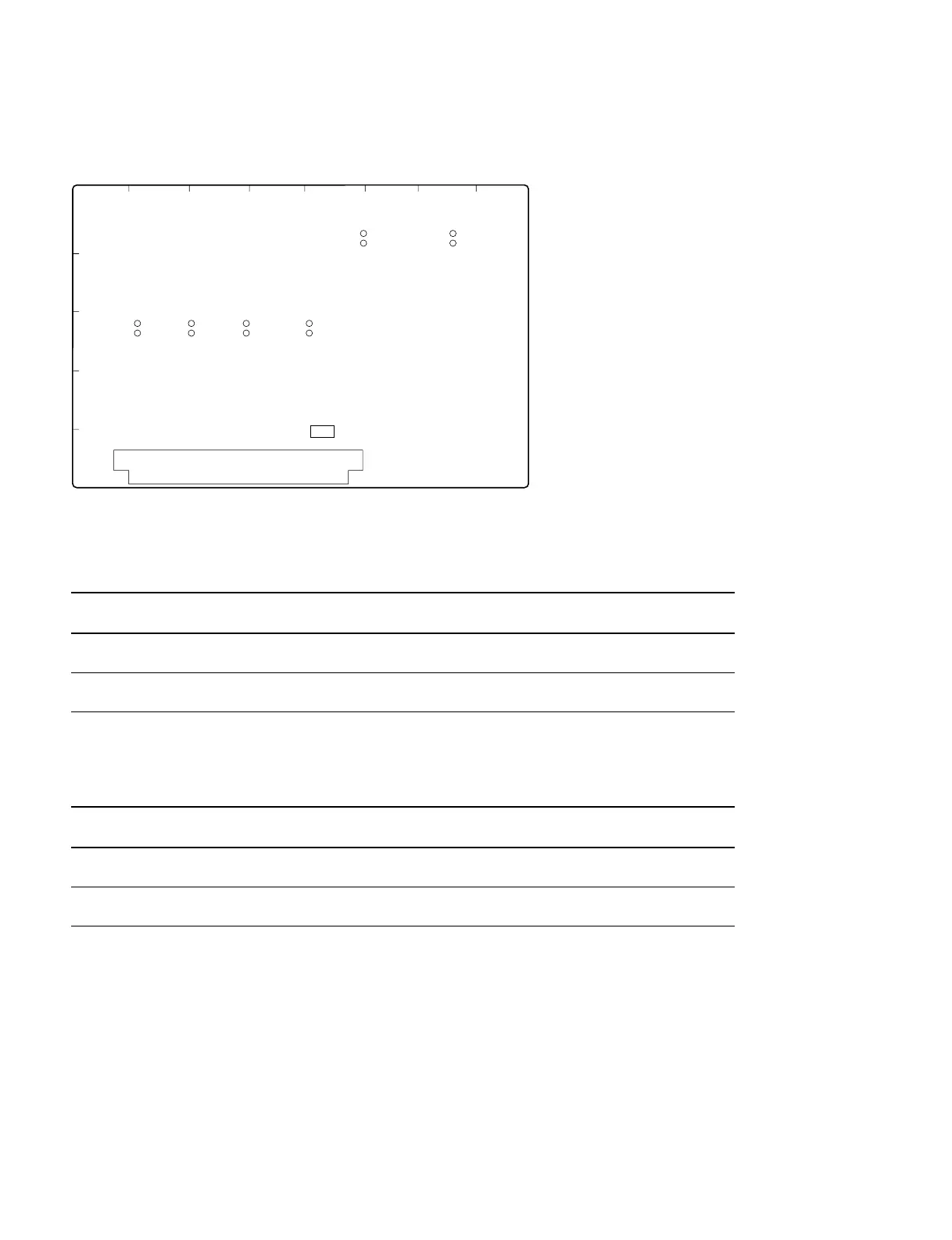

AU-249 Board (A Side)
1 2 3 4
S1
ON
