Sony DSC-S70 - Battery Lid Assembly and Speaker; Control Switch Block and Front Panel

2-3

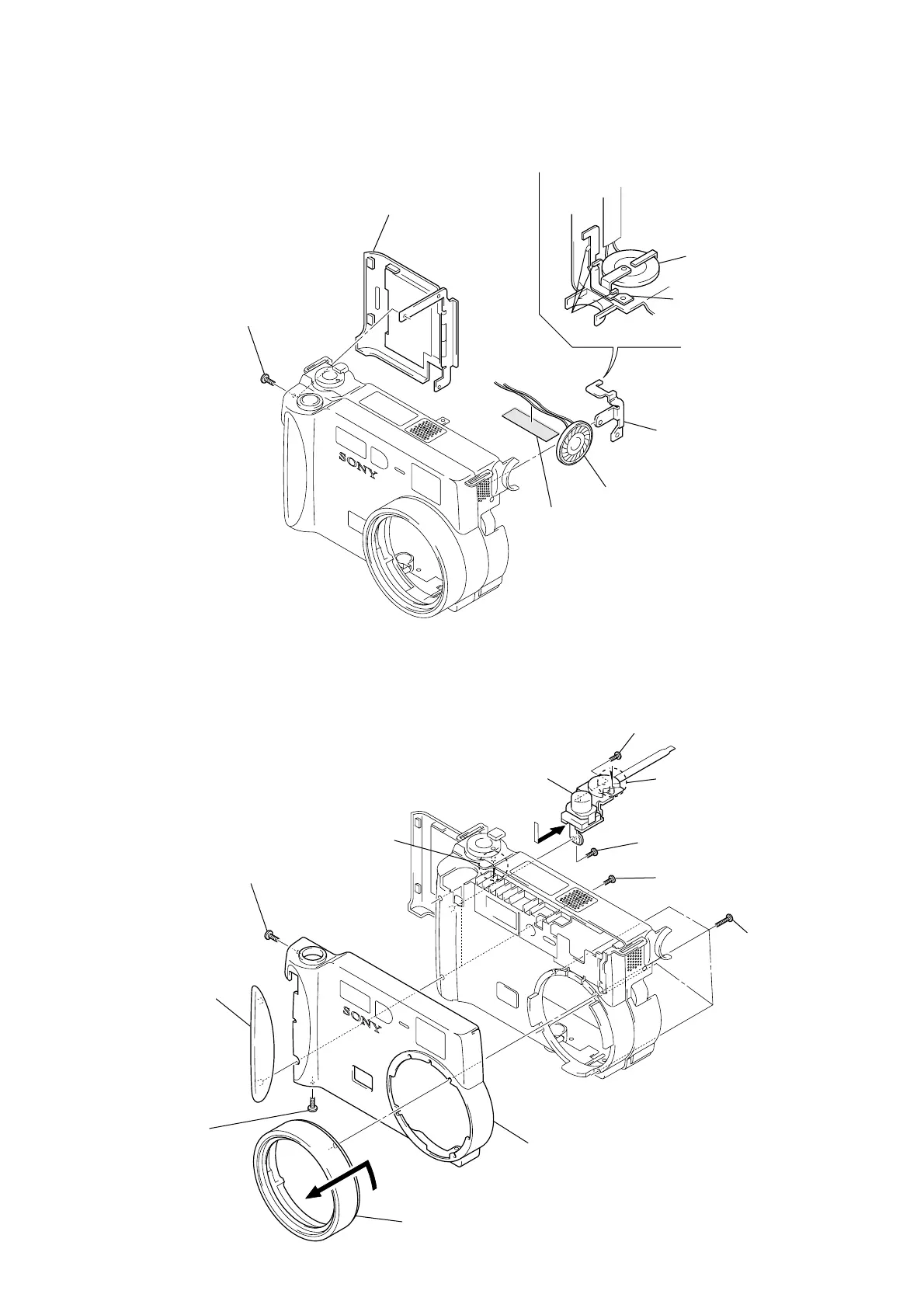

2-4. CONTROL SWITCH BLOCK AND FRONT PANEL
9 Screw
(2 × 4)
5 Grip
8 Screw
(2 × 4)
7 Remove the ornamental ring
in the direction of arrow B.
B
0 Front panel
6 Four screws
(1.7 × 7)
4 Two screws
(1.7 × 4)
2 Screw (1.7 × 4)
1 Screw (1.7 × 4)
Note: In mounting the control
switch block (mode SW),
align the mode SW knob
with the sleeve knob.
3 Remove the control
switch block (mode SW)
in the direction of arrow A.
Sleeve
A
2-3. BATTERY LID ASSEMBLY AND SPEAKER
1 Screw
(2 × 4)
2 Battery lid
assembly
4 Speaker holder
5 Speaker
3 Tape
Note: In mounting the speaker holder,
fix with three claws.
Speaker
Speaker
holder
Claws
