Sony DSC-S70 - Control Switch Block, PD-128 Board and Indicator Module

2-6

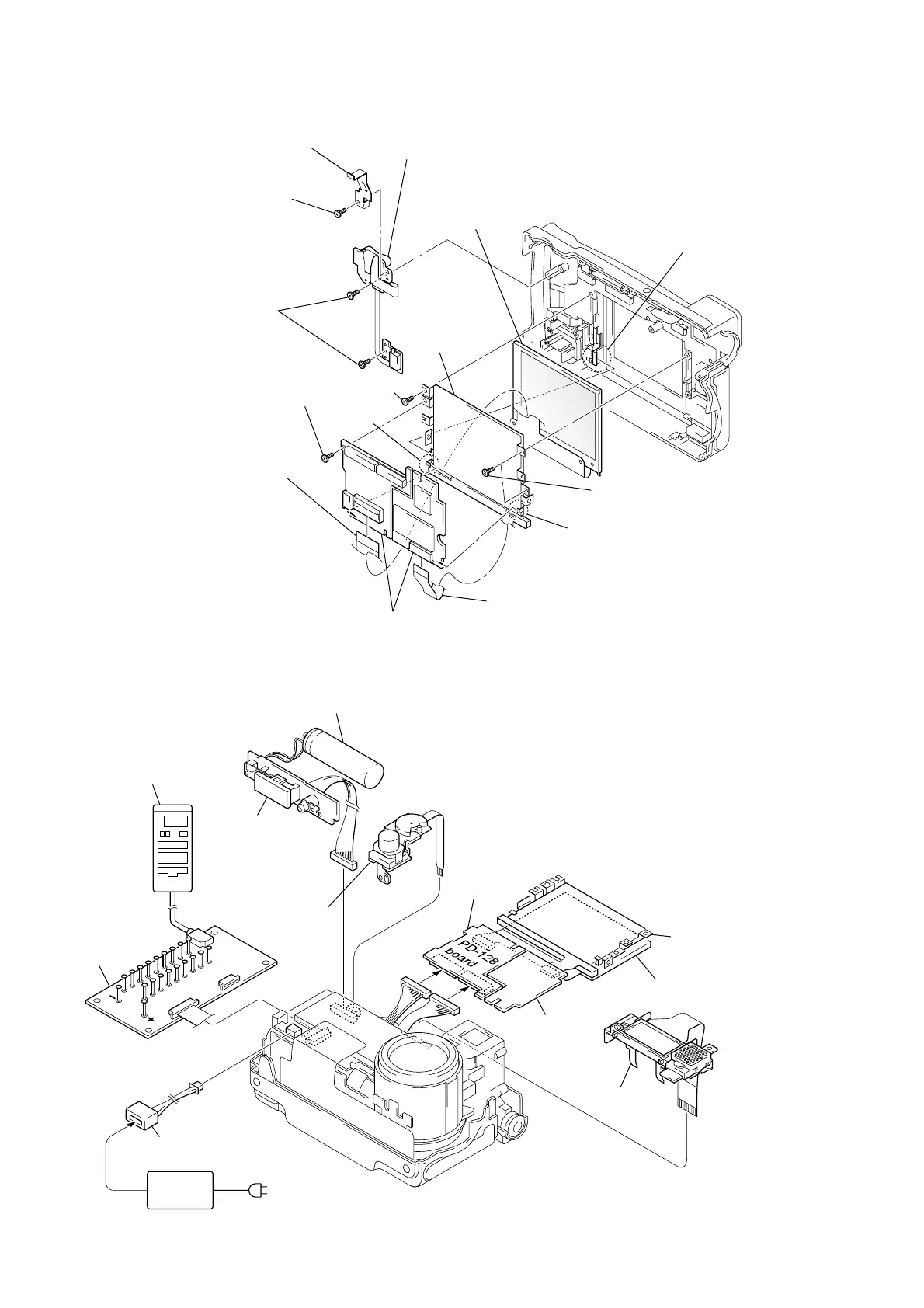

[SERVICE POSITION]
Note 1: Don't use the 12 pin flexible board of CPC-9 jig.
It causes damage to the unit.
Note 2: The old CPC-9 jig (Parts code: J-6082-393-B) Cannot be used,
because it cannot operate the adjustment remote commander.
Note 3: Do not touch the capacitor terminals.
You could get an electric shock.
Control switch
block (Mode SW)
Flash unit
(Note 3)
Capacitor
PD-128
board
Cold cathode
fluorescent
tube
Indicator module
Inverter
transformer
unit
LCD holder
block
Adjustment remote
commander
CPC-9 jig
(J-6082-393-C)
(Note 1, 2)
DC-IN connector
AC IN
AC power
adaptor
2-8. CONTROL SWITCH BLOCK, PD-128 BOARD AND INDICATOR MODULE
5 Flexible
board
(CN901)
7 Screw
(1.7 × 3)
8 Claw
qs Screw
(1.7 × 4)
qf Cold cathode
fluorescent
tube
qg Indicator module
qd Claw
qa Two screws
(1.7 × 4)
9 Claw
6 Flexible Board
(CN851)
0 PD-128 board
and inverter
transformer unit
4 Control switch block
(zoom/power SW)
1 Two screws
(1.7 × 4)
2 Screw
(1.7 × 4)
3 Hook
