Sony DSC-S70 - Lens Block Assembly

6-4
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

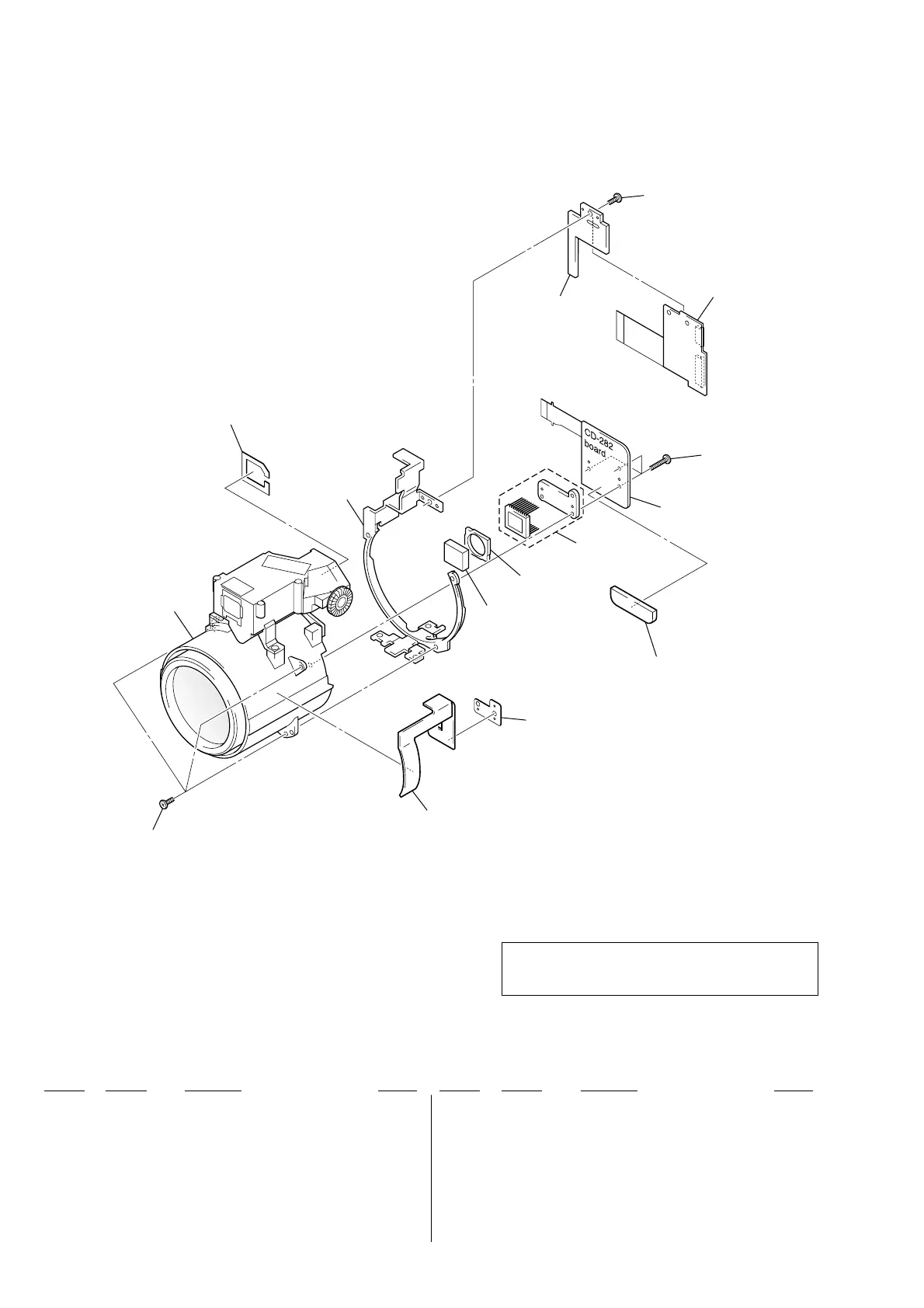

6-1-4. LENS BLOCK ASSEMBLY
151
152
153
162
154
155
156
157
158
160
164
161
163
165
IC401
151 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
152 A-7031-106-A LENS ASSY (VCL-7003XA)
153 3-060-311-01 FRAME, LENS
* 154 3-061-362-01 HOLDER, FP
155 3-054-938-01 SCREW, STEP
156 1-677-875-21 FP-021 FLEXIBLE BOARD
157 3-318-203-11 SCREW (B1.7X6), TAPPING
(Note) Be sure to read “Precuations for Replcement of
CCD Imager” on page 4-8 when changing
the CCD imager
158 A-7074-362-A CD-282 BOARD, COMPLETE
160 3-060-000-01 RUBBER (N), SEAL
161 1-758-437-11 FILTER BLOCK, OPTICAL
* 162 3-061-732-01 CUSHION (EYEPIECE WINDOW)
* 163 3-061-736-01 HEAT SINK, CCD
* 164 3-062-032-01 CUSHION, LENS
* 165 3-062-493-01 SHEET, CD
IC401 A-7031-084-A CCD BLOCK ASSY (CCD IMAGER)
