Sony DSC-S70 - Board and DD-141 Board; Service Position

2-5

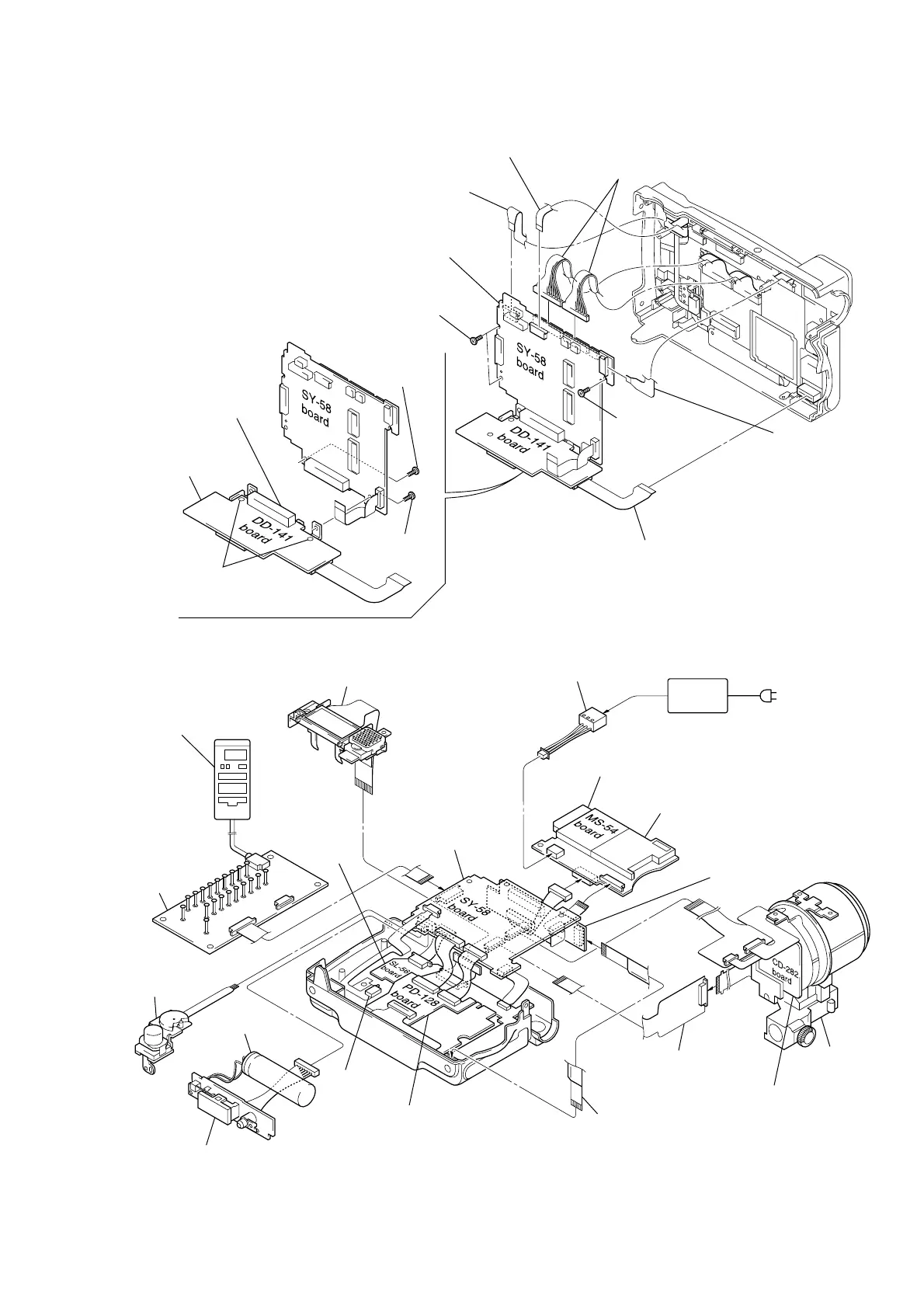

2-7. SY-58 BOARD AND DD-141 BOARD
qs DD-141 board
qa Connector
(CN711)
9 Screw
(1.7 × 3)
0 Special head
screw (M1.7)
5 Two screws
(1.7 × 4)
6 SY-58 and
DD-141 board
7 Flexible board
(CN708)
3 FP-027 flexible board
(CN705)
8 Two connectors
(CN701, 702)
2 FP-029 flexible
board (CN703)
4 Screw
(1.7 × 4)
1 FP-028 flexible board
(CN251)
Note: Do not remove
these two screws.
[SERVICE POSITION]
Note 1: Don't use the 12 pin flexible board of CPC-9 jig.
It causes damage to the unit.
Note 2: The old CPC-9 jig (Parts code: J-6082-393-B) Cannot be used,
because it cannot operate the adjustment remote commander.
Note 3: Do not touch the capacitor terminals.
You could get an electric shock.
PD-128
board
Power
SW
Flash unit
(Note 3)
Capacitor
Control switch
block (Mode SW)
CPC-9 jig
(J-6082-393-C)
(Note 1, 2)
Adjustment remote
commander
LCD holder block
SY-58
board
SL-56
board
DC-IN connector
AC IN
AC power
adaptor
Memory stick
MS-54 board
DD-141 board
Lens
block
assembly
CD-282
board
Extension cable
(J-6082-423-A)
Extension cable
(J-6082-398-A) (L=200 mm)
(J-6082-357-A) (L=100 mm)
