Sony DSC-S70 - Front Cabinet Section

6-2

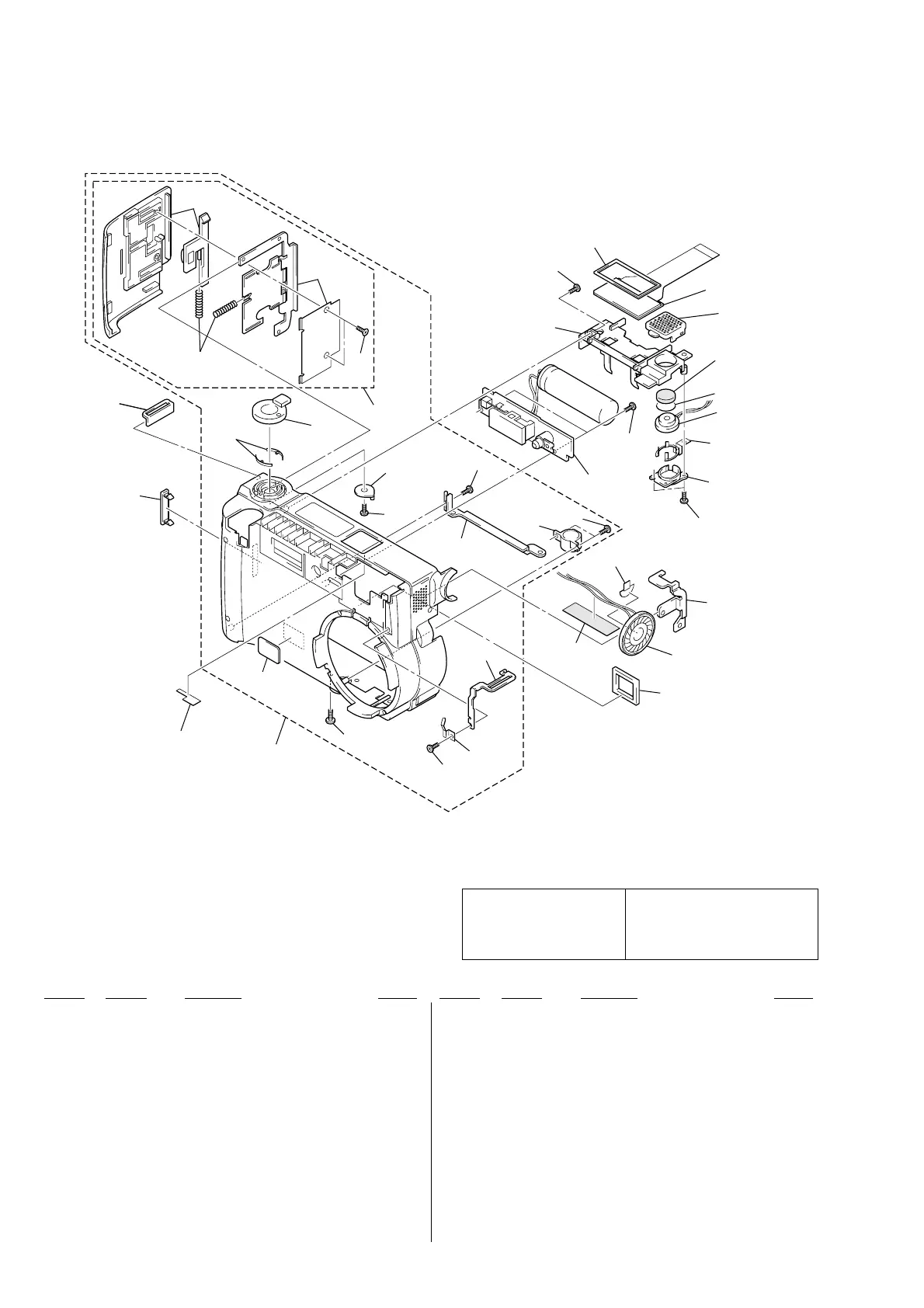

6-1-2. FRONT CABINET SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
5353
not
supplied
52
54
55
56
56
57
58
57
59
57
71
60
51
70
68
73
69
57
67
66
65
72
64
63
57
62
57
61
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
SP901
MIC901
LCD902
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
51 X-3950-544-2 CABINET (FRONT) ASSY
52 3-060-251-01 LID, CPC
53 3-060-267-01 BRACKET (L), STRAP
54 3-060-275-01 KNOB, MODE
55 X-3950-546-1 LID ASSY, BATTERY
56 3-318-382-01 SCREW (1.7X3), TAPPING
57 3-914-366-01 SCREW (DIA. 1.7X4), PRECISION
58 3-060-274-01 SCREW, TRIPOD
59 3-060-279-01 BRACKET (R), STRAP
60 3-968-729-71 SCREW (M2), LOCK ACE, P2
0 61 1-476-005-11 FLASH UNIT
62 X-3950-545-1 HOLDER ASSY, LCD
63 3-060-269-01 CUSHION (INDICATION WINDOW)
64 3-060-268-01 GRILLE, MICROPHONE
* 65 3-055-971-11 CUSHION, MICROPHONE
* 66 3-061-237-01 PLATE, MICROPHONE GROUND
67 3-060-259-01 HOLDER, MICROPHONE
68 3-060-260-01 HOLDER, SPEAKER
* 69 3-061-734-02 CUSHION (OVF FRONT)
* 70 3-061-735-01 SHEET (MIC), ELECTROSTATIC
* 71 3-062-239-01 PLATE (AF), GROUND
* 72 3-062-240-02 SHEET (1), SOUND ABSORPTION
* 73 3-062-689-01 SHEET, SP
LCD902 1-803-975-21 DISPLAY PANEL, LIQUID CRYSTAL
MIC901 1-542-428-11 MICROPHONE UNIT
SP901 1-505-862-31 SPEAKER (2.0 cm)
