1-1-4. Precautions
1. Setting the Switch
Unless otherwise specified, set the switches as follows and per-
form adjustments.
1. FOCUS button (SL-56 board S156) .................... MANUAL
2. PROGRAM AE button (SL-56 board S152)
...................................... AUTO (No mark indicated on LCD)
3. DISPLAY button (SL-56 board S153) ................OSD OFF
4. P. EFECT (Menu display)....................................OFF
2. Order of Adjustments
Basically carry out adjustments in the order given.
3. Subjects
1) Color bar chart (Standard picture frame).
When performing adjustments using the color bar chart, ad-
just the picture frame as shown in Fig. 5-1-6. (Standard pic-
ture frame)
2) Clear chart (Standard picture frame)
Remove the color bar chart from the pattern box and insert a
clear chart in its place. (Do not perform zoom operations dur-
ing this time)

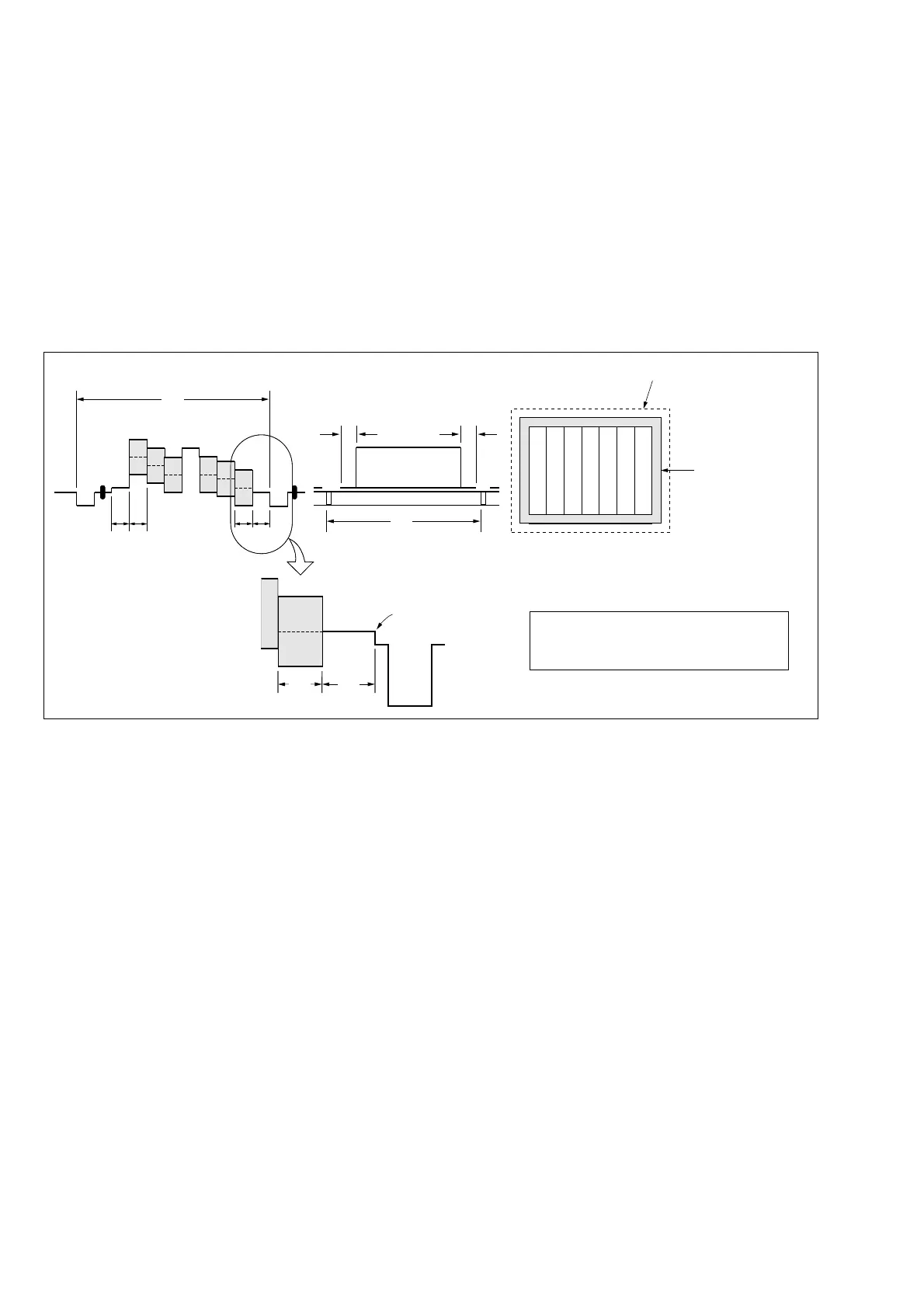

Fig. 5-1-6
H
A=B
AB B
A
Enlargement
V
C=D
Electronic beam scanning frame
Fig. b (monitor TV picture)
CRT picture frame
B
A
Difference in level
Yellow
Cyan
Green
White
Magenta
Red
Blue
Yellow
Cyan
Green
White
Magenta
Red
Blue
DC
Color bar chart (Color reproduction adjustment frame)
Adjust the camera zoom and direction to
obtain the output waveform shown in Fig a
and the monitor TV display shown in Fig. b.
5. DEMO (Menu display) ........................................ OFF
6. VIDEO OUT (Menu display) ..............................NTSC
7. WHITE BALANCE (Menu display)................... AUTO
8. EXPOSURE ......................................................... 0EV
9. FLASH LEVEL ................................................... NORMAL
