– 2 –
DSC-S70
INCORRECT CORRECT
12) Calculate D
91’, D92’, D93’ and D94’ using following equations
(decimal calculation), convert it to a hexadecimal number,
and input each adjustment address.
Address: 91 D91’ = Dref’+8
Address: 92 D92’ = Dref’+17
Address: 93 D93’ = Dref’+2C
Address: 94 D94’ = Dref’+37
Note: After setting each data, be sure to press the PAUSE
button.
- : Points changed portion.
1-6. SYSTEM CONTROL SYSTEM ADJUSTMENTS
1. Battery Down Adjustment
(Service manual page 5-31)
SECTION 5
ADJUSTMENTS
12) Calculate D91’, D92’, D93’ and D94’ using following equations
(decimal calculation), convert it to a hexadecimal number,
and input each adjustment address.
Address: 91 D91’ = Dref’+8
Address: 92 D92’ = Dref’+23
Address: 93 D93’ = Dref’+44
Address: 94 D94’ = Dref’+55
Note: After setting each data, be sure to press the PAUSE
button.
=
=
=
SECTION 4
PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
& : Points added portion.

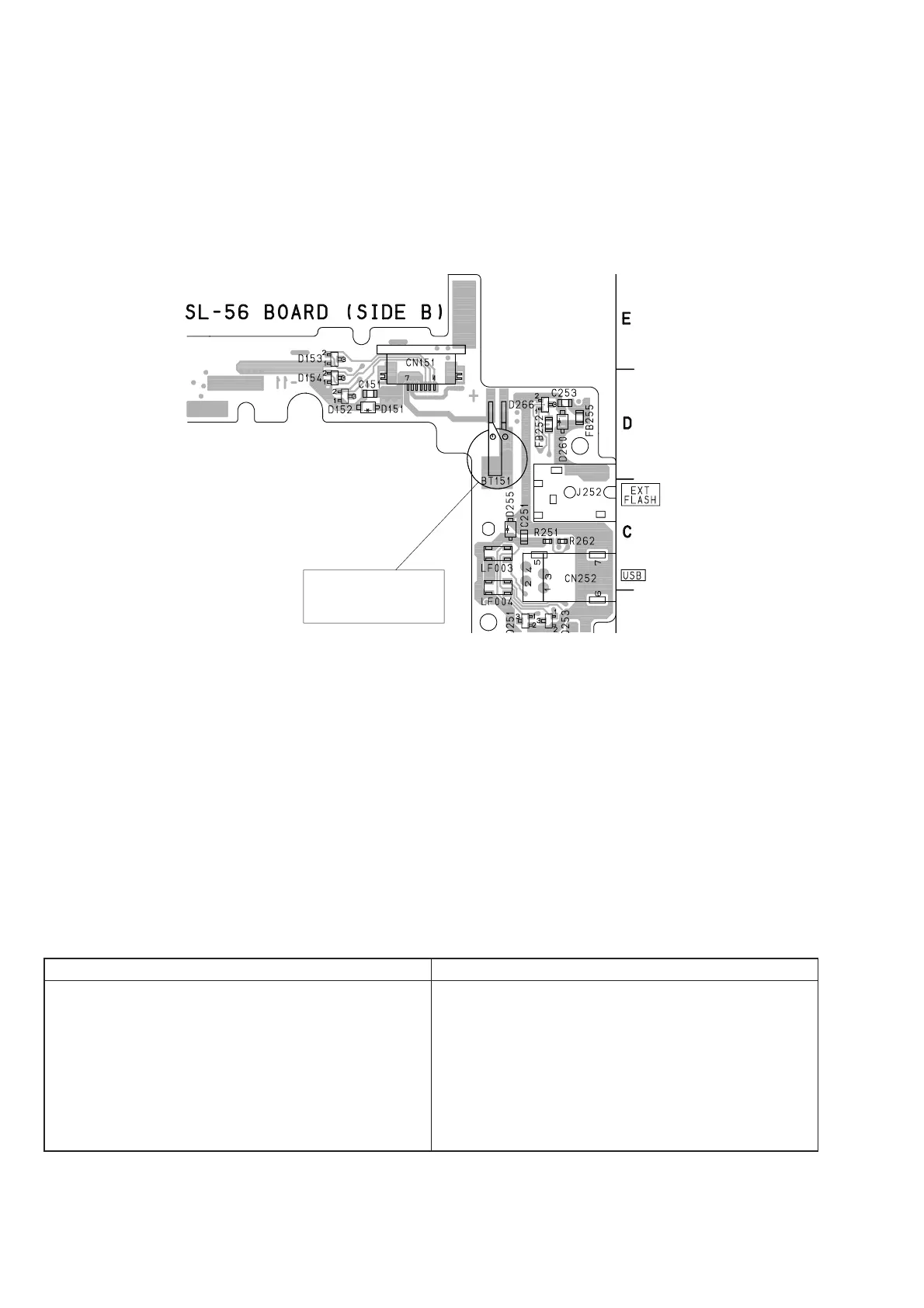

SL-56 (SWITCH, LCD, JACK) PRINTED WIRING BOARDS
– Ref. No.: SL-56 board; 2,000 series –
(Service manual pages 4-38)
BT151
BATTERY,
LITHIUM SECONDARY
( (
&
