Connecting to a Remote Control Unit
You can connect a remote control unit (the RM-930 or
RM-C950) to the camera module.

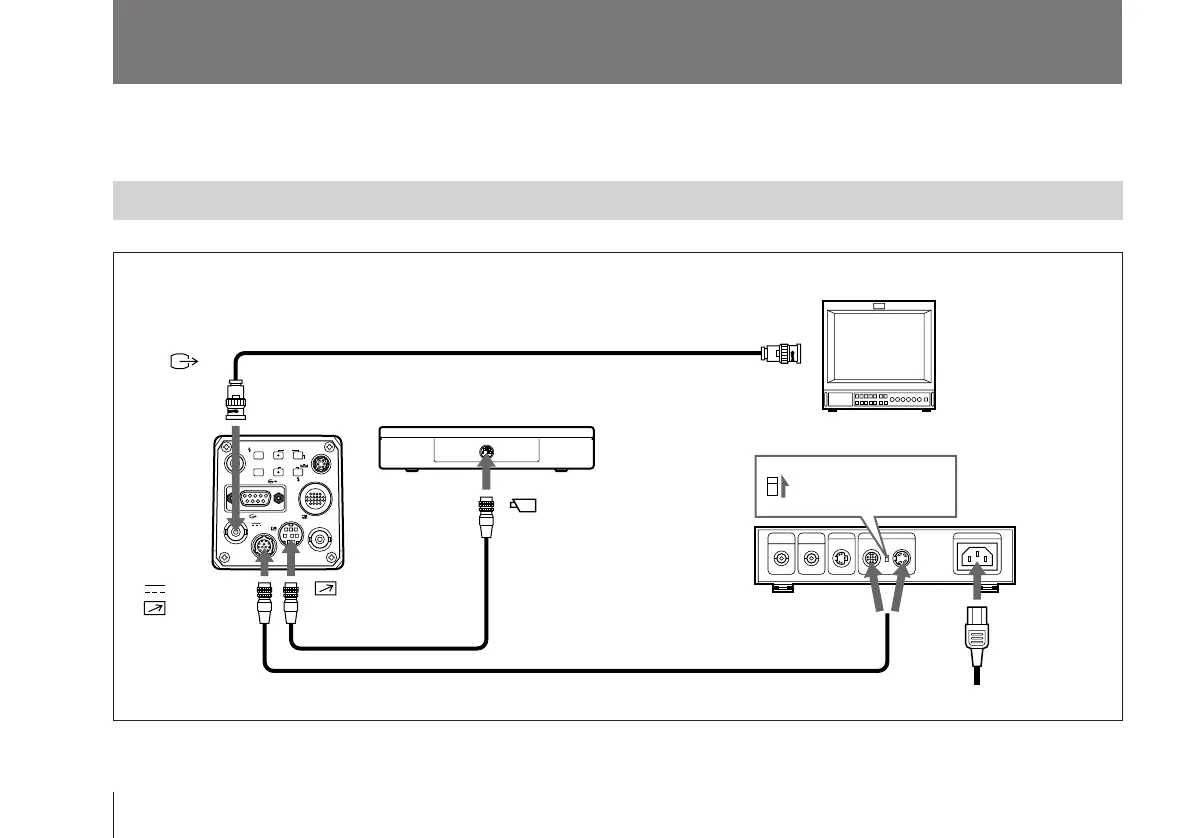

Connecting to the RM-C950 Remote Control Unit
VIDEO OUT
GEN LOCK
DC IN/
REMOTE
CCU
FLASH
LENS
MENU FUNCTION DATA
UP
WHITE
BARS
DOWN
RGB/SYNC
REMOTE
1
2
75Ω coaxial cable
Video monitor, VCR, etc.
Set the MODE selector
to the “1” position.
CMA-D2MD
camera adaptor
CCDC cable: CAMERA (4-pin)
CCMC cable: CAMERA (12-pin)
Camera cable
(supplied with
RM-C950)
CAMERA
VIDEO
OUT
DXC-970MD
REMOTE
CCDC-5/10/25/50A/100A cable or CCMC-12P02/05/10/25 cable
DC IN/
REMOTE
Power cord
Composite
video input
AC IN
RM-C950 remote control unit
