Sony DXC-970MD - Connecting to a Printer

80
VIDEO OUT
GEN LOCK
DC IN/
REMOTE
CCU
FLASH
LENS
MENU FUNCTION DATA
UP
WHITE
BARS
DOWN
RGB/SYNC
REMOTE
1
2
Connecting to a Printer
DXC-970MD
DC IN/ REMOTE
Set the MODE selector
to the “1” position.
Power
cord
AC IN
CMA-D2MD camera adaptor
CAMERA
(4-pin or 12-pin)
CCDC-5/10/25/50A/100A cable or
CCMC-12P02/05/10/25 cable
Video input connector
75Ω coaxial cable
Video output connector
Printer
Remote
connector Video input connector
CCMC-9DSMN camera cable
Video monitor, VCR, etc.

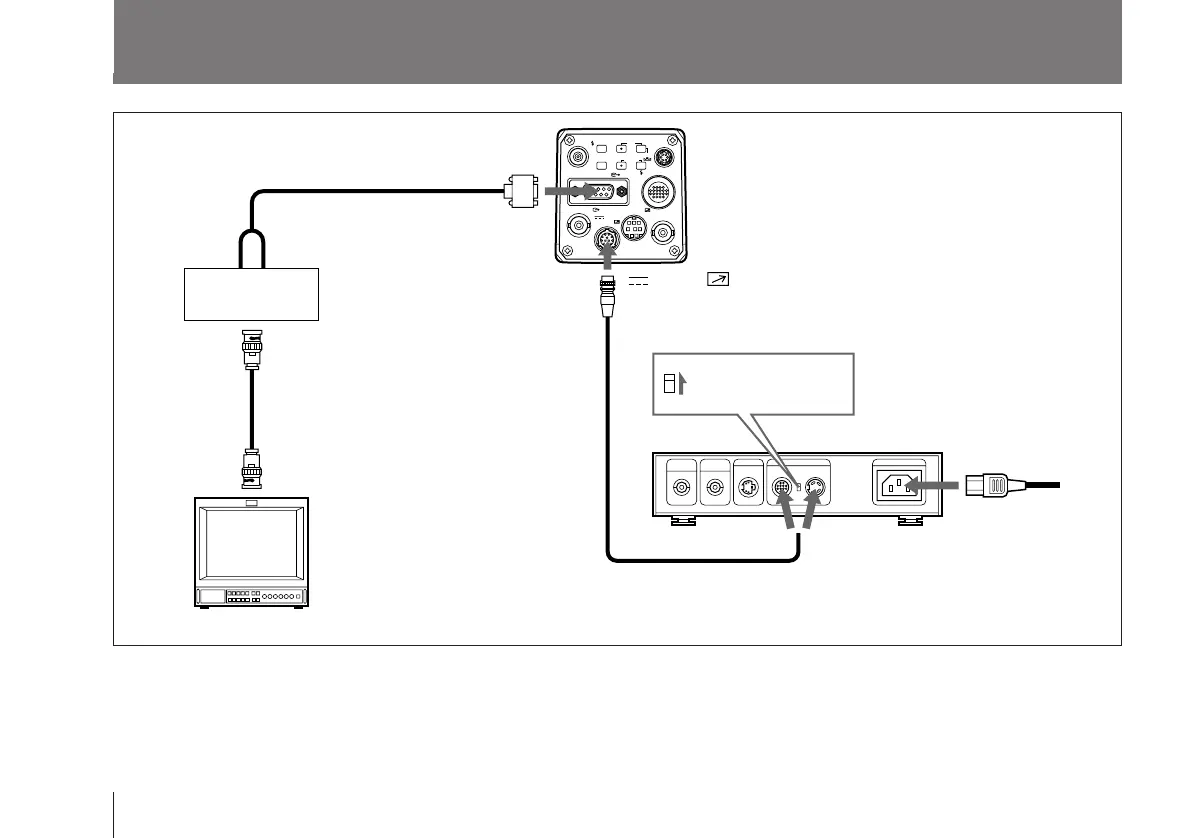

System for connecting to a printer
