Sony DXC-970MD - Computer Connection

81

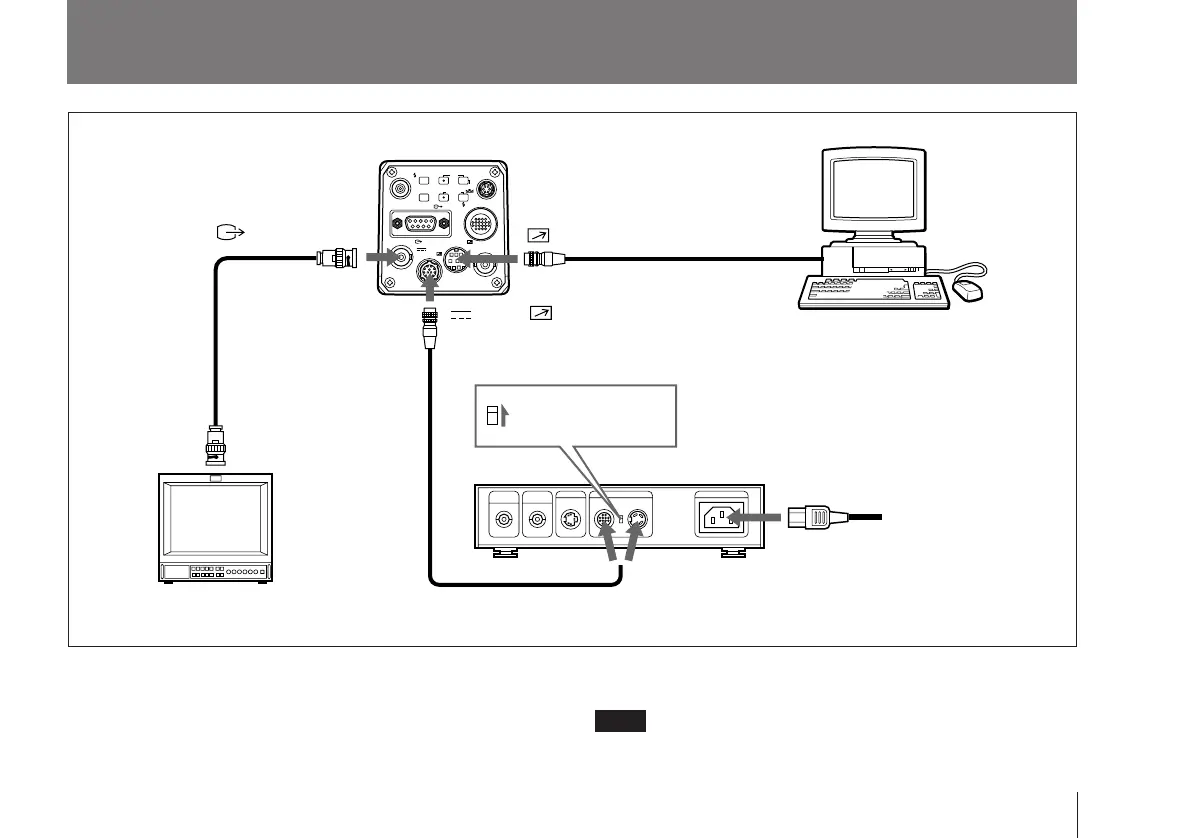

Connecting to a Computer
VIDEO OUT
GEN LOCK
DC IN/
REMOTE
CCU
FLASH
LENS
MENU FUNCTION DATA
UP
WHITE
BARS
DOWN
RGB/SYNC
REMOTE
1
2
Video monitor,
VCR, etc.
DXC-970MD
Computer
VIDEO OUT
Video input connector
Set the MODE selector
to the “1” position.
CMA-D2MD camera adaptor
CAMERA
(4-pin or 12-pin)
DC IN/ REMOTE
CCDC-5/10/25/50A/100A cable or
CCMC-12P02/05/10/25 cable
AC IN
Power
cord
REMOTE
Connecting cable
a)
Serial interface
connector
75Ω coaxial cable
System for controlling the camera with a computer using an RS-232C command
Note
For more details on RS-232C protocols and cables for
connection to a computer, contact your authorized Sony dealer.
a) Always use a specified shielded cable when connecting
the unit to a computer.
