Sony HCD-AZ33D - Case; S-MASTER Board

HCD-AZ33D
11
Note: Follow the disassembly procedure in the numerical order shown below.

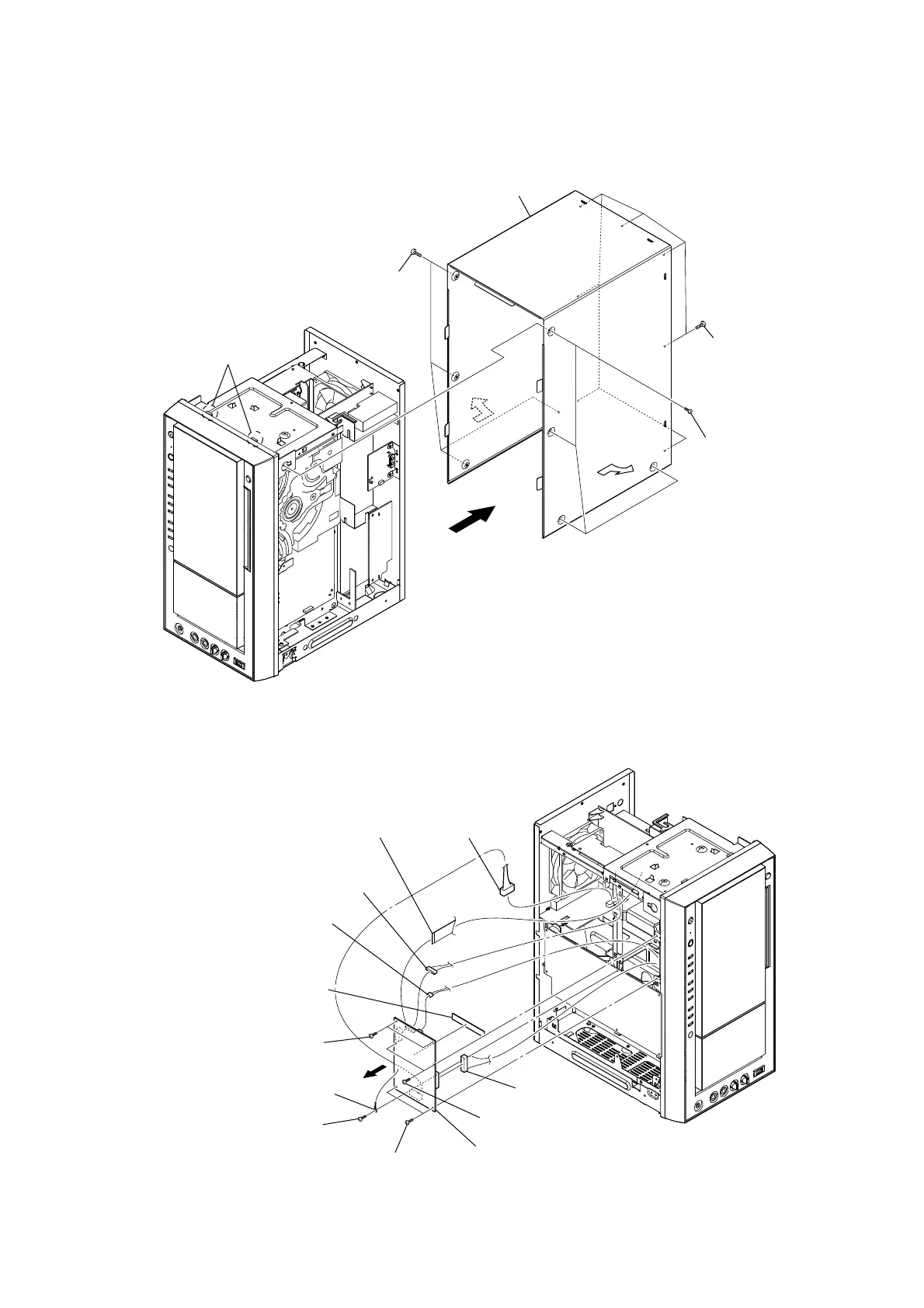

3-2. CASE
 case


 seven screws
(BVTP3 × 8)
 four screws
(case 3 TP2)
 four screws
(case 3 TP2)
 two claws
3-3. S-MASTER BOARD
 two screws
(BVTP3 × 8)
 two screws (BVTP3 × 10)
RT S-MASTER board
 connector
(CN502)
RB radiation
sheet
 connector
(CN503)
 connector
(CN501)
 flexible flat cable (13 core)
(CN500)
 connector
(CN501)
 screw
(BVTP3 × 8)
 two screws
(BVTP3 × 8)
 harness

