Sony HCD-AZ33D - DC Fan (M701), Tuner (FM;AM), DMPORT Board; Switching Regulator

HCD-AZ33D
12

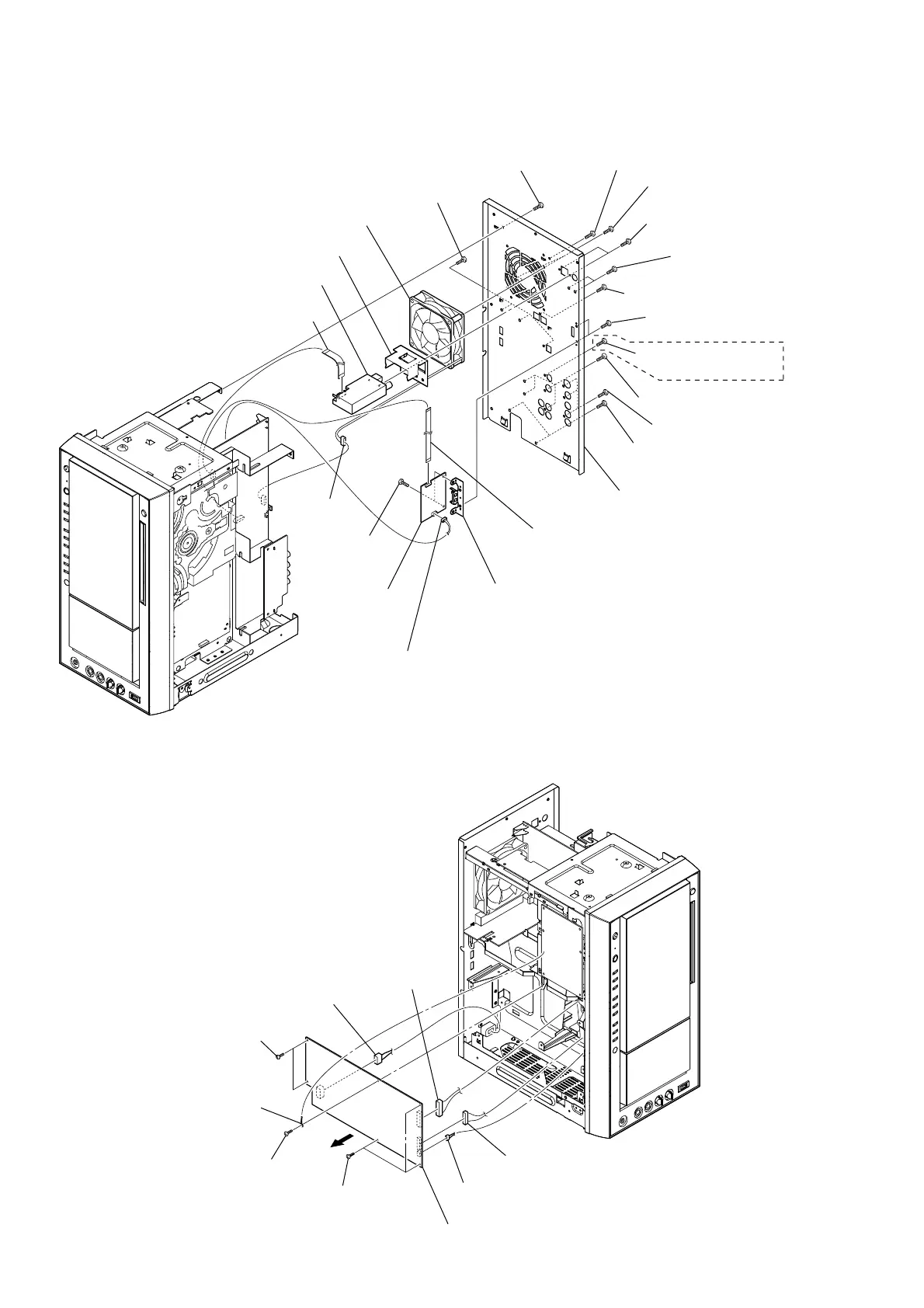

3-4. DC FAN (M701), TUNER (FM/AM), DMPORT BOARD
3-5. SWITCHING REGULATOR
 DC fan (M701)
 tuner (FM/AM)
 flexible flat cable (9 core)
(tuner/MAIN board: CN206)
 flexible flat cable (9 core)
(DMPORT board: CN201/
MAIN board: CN209)
 two screws
(BVTP3 × 8)
 three screws
(BVTP3 × 8)
 screw
(BVTP3 × 8)
 screw (BVTP3 × 8)
 three screws
(BVTP3 × 8)
 screw (BVTP3 × 8)
(except AEP, AUS)
 four screws (BVTP3 × 8)
RB two screws
(BVTP3 × 8)
 two screws
(BVTP3 × 8)
 two screws
(BVTT2.6 × 8)
 two screws (BVTP3 × 10)
RT two screws
(BVTP3 × 8)
RG DMPORT board
 connector
(CN203)
 connector
(CN754)
RE bracket (DM port)
 screw (BVTP3 × 8)
RH back panel (2DM)
 shield (tuner)
 three screws
(BVTP3 × 8)
 two screws
(BVTP3 × 8)
 screw
(BVTP3 × 8)
 switching regulator
 connector
(CN1)
 connector
(CN2)
 connector
(CN3)
 connector
(CN4)
 harness

