Sony HCD-AZ33D - MAIN Board Block; MAIN Board

HCD-AZ33D
14

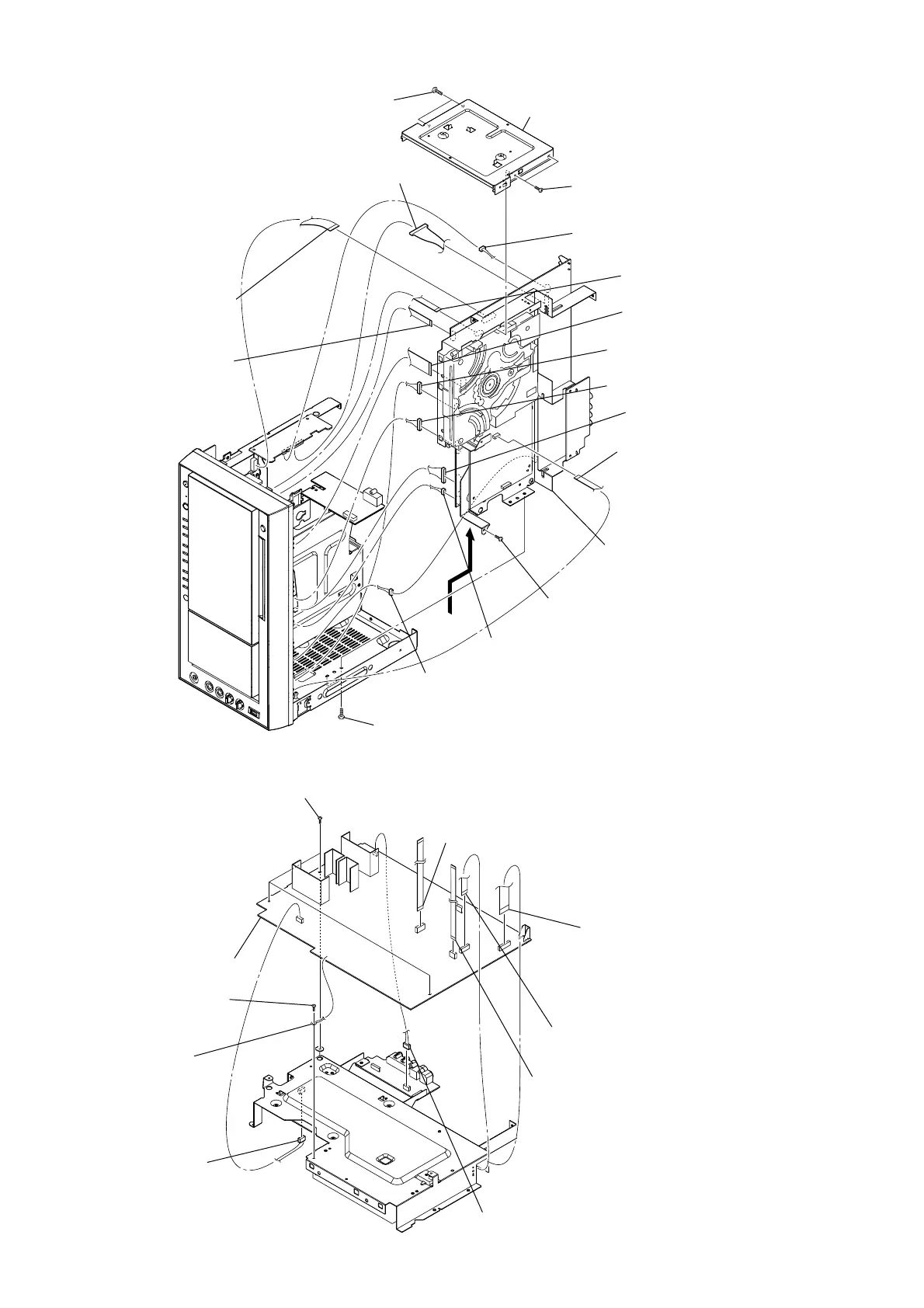

3-7. MAIN BOARD BLOCK
3-8. MAIN BOARD
 two screws
(BVTP3 × 8)
 two screws
(BVTP3 × 8)
 bracket (top)
 connector (CN3)
RG connector (CN302)
RH connector (CN951)
RI connector (CN952)
RK connector (NO956)
RL MAIN board block
 connector (CN1)
 flexible flat cable (13 core)
(CN102)
 flexible flat cable (11 core)
(CN111)
 flexible flat cable (7 core)
(CN304)
 two screws
(BVTP3 × 8)
RT
RB screw
(BVTP3 × 8)
 flexible flat cable (17 core)
(CN112)
RE connector (CN205)
 flexible flat cable (5 core)
(CN111)
 three screws (BVTP3 × 8)
 connector (CN1203)
 flexible flat cable (9 core)
(CN206)
 flexible flat cable (19 core)
(CN202)
 flexible flat cable (15 core)
(CN203)
 flexible flat cable (9 core)
(CN209)
 MAIN board
 screw (BVTP3 × 8)
 harness
 connector
(CN401)
