Sony HCD-AZ33D - 8-11. DVD MECHANISM DECK SECTION-4 (CDM86-DVBU101)

89
HCD-AZ33D
601 4-245-643-01 GEAR (IDL-C)
602 X-4955-483-1 LEVER (GEAR LOADING) ASSY
603 2-515-536-01 SPRING (DIR), TENSION COIL
604 4-245-642-01 GEAR (IDL-B)
605 4-245-814-01 LEVER (DIR FIRST)
606 2-515-534-01 SPRING (DIR BACK), TENSION COIL
607 4-245-660-11 LEVER (DIR)
608 4-245-641-01 GEAR (IDL-A)
609 4-245-640-01 GEAR (CAP)
610 4-245-628-01 LEVER (BU LOCK)
611 4-248-206-01 WASHER (3-1-0.4)
612 4-245-624-01 LEVER, CLOSE
613 4-245-635-01 SPR-E LEVER CLOSE
614 4-245-629-01 GEAR (BU LOCK)
615 4-245-644-01 GEAR (IDL-D)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

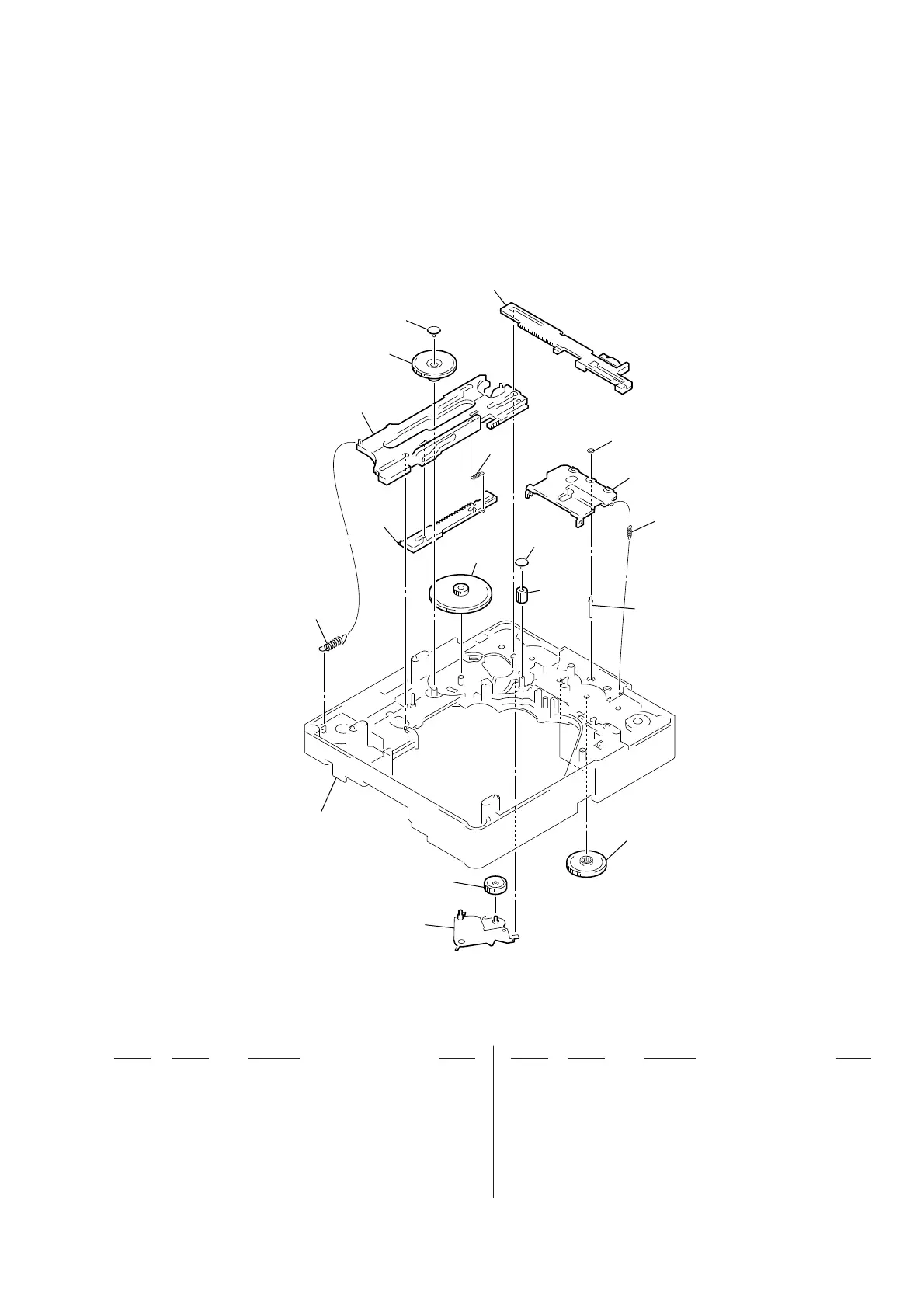

8-11. DVD MECHANISM DECK SECTION-4
(CDM86-DVBU101)
not supplied
not supplied
601
602
615
605
603
607
608
609
604
606
611
612
613
614
609
610
