Sony HCD-AZ33D - 8-9. DVD MECHANISM DECK SECTION-2 (CDM86-DVBU101)

87
HCD-AZ33D
501 3-088-752-01 FLOATING SCREW (+PTPWH M2.6)
502 2-023-648-01 TAPPING +B 2X10
503 4-245-653-01 BELT (MOT)
504 4-245-662-02 PULLEY (GEAR)
505 4-245-646-01 GEAR (IDL-F)
506 4-245-644-01 GEAR (IDL-D)
507 4-245-645-01 GEAR (IDL-E)
508 4-246-203-01 LEVER (RELEASE)
509 4-245-630-01 LEVER (SW)
510 2-023-068-01 TAPPING +B 2.6X8
M001 X-4955-496-1 MOTOR (PULLEY) ASSY (LOADING)
#4 7-623-921-01 WASHER 1.7, NYLON
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

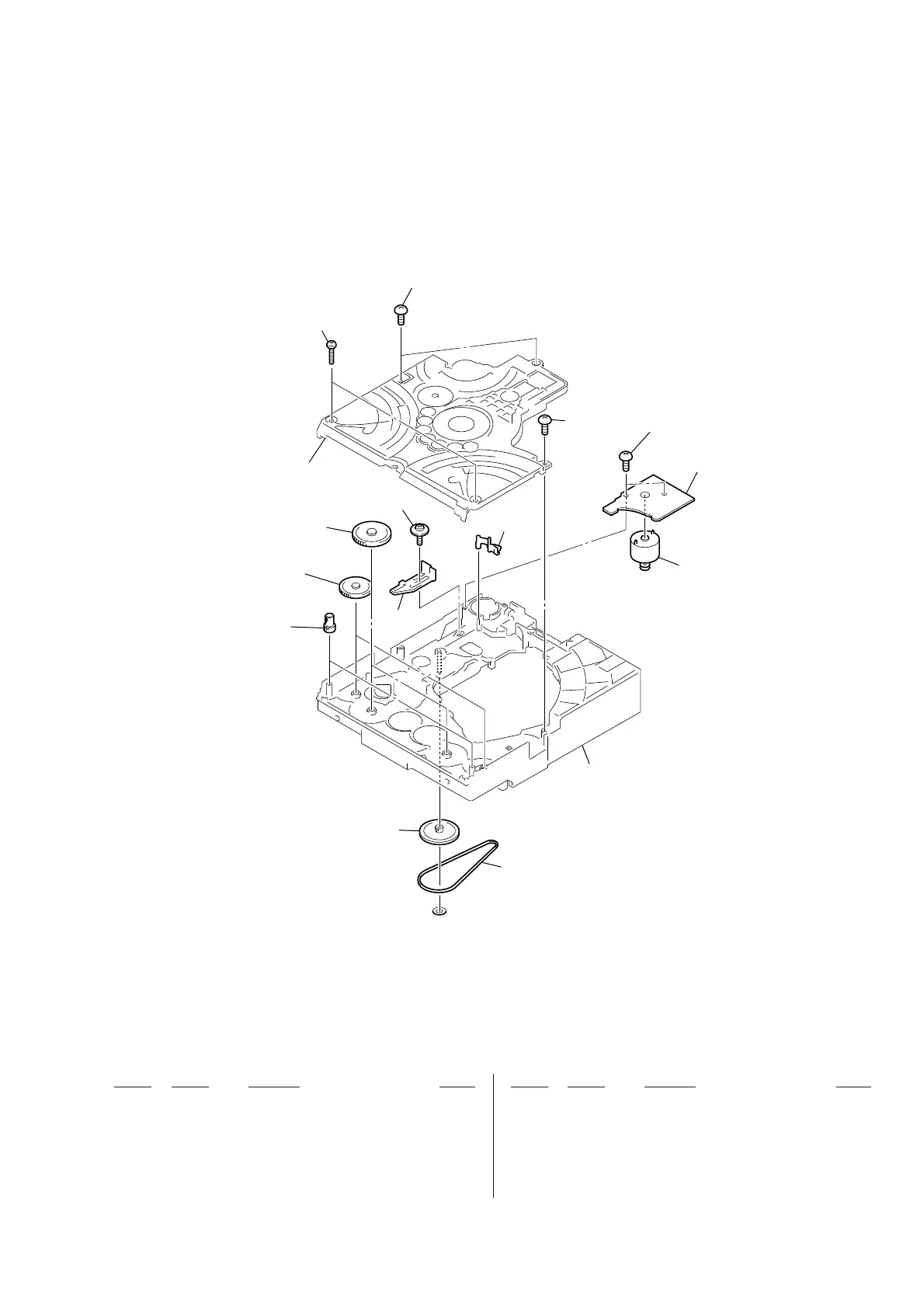

8-9. DVD MECHANISM DECK SECTION-2
(CDM86-DVBU101)
DVD mechanism section-3
510
502
510
510
509
508
501
507
506
505
504
503
DVD mechanism section-4
#4
not supplied
(MS-214 board)
M001
