HCD-AZ33D
201 4-247-752-01 FOOT, RUBBER
202 A-1249-517-A S-MASTER BOARD, COMPLETE
203 2-597-972-01 SHEET, RADIATION
204 A-1249-519-A ADC BOARD, COMPLETE
205 1-457-369-11 CORE, FERRITE
0 206 1-775-790-71 CORD, POWER (AUS)
0 206 1-830-188-11 CORD, POWER (AEP, E3, E12, E13, E15, PH, SP)
0 206 1-834-288-11 CORD, POWER (TH)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
207 3-703-244-00 BUSHING (2104), CORD
(AEP, E3, E12, E13, E15, PH, SP, AUS)
207 4-916-783-01 BUSHING, CORD (TH)
0 208 1-480-189-11 REGULATOR, SWITCHING
209 3-655-653-11 BAND (TAITON), BINDING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

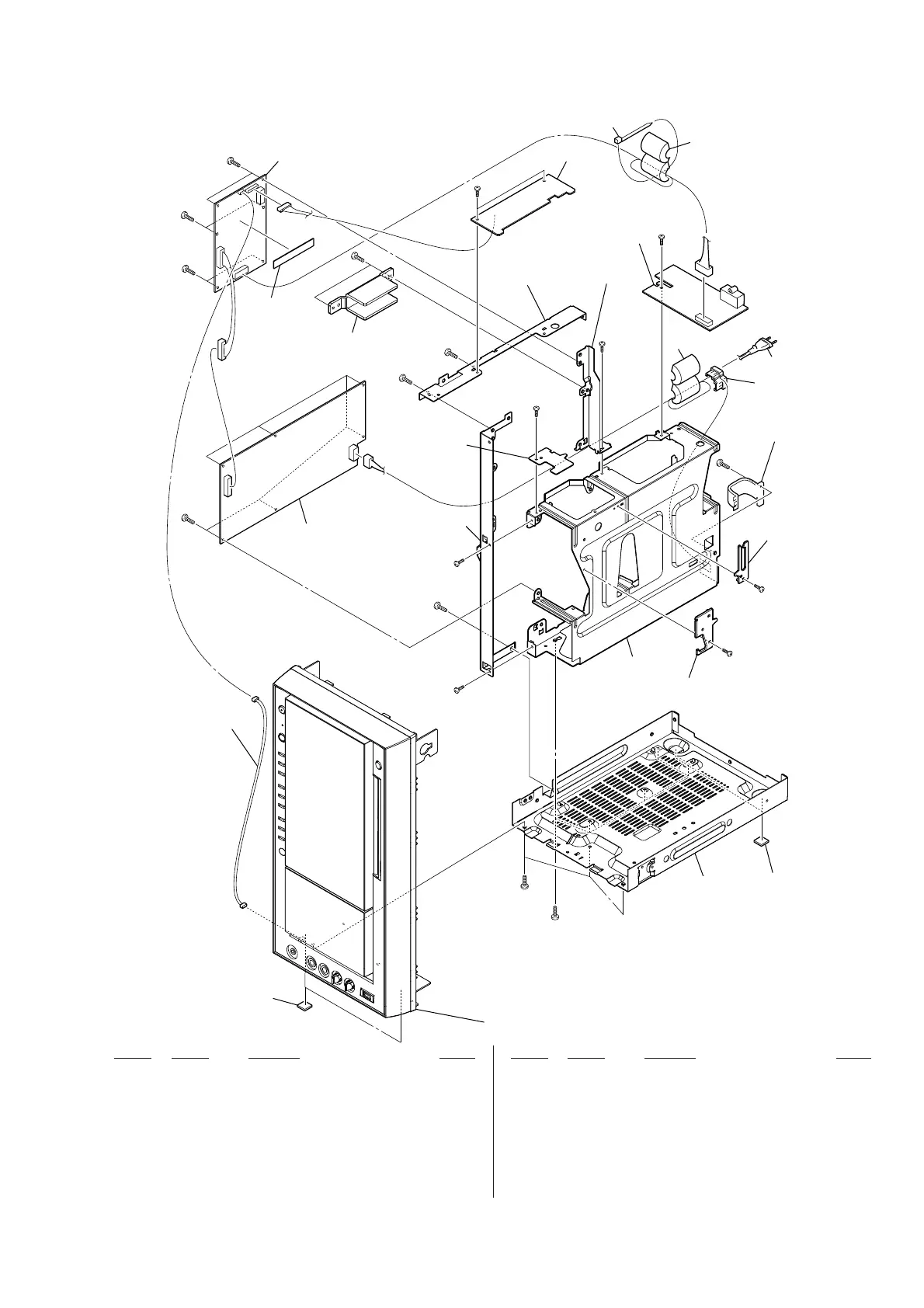

8-5. CHASSIS SECTION
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(SPEAKER board)
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
#1
208
203
202
204
205
207
206
205
not supplied
not supplied
tape mechanism deck section
#1
201
201
209
To Next Page
