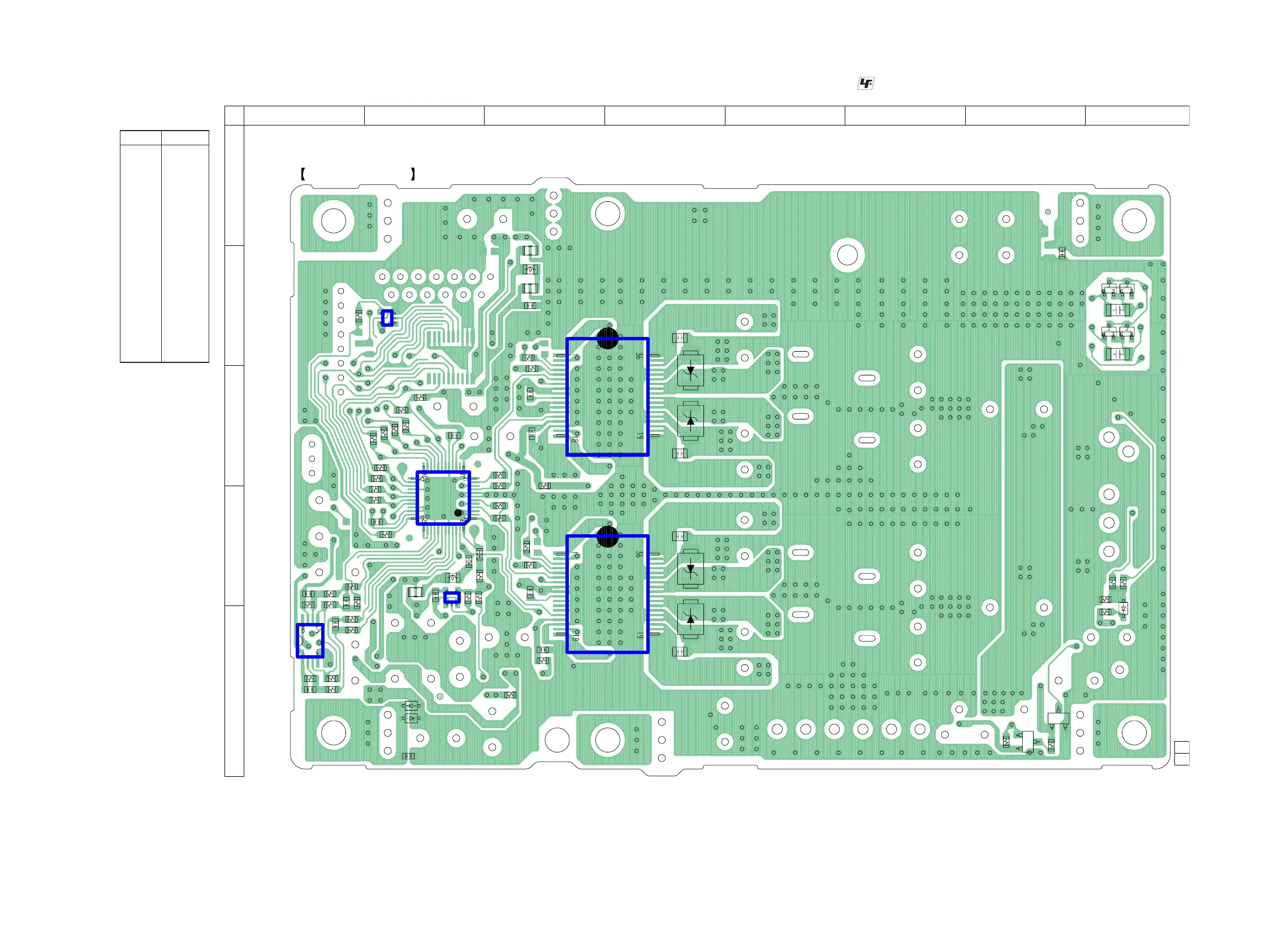

7-24. PRINTED WIRING BOARD - S-MASTER Board (Component Side) -
C877
Q851
Q850
C850
Q856
Q855
C855
R822
R823
R821
R820
D820
Q789
R798
Q788
R795
C557
D552
D554
C564
C537
D532
D534
C544
IC530
IC550
R553
R552
C534
C532
R533
R532
C806
FL810
L802
FL801
IC803
R809
C514
R516
R517
R519
R520
R521
R503
R505
R507
R506
C505
R509
C513
R524
R523
FB801
FB800
R802
R800
IC800
L800
C801
FL800
R880
R881
C880
R888
R887
C884
R883
R882
C882
R885
IC880
C885
R891
R890
R889
D883
D882
C872
R893
R563
C554
C552
R801
IC500
R529
R526
R543
1-873-487-
11
(11)
S-MASTER BOARD (COMPONENT SIDE)
E
E
EE
EE
1
3
45
1
12
36
37 48
24 13
25
1
3
4
5
A
B
C
D
E
12345678
Ref. No. Location
• Semiconductor
Location
D532 C-4
D534 C-4
D552 E-4
D554 D-4
D820 E-8
D882 E-2
D883 E-2
IC500 D-2
IC530 C-4
IC550 D-4
IC800 D-2
IC803 B-2
IC880 E-1
Q788 E-7
Q789 E-7
Q850 B-8
Q851 B-8
Q855 B-8
Q856 B-8
• : Uses unleaded solder.
• See page 34 for Circuit Boards Location.
