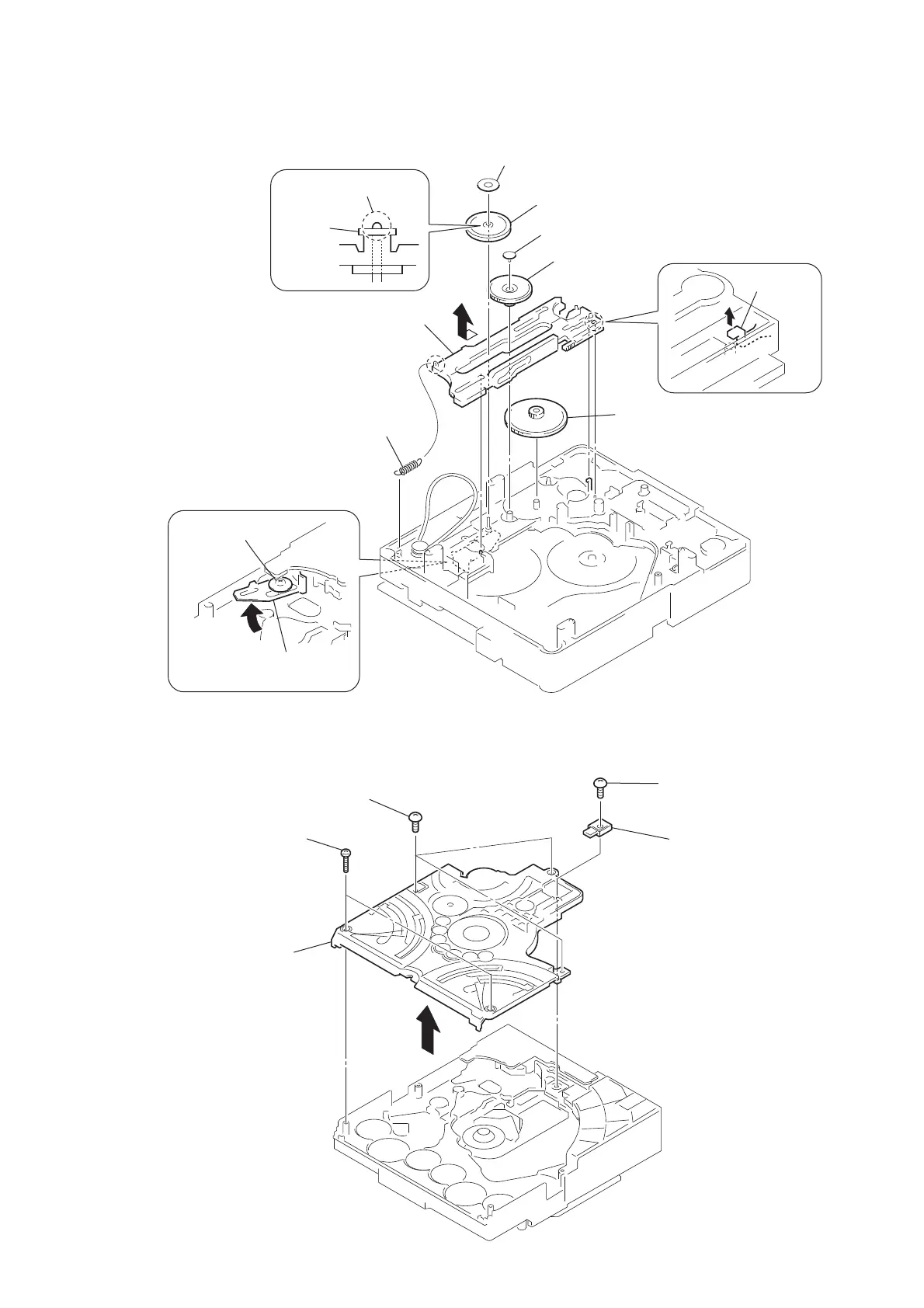

3-17. LEVER (DIR), GEAR (IDL-B)
3-18. CHASSIS (TOP)
 pulley (gear)
 nylon washer 1.7
 claw
washer
 Lever (DIR)
 gear (IDL-A)
RB gear (IDL-B)
 tension coil spring (DIR)
 stoper
 Loosen the screw.
 Hold the release lever
and change the direction.
 gear (cap)
 screw
(B 2.6 × 8)
 three screws
(B 2.6 × 8)
 two screws
(B 2 × 10)
 chassis (top)
 lever (CL UP2)
