79
HCD-AZ33D
SECTION 8
EXPLODED VIEWS
1 3-363-099-11 SCREW (CASE 3 TP2)
2 3-094-942-12 CASE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts of Color Cabinet’s Color
• Abbreviation
AUS : Australian model
E3 : 240V AC area in E model
E12 : 220 - 240V AC area in E model
E13 : 220 - 230V AC area in E model
E15 : Iranian model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

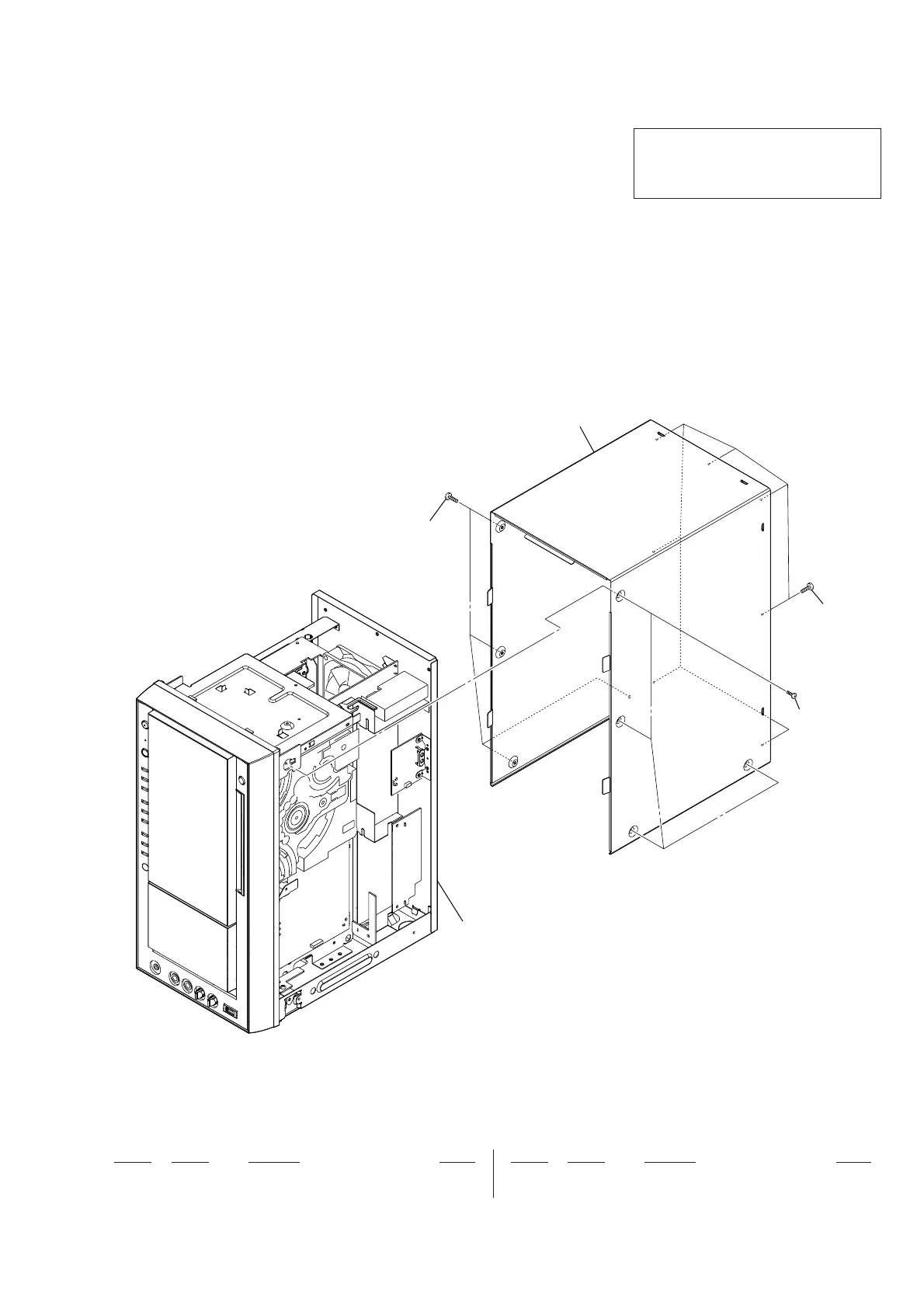

8-1. CASE SECTION
PH : Philippines model
SP : Singapore model
TH : Thai model
1
1
2
back panel section
#1
To Next Page
