HCD-AZ33D
151 1-834-537-21 CABLE, FLEXIBLE FLAT
152 1-832-550-21 CABLE, FLEXIBLE FLAT (7 CORE)
153 1-832-578-21 CABLE, FLEXIBLE FLAT (13 CORE)
154 1-834-538-21 CABLE, FLEXIBLE FLAT
155 4-247-752-01 FOOT, RUBBER
156 A-1249-463-A MAIN BOARD, COMPLETE (E3, E15)
156 A-1249-465-A MAIN BOARD, COMPLETE (PH, SP, TH)
156 A-1249-467-A MAIN BOARD, COMPLETE (E12)
156 A-1249-468-A MAIN BOARD, COMPLETE (E13)
156 A-1249-469-A MAIN BOARD, COMPLETE (AUS)
156 A-1309-123-A MAIN BOARD, COMPLETE (AEP)
157 1-828-771-51 WIRE (FLAT TYPE) (24 CORE)
158 A-1309-131-A DMB17 BOARD, COMPLETE (for SERVICE)
(E3, E15)
158 A-1309-132-A DMB17 BOARD, COMPLETE (for SERVICE)
(PH, SP, TH)
158 A-1309-133-A DMB17 BOARD, COMPLETE (for SERVICE) (E12)
158 A-1309-134-A DMB17 BOARD, COMPLETE (for SERVICE) (E13)
158 A-1309-135-A DMB17 BOARD, COMPLETE (for SERVICE) (AEP)
158 A-1309-136-A DMB17 BOARD, COMPLETE (for SERVICE) (AUS)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

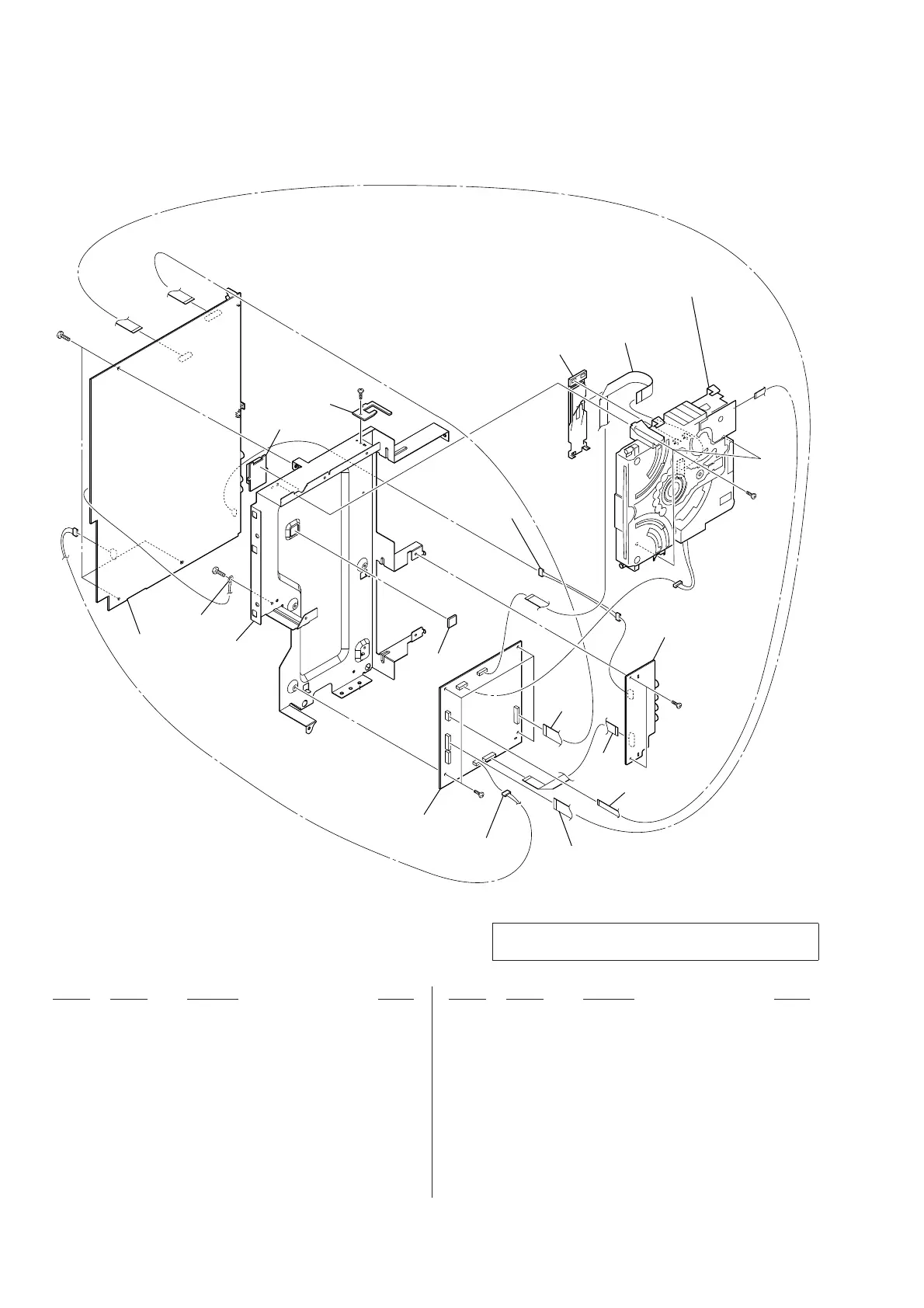

8-4. MAIN BOARD SECTION
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(VIDEO board)
#1
#1
#1
#1
#1
#1
DVD mechanism deck section-1
156
151
152
153
154
155
158
157
not supplied
not supplied
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
