Sony HCD-AZ33D - MAIN BOARD SERVICE POSITION; S-MASTER BOARD SERVICE POSITION

HCD-AZ33D
6

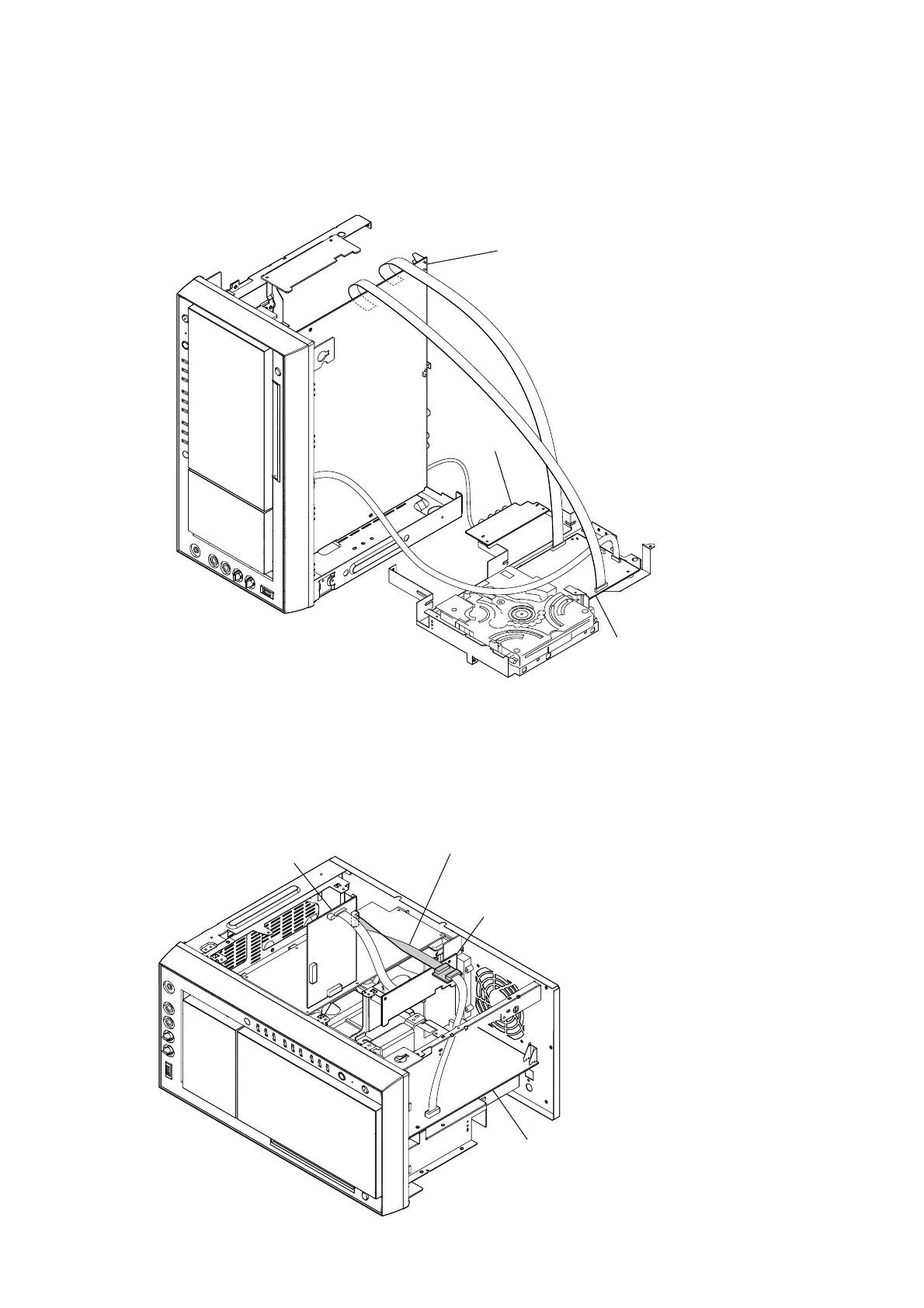

S-MASTER BOARD SERVICE POSITION
In checking the S-MASTER board, prepare jig (extension cable J-2501-077-A: 1.25 mm Pitch, 15 cores, Length 300 mm).
S-MASTER board
MAIN board
ADC board
connect jig (extension cable J-2501-077-A)
to the S-MASTER board (CN500) and MAIN board (CN102).
MAIN BOARD SERVICE POSITION
Note: Please reconnect cables after detaching the back panel section and CDM as shown in the fi gure.
VIDEO board
DMB17 board
MAIN board
