Sony HCD-J3MD - 2 General

18
SECTION 2
GENERAL

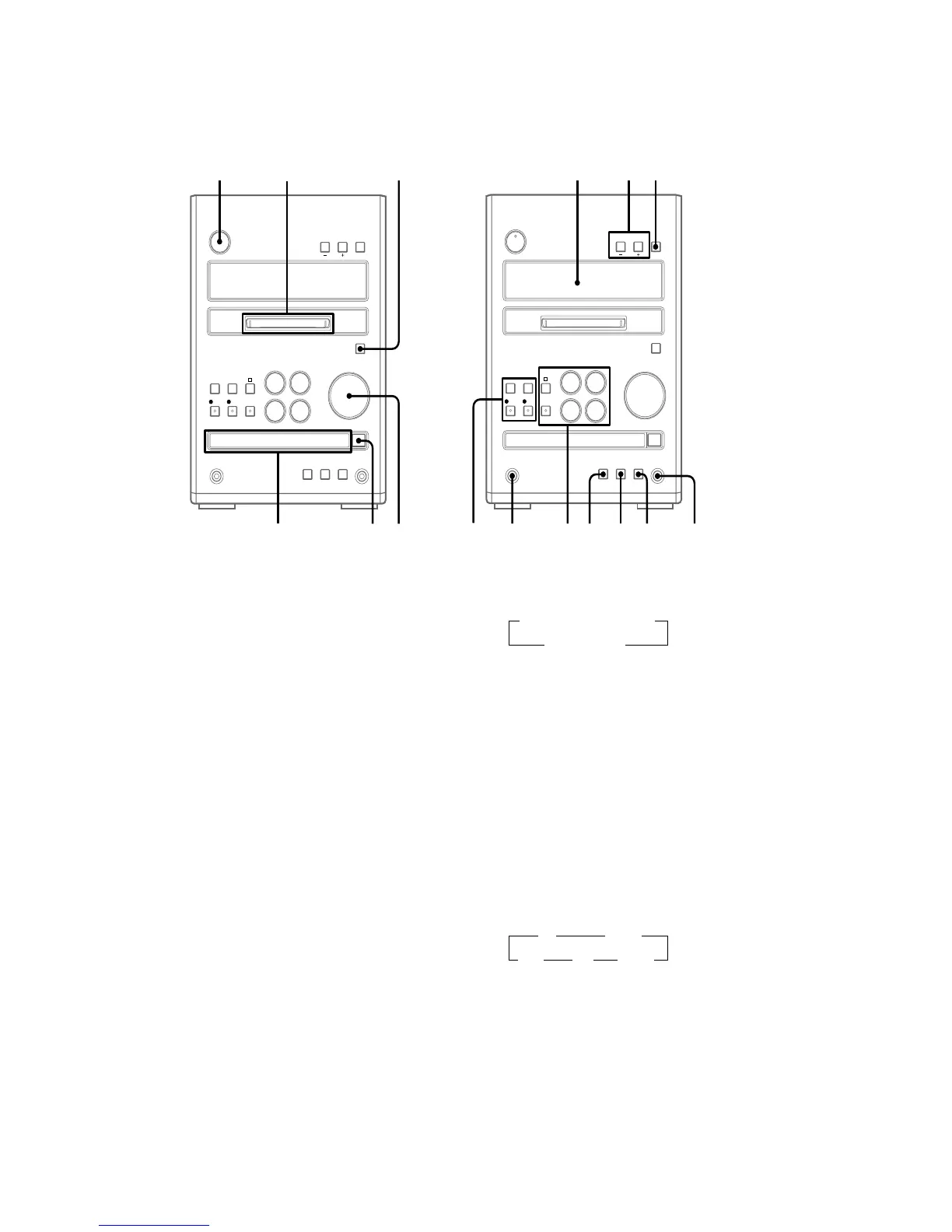

1 ?/1 Power switch
2 MD slot
3 MD A (eject) button
4 Disk tray
5 CD A (eject) button
6 VOLUME knob
7 Display
8 lm/ML button
9 TUNER/BAND button
0 Recording button
SYNCHRO REC button
ENTER/START button
z MD button
z TAPE button
qa PHONES jack
qs CD/MD/TAPE play button
s STOP button
CD D play/pause button
MD D play/pause button
S TAPE pause button
TAPE h/H play button
qd PLAY MODE button
DIRECTION button
TUNING MODE button
qf REPEAT button
DOLBY NR button
STEREO/MONO button
qg FUNCTION button
qh LINE IN jack
