Sony HCD-J3MD - Printed Wiring Board - MAIN Section

HCD-J3MD
5757

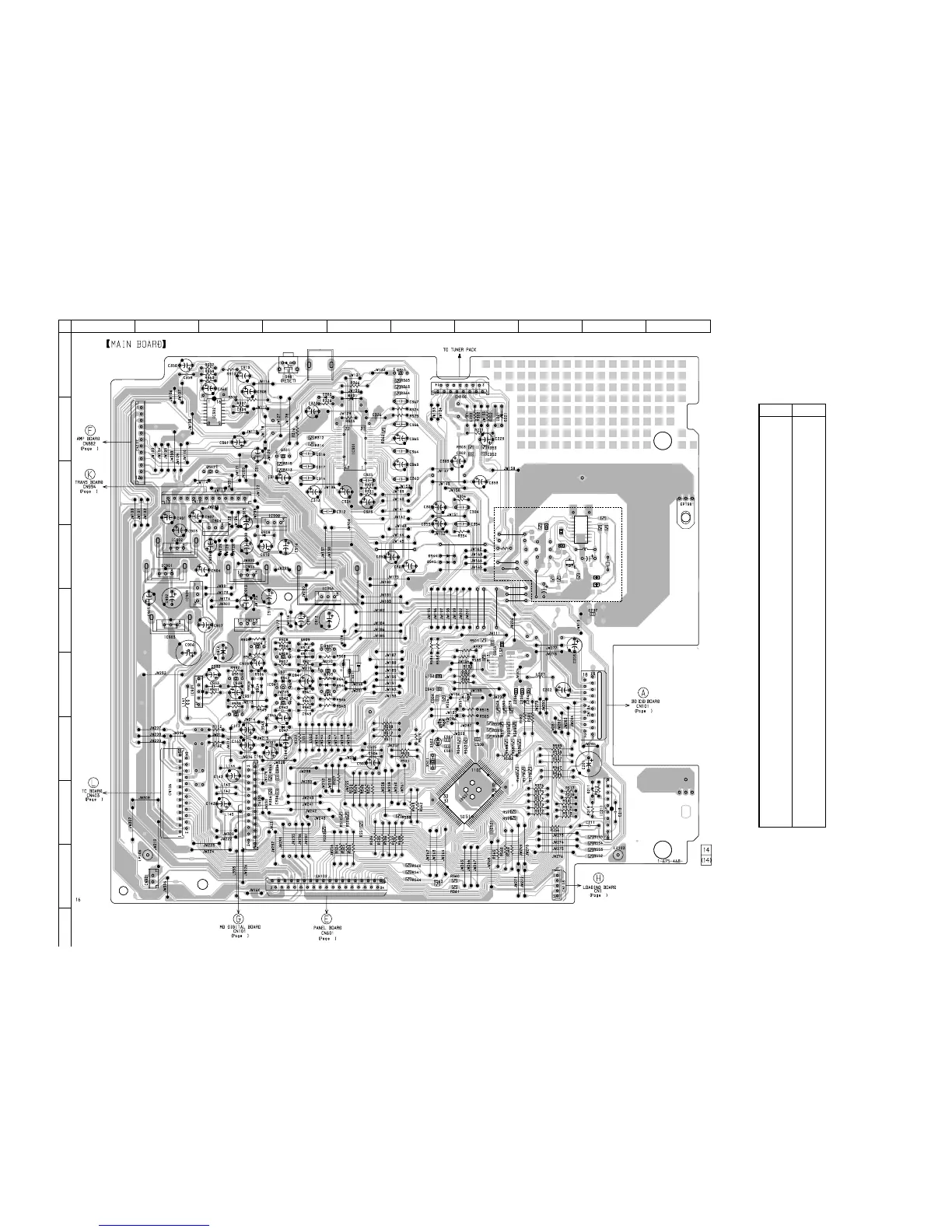

6-10. Printed Wiring Board – MAIN Section –
• See page 49 for Circuit Boards Location.
60
66
62
58
64
68
50
R230
R237
R238
C238
C232
R232
R231 R233
R236 C237
C240
R240
X230
L230
IC231
161
89
C242
C244
C241
Q231
EXCEPT HK MODEL
12
A
B
C
D
E
F
G
H
I
345678910
Ref. No. Location
D211 H-9
D221 B-7
D301 B-5
D302 B-4
D904 F-3
D905 F-3
D906 F-4
D908 D-4
D909 E-4
D910 E-4
D911 F-4
D941 F-4
D942 F-4
D943 G-4
D944 D-6
D945 D-6
D946 F-5
D947 G-4
IC211 H-9
IC231 D-9
IC301 B-5
IC302 B-3
IC501 H-7
IC901 D-2
IC902 D-2
IC903 E-2
IC904 D-3
IC905 D-3
IC906 E-5
IC907 E-3
IC908 D-4
IC909 E-2
IC931 F-3
IC941 F-4
Q231 D-8
Q301 B-4
Q351 A-6
Q542 C-3
Q551 F-7
Q552 G-6
Q902 E-5
Q903 F-5
Q904 E-4
Q908 F-4
Q931 F-3
Q932 F-3
Q941 F-5
Q942 F-4
• Semiconductor
Location
