SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

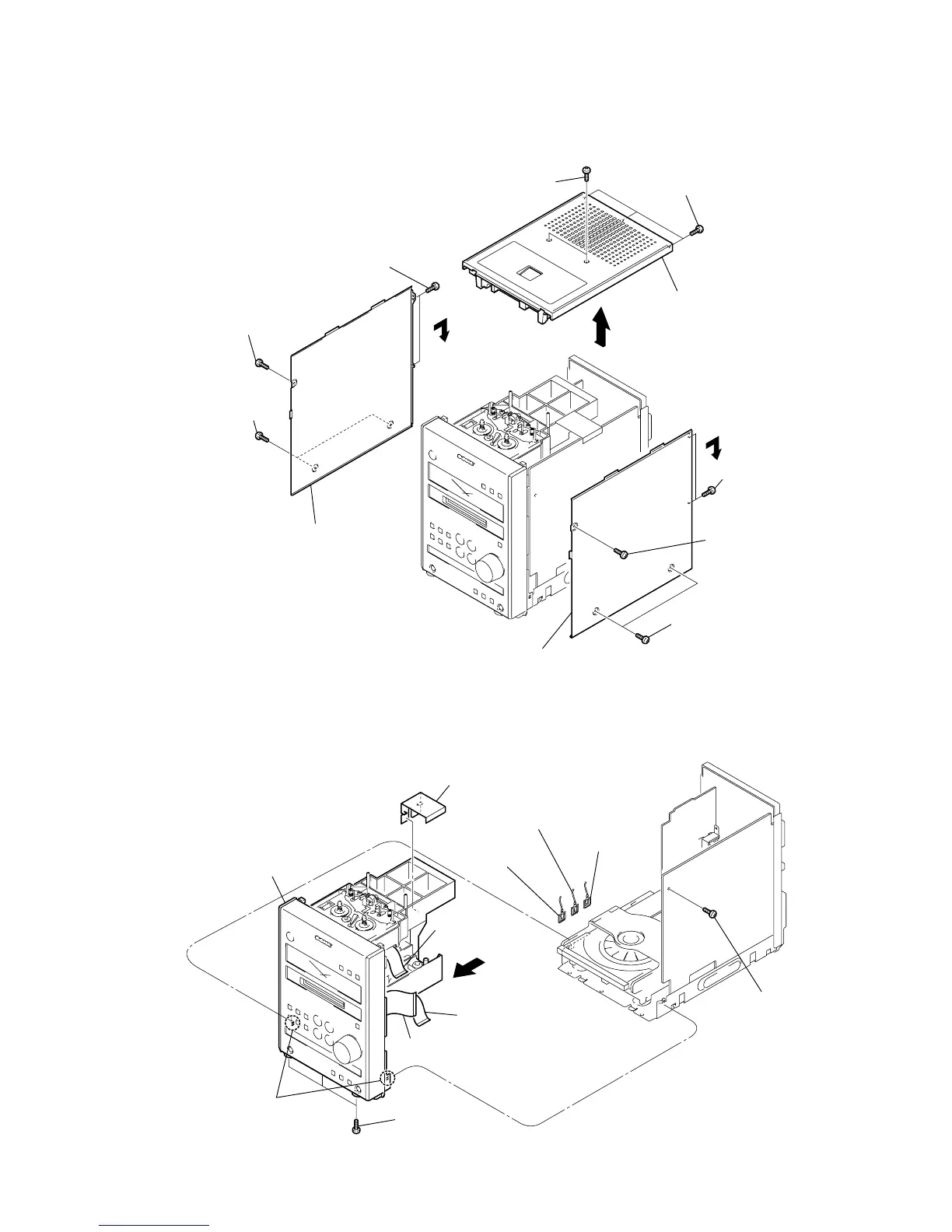

3-1. UPPER COVER
3-2. FRONT PANEL SECTION
q; Two screws
9 Three screws (+ BVTP 3 × 10)
qa Upper cover
(Remove in the direction
of the arrow.)
4 Case (L)
(Remove in the direction
of the arrow.)
8 Case (R)
@ (Remove in the direction
of the arrow.)
3 Two screws
(+ BVTP 3
× 10)
7 Two screws
(+ BVTP 3
× 10)
5 Screw
@i Case 3 TP 2 j
6 Two screws
@i Case 3 TP 2 j
1 Screw
(Case 3 TP 2)
2 Two screws
(Case 3 TP 2)
9 Three screws
(+ BVTP 3 × 10)
2 Screw
(+ BVTP 3 × 10)
7 Flat cable (25 core)
qa Front panel section
q; Two craws
6 Flat cable
(25 core)
8 Flat cable (35 core)
3 Earth wire (led)
4 Earth wire (block)
1 Cover (CAT)
5 Earth wire (block)
