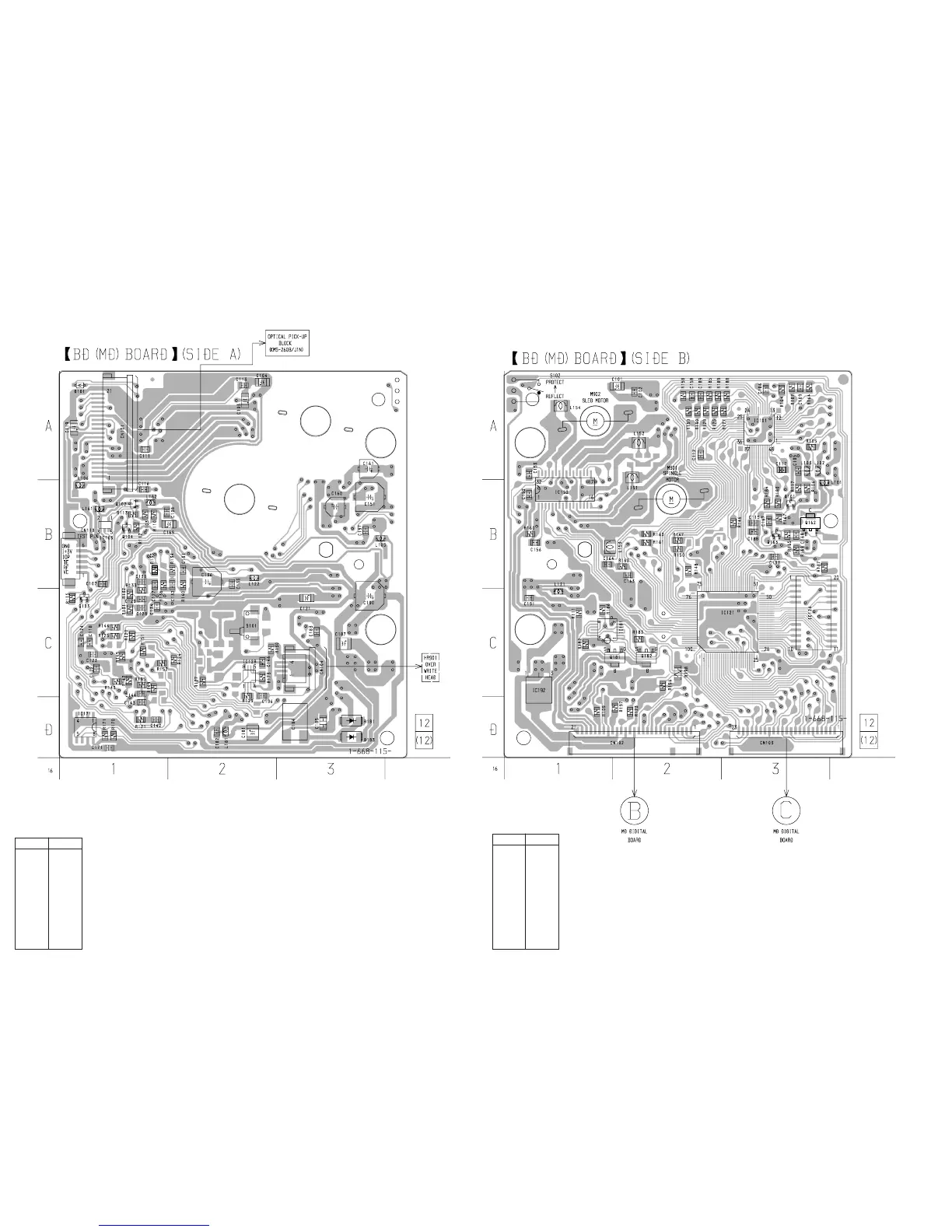

6-5. Printed Wiring Board – BD (MD) Section –
• See page 49 for Circuit Boards Location.
(Page 58) (Page 58)
Ref. No. Location
D101 A-1
D181 D-3
D183 D-3
IC103 B-1
IC123 C-2
IC171 D-1
Q102 B-1
Q103 C-1
Q104 B-1
• Semiconductor
Location
Ref. No. Location
IC101 A-3
IC121 C-3
IC124 C-3
IC152 B-1
IC181 C-2
IC192 C-1
Q101 B-3
Q162 B-3
Q163 B-3
Q181 C-2
Q182 C-2
• Semiconductor
Location
