Sony HCD-J3MD - 7 Exploded Views; Case and Casette Mechanism Deck Section (CMAL1 Z027 A)

79
SECTION 7
EXPLODED VIEWS

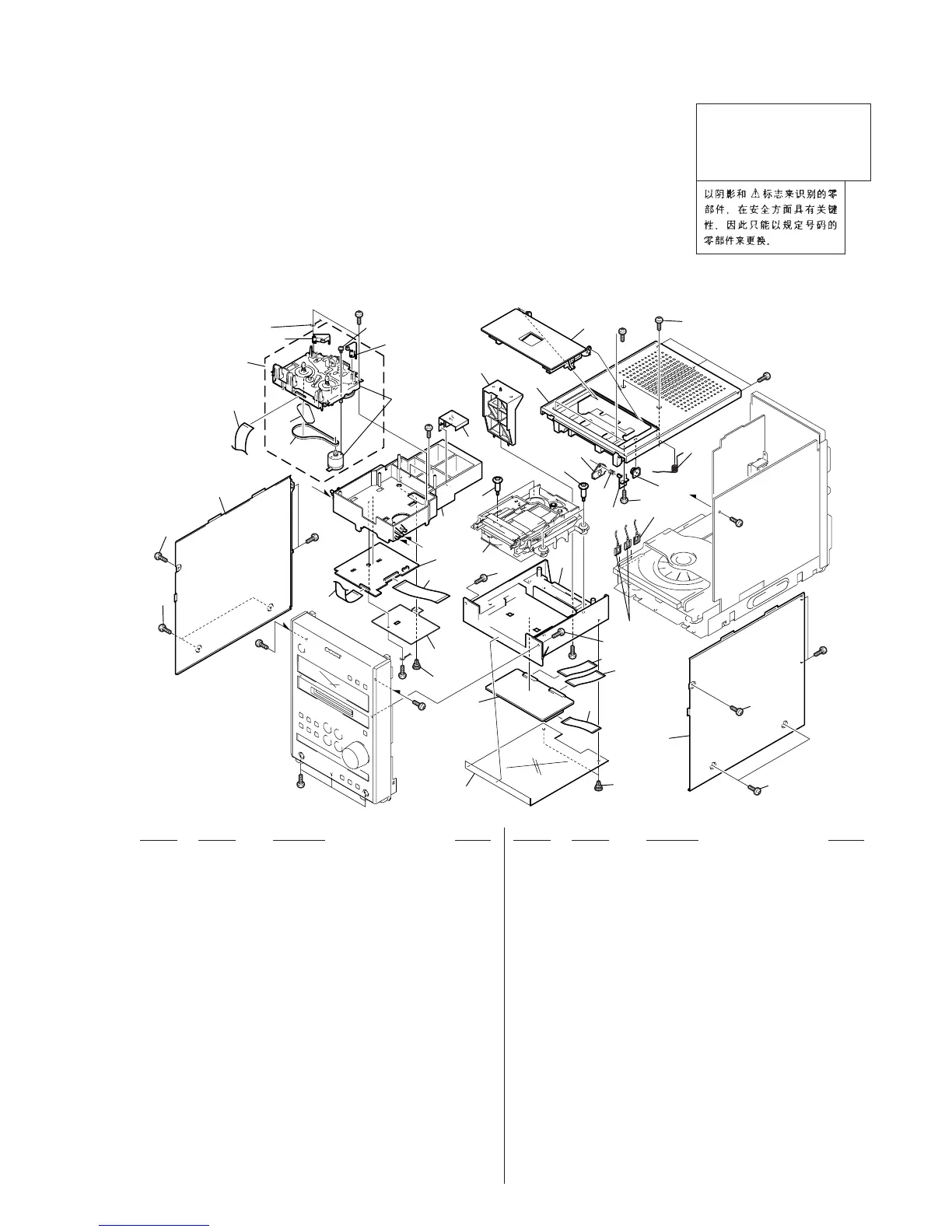

7-1. CASE AND CASETTE MECHANISM DECK SECTION (CMAL1Z027A)
NOTE:
• Items marked “*” are not stocked since they are sel-
dom required for routine service. Some delay should
be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
1 3-363-099-11 SCREW(CASE 3 TP2)
2 4-224-106-01 CASE(L) (SILVER)
2 4-224-106-11 CASE(L) (METALLIC)
2 4-224-106-21 CASE(L) (WHITE)
3 4-997-983-01 BELTMAIN
4 4-997-984-01 F/RBELT
5 1-791-693-11 WIRE(FLAT TYPE) (12 CORE)
6 A-4411-902-A MECHANICAL ASSY, CASSETTE
7 X-4949-569-1 PINCHROLLER BLK L ASSY
8 X-4949-568-1 PINCHROLLER BLK R ASSY
9 4-224-110-01 HOLDER (TCM)
10 4-224-119-01 CATCHER, PUSH
11 A-4426-954-A TC BOARD, COMPLETE
12 1-791-696-11 WIRE(FLAT TYPE) (25 CORE)
13 4-212-589-01 SCREW (+BVTPWH M3), STEP
14 4-224-111-01 HOLDER (MD)
15 4-951-620-01 SCREW (2.6X8), +BVTP
16 4-221-097-01 BRACKET (MDM)
17 A-4426-083-A MD DIGITAL BOARD, COMPLETE
18 1-777-240-11 WIRE(FLAT TYPE) (21 CORE)
19 1-791-211-11 WIRE(FLAT TYPE) (23 CORE)
20 1-773-213-11 WIRE(FLAT TYPE) (25 CORE)
21 4-224-107-01 CASE(R) (SILVER)
21 4-224-107-11 CASE(R) (METALLIC)
21 4-224-107-21 CASE(R) (WHITE)
22 4-224-115-01 CASE(U)(SILVER)
22 4-224-115-11 CASE(U)(METALLIC)
22 4-224-115-21 CASE(U)(WHITE)
23 X-4952-232-1 LID(TC) ASSY/S (SILVER)
23 X-4952-252-1 LID(TC) ASSY/X (METALLIC)
23 X-4952-352-1 LID(TC) ASSY/W (WHITE)
24 4-212-531-11 SCREW
25 4-224-117-01 SPRING (PUSH),COMPRESSION
26 4-224-104-01 DAMPER
27 4-224-116-01 BRACKET (PUSH)
28 4-224-121-01 SPRING (TC), TORSION
29 3-363-099-81 SCREW (CASE 3 TP2)
30 4-812-134-00 RIVET (DIA. 3.5), NYLON
31 4-227-235-01 COVER (CAT)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
a
a
c
c
b
b
#1
#1
MDM-5H
2
6
4
3
5
7
8
9
11
5
12
16
30
17
18
19
20
13
31
13
14
23
22
24
10
25
27
26
15
28
29
29
21
1
1
15
15
30
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
• Abbreviation
HK : Hong Kong model
