Sony HCD-J3MD - Cassette Machanism; Power Transformer;Amp Board

23

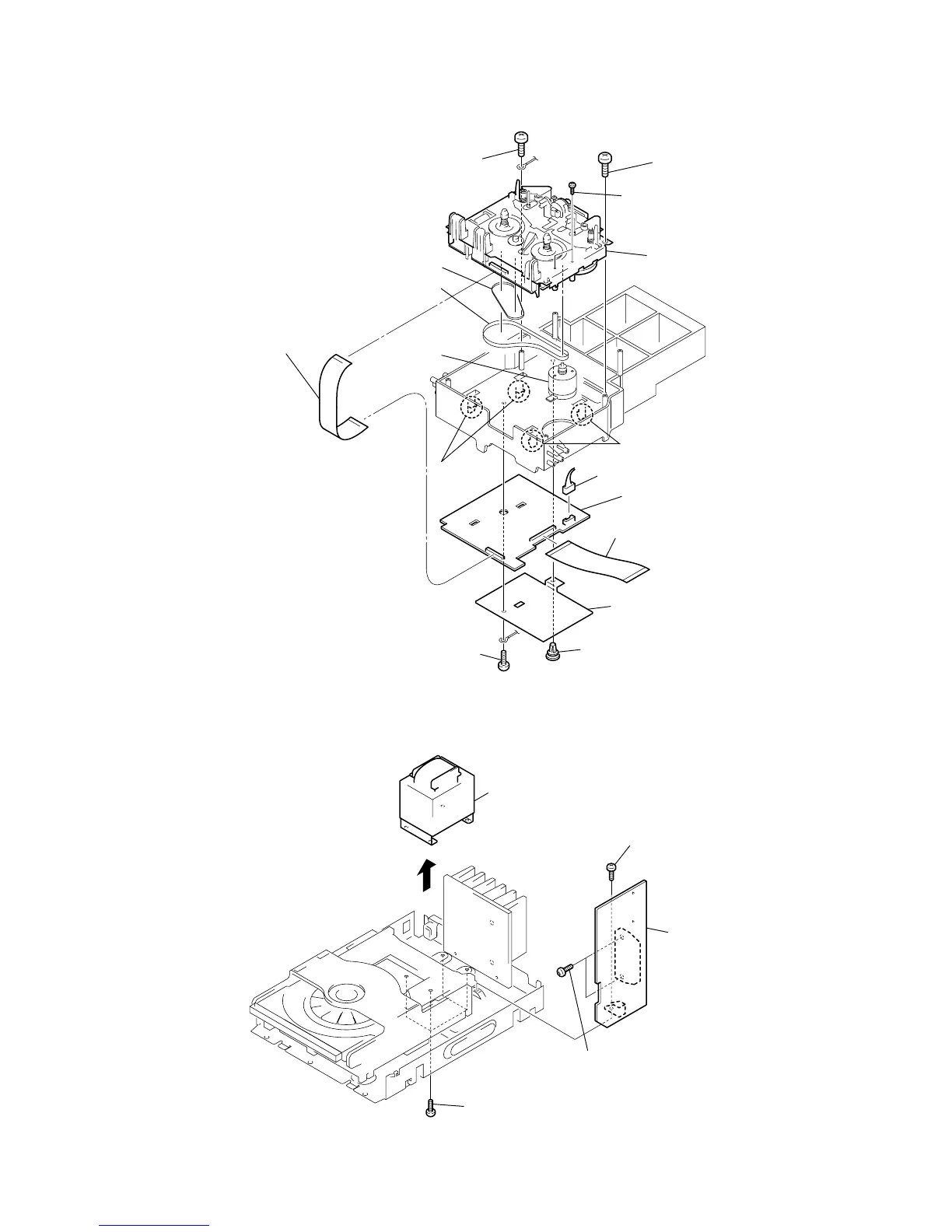

3-5. CASSETTE MACHANISM
3-6. POWER TRANSFORMER/AMP BOARD
qa Screw
(+ BVTP 3
× 10)
qd Two screws
qf Motor
qs Cassette mechanism dec
k
8 TC board
9 Connector (6P)
7 Two craws
6 Two crews
qh FR/Belt
qg Belt main
q; Screw
(+ BVTP 3
× 10)
1 Screw
(+ BVTP 3
× 10)
2 Nylon rivet (DIA. 3.5)
3 Shield plate (TC)
4 Flat cable (12 core)
5 Flat cable (25 core)
1 Four screws
(+ BVTP 3 × 6)
3 Two screws
(+ BVTP 3 × 16)
4 Screw (+ BVTT 3 ×
6)
2 Power transformer
(Remove in the direction
of the arrow.)
AMP board
