Sony HCD-J3MD - Printed Wiring Board - PANEL Section

HCD-J3MD
6464

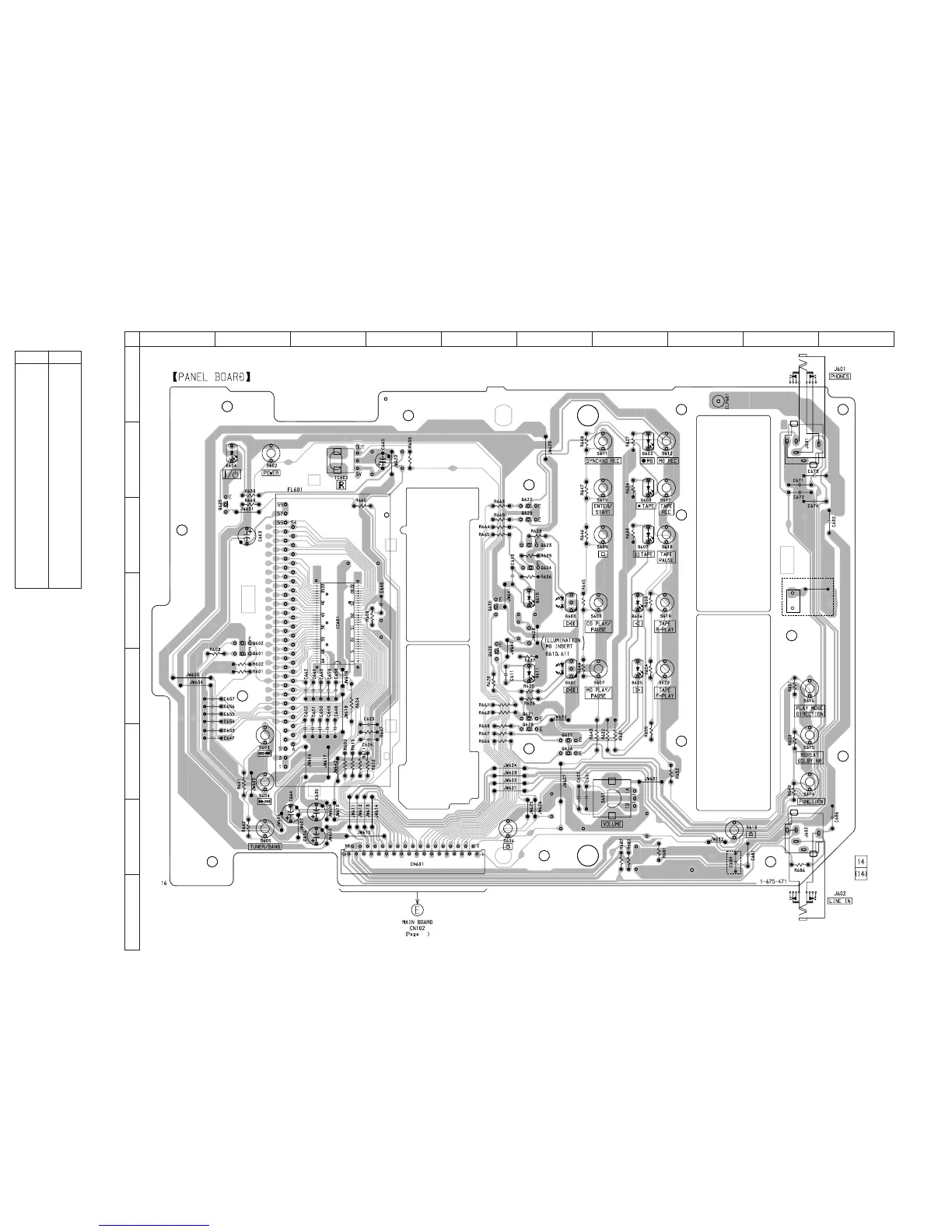

6-17. Printed Wiring Board – PANEL Section –
• See page to 49 for Circuit Boards Location.
EXCEPT
HK MODEL
EXCEPT HK MODEL
CN602
12
A
B
C
D
E
F
G
H
345678910
57
Ref. No. Location
D601 E-6
D602 B-7
D603 D-6
D604 B-2
D605 E-7
D606 D-7
D607 C-7
D608 B-7
D610 D-6
D611 E-6
IC601 D-3
IC602 B-3
Q601 E-2
Q602 D-2
Q620 D-5
Q621 E-6
Q622 C-6
Q623 C-6
Q624 C-6
Q625 C-2
Q626 F-6
Q627 F-6
Q628 F-6
Q629 C-6
Q630 D-5
• Semiconductor
Location
