Sony HCD-J3MD - MD Mechanism Deck Section-2 (MBU-5 A)

83

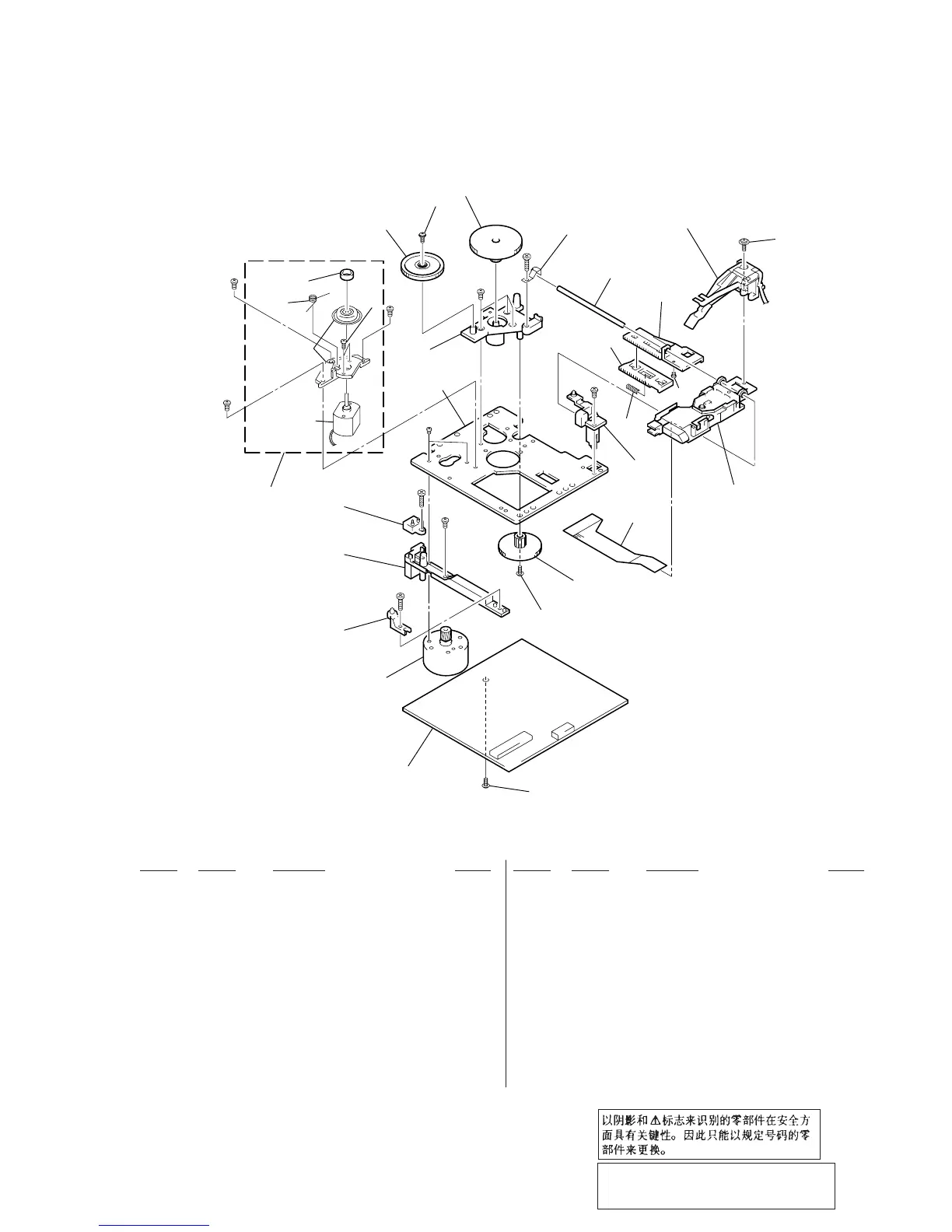

7-5. MD MECHANISM DECK SECTION-2 (MBU-5A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not
supplied
not supplied
#7
#7
HR901
#7
#7
#7
#7
#7
#6
#6
#5
201
202
202
203
204
S102
M901
205
207
208
209
210
211
212
222
220
214
215
216
218
219
206
205
221
M902
* 201 A-4699-893-A BD(MD) BOARD, COMPLETE
202 3-372-761-01 SCREW (M1.7), TAPPING
* 203 4-996-267-01 BASE (BU-D)
* 204 4-996-255-01 BASE (BU-C)
205 4-900-590-01 SCREW, PRECISION SMALL
206 4-996-258-01 SPRING, COMPRESSION
207 4-996-262-01 GEAR (SL-C)
208 1-667-954-11 PCBOARD, FLEXIBLE
* 209 4-210-664-01 BASE (BU-A)
0 210 A-4672-541-A OPTICAL PICK-UP KMS-260B/J1N
* 211 4-996-252-01 CHASSIS, BU
* 212 4-996-254-01 BASE (BU-B)
214 4-996-260-01 GEAR (SL-A)
215 4-996-261-01 GEAR (SL-B)
216 4-996-265-01 SHAFT, MAIN
218 4-996-256-01 SL(BASE)
219 4-996-257-01 RACK (SL)
220 4-996-263-01 SPRING (CLV), TORSION
221 4-988-560-01 SCREW (+P 1.7X6)
222 4-211-036-01 SCREW (1.7X2.5), +PWH
M901 A-4672-475-A MOTOR ASSY, SPINDLE
M902 A-4672-474-A MOTOR ASSY, SLED
S102 1-762-148-21 SWITCH, PUSH (2 KEY)
HR901 1-500-502-11 HEAD, OVER LIGHT
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
