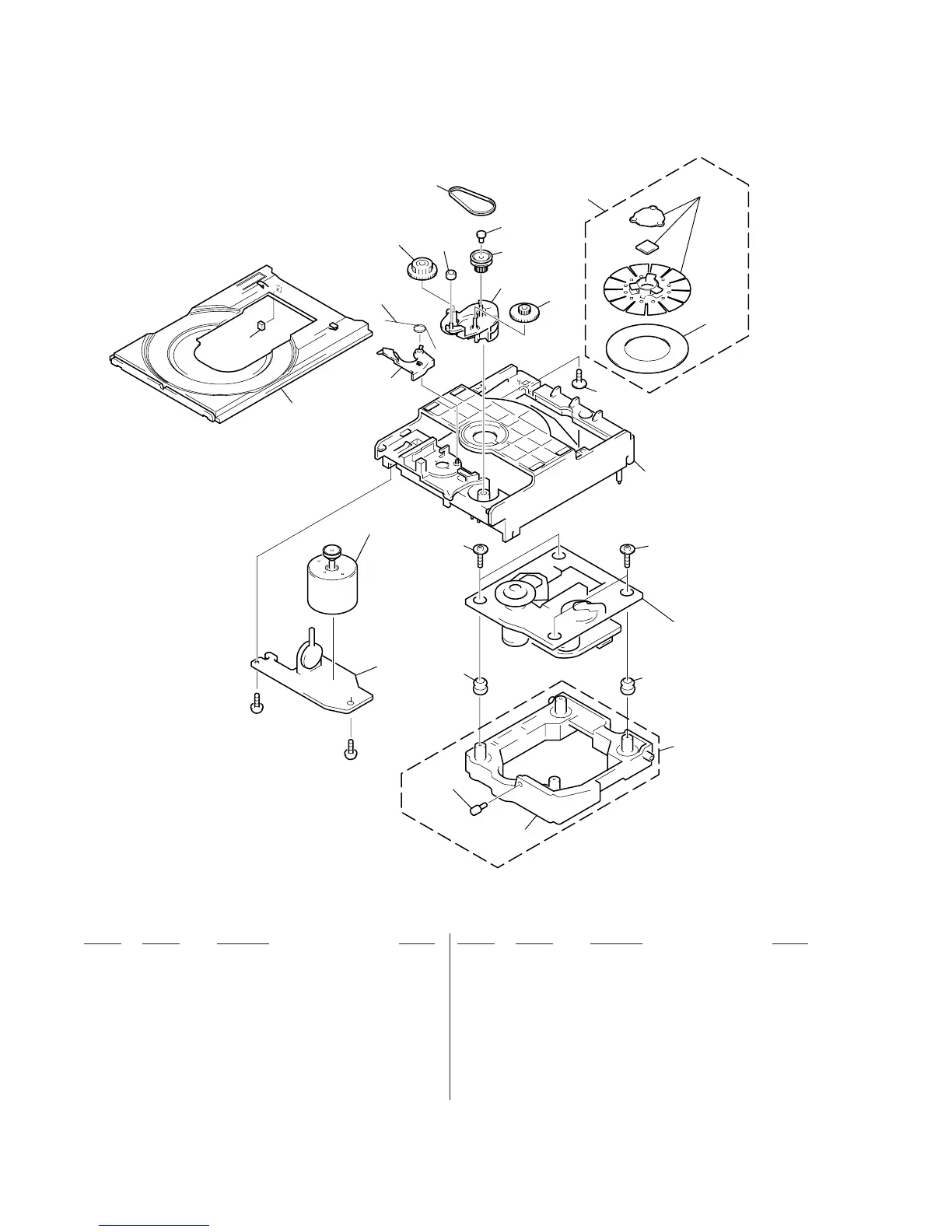

7-6. CD MECHANISM DECK SECTION-1 (CDM55A-5SBD32)
not supplied
BU-5SBD32
not supplied
not supplied
not supplied
#4
#4
252
253
254
255
256
257
258
259
260
261
262
263
264
264
264
251
267
266
266
265
M103
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 4-925-315-31 DAMPER
252 1-674-336-11 LOADING BOARD
253 4-220-231-01 TRAY (CDM)
254 4-220-229-01 LEVER (SW)
255 4-220-239-01 SPRING, TORSION
256 4-220-237-01 GEAR (A)
257 4-220-238-01 GEAR (B)
258 4-220-234-01 PULLEY (LDG)
259 4-221-815-01 ROLLER
260 4-220-230-01 CHASSIS
261 4-221-816-01 BELT (CDM55)
262 4-221-916-01 BUSHING
263 A-4672-773-A PULLEY (AT) ASSY
264 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
265 4-220-233-01 CAM(CDM55)
266 4-959-996-01 SPRING (932), COMPRESSION
267 A-4672-772-A HOLDER (BU) ASSY
M103 A-4672-771-A MOTOR (LD) ASSY
