Sony HCD-J3MD - Panel Board; Main Board

22

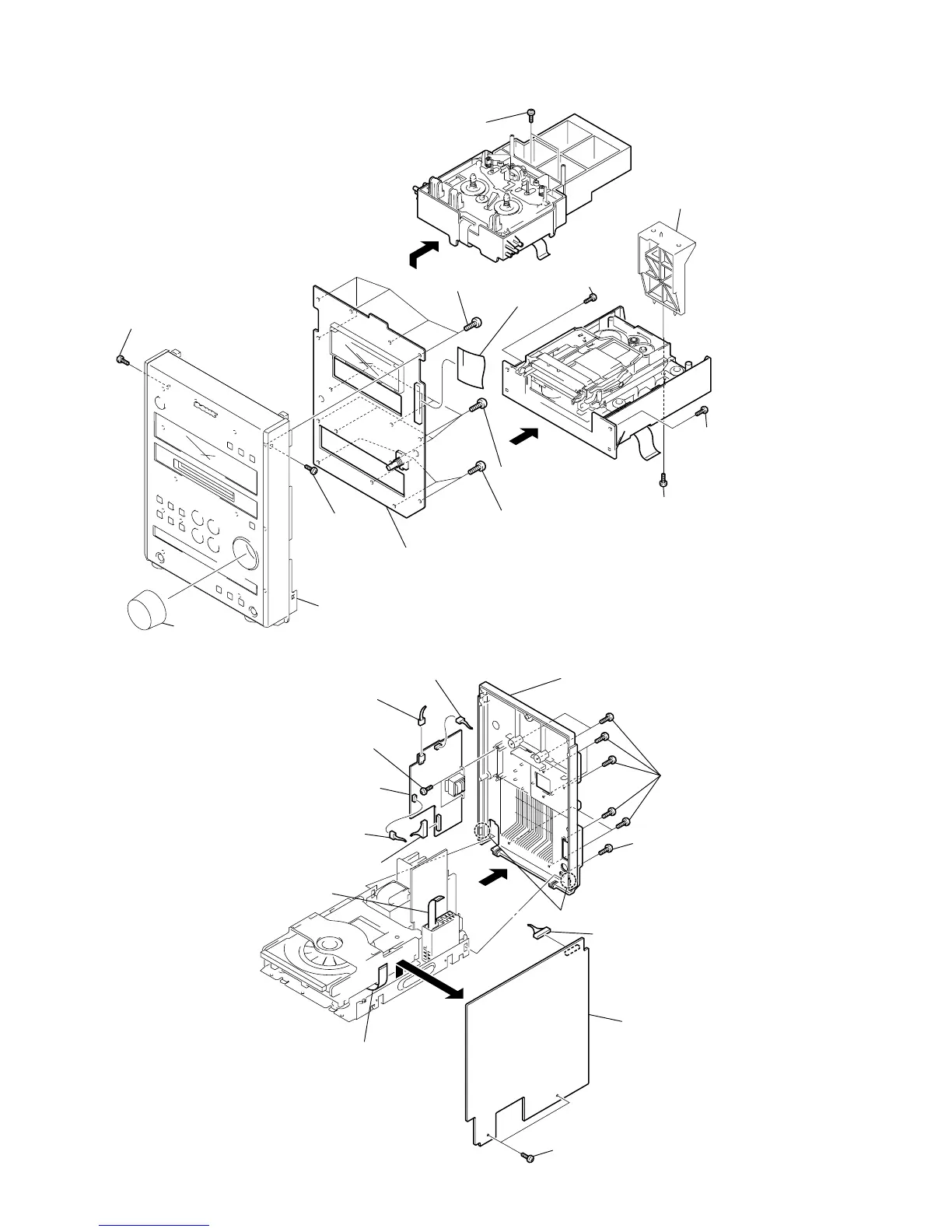

3-3. PANEL BOARD
3-4. MAIN BOARD
qs Six screws
(+ BVTP 2.6
× 8)
qd Four screws
(+ BVTP 2.6
× 8)
qa Five screws
(+ BVTP 2.6
× 8)
q; Knob (vol)
qf Panel board
qg Flat cable (35 core)
6 Screw
(+ BVTP 2.6
× 8
)
8 Screw
(+ BVTP 3
× 10)
9 Holder (MD)
Front panel
5 Screw
(+ BVTP 2.6
× 8)
3 Two screws
(+ BVTP 3
× 10)
2 Screw (+ BVTP 3 × 10)
1 Screw
(+ BVTP 3
× 10)
4
7
5 Screw
(+ BVTP 3
× 8)
6 Eight screws
(+ BVTP 3
× 10)
qf Two screws
(+ BVTP 3
× 6)
9 Two screws
(+ BVTP 3
× 10)
qd Flat cable (19 core)
qa Flat cable (15 core)
2 Connector (2P)
1 Connector (2P)
3 Connector (5P)
qs Connector (5P)
q; Trans board
qg Main board
(Remove in the direction
of the arrow.)
4 Connector (13P)
8 Back panel
(Remove in the direction
of the arrow.)
7 Two craws
