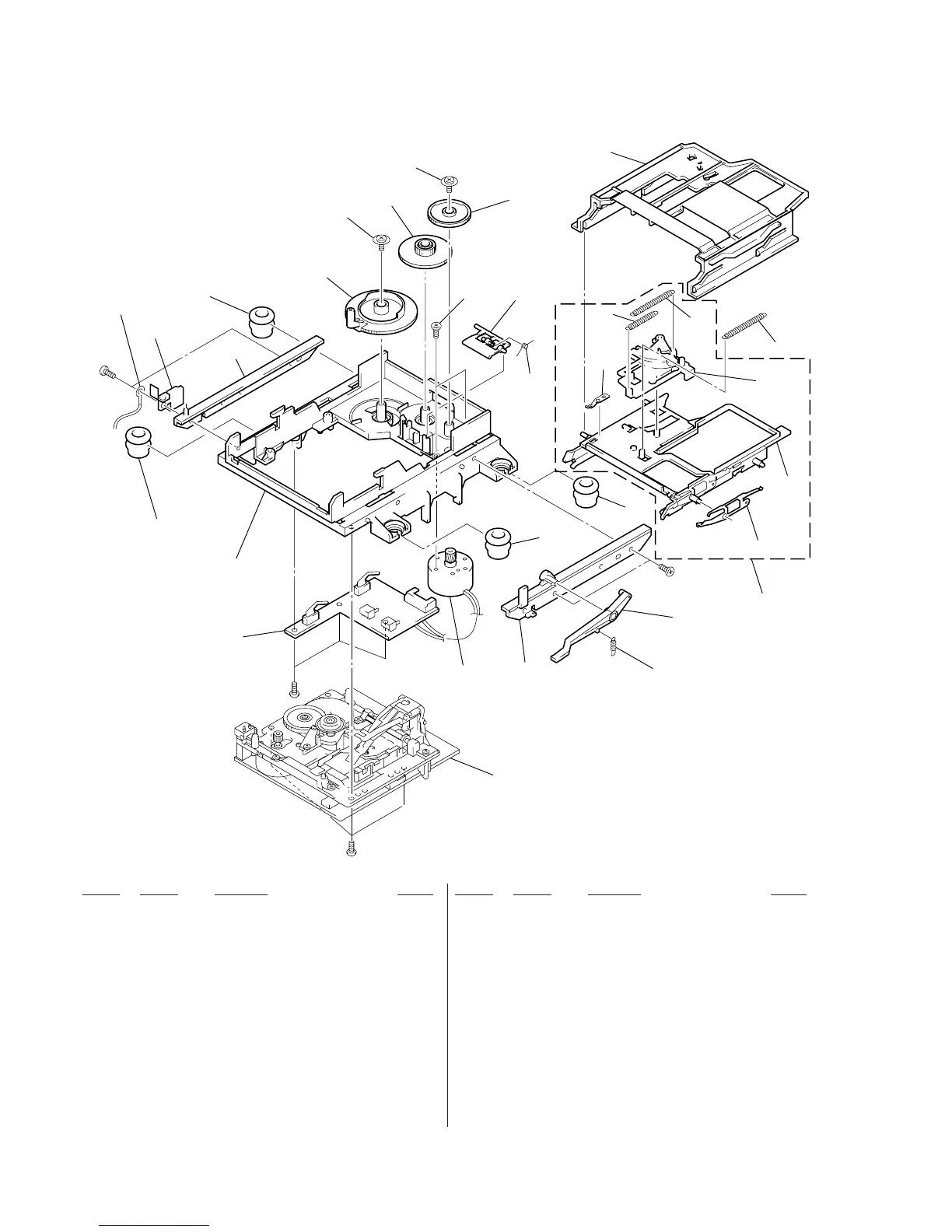

7-4. MD MECHANISM DECK SECTION-1 (MDM-5H)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#8
M903
#8
#8
not supplied
#4
MBU-5A
151
152
153
153
154
155
156
157
157
158
159
160
161
162
163
163
164
165
166
169
170
171
172
173
175
176
177
174
* 151 1-668-111-11 SWBOARD
* 152 4-996-217-01 CHASSIS
153 4-996-223-01 INSULATOR (F)
* 154 4-996-218-01 BRACKET (GUIDE R)
155 4-996-277-01 SPRING (O/C), TENSION
156 4-996-226-01 LEVER (O/C)
157 4-999-347-01 INSULATOR (R)
* 158 4-996-225-01 BRACKET (GUIDE L)
159 4-988-466-21 SPRING (ELECTROSTATIC), LEAF
160 4-996-219-01 GEAR (CAM GEAR)
161 4-996-220-01 GEAR (A)
162 4-996-221-01 GEAR (B)
163 4-933-134-01 SCREW (+PTPWH M2.6X6)
164 4-996-224-01 SCREW (1.7X3), +PWH
165 4-996-227-04 LEVER (HEAD)
166 4-996-229-01 SPRING (HEAD LEVER), TORSION
169 4-996-214-01 SPRING (SLIDER), TENSION
170 4-996-216-01 SPRING (HOLDER), TENSION
171 4-210-396-01 SPRING (LOCK), TENSION
172 X-4951-631-1 SLIDER ASSY
* 173 X-4949-245-8 HOLDER ASSY
* 174 4-996-211-01 SLIDER (CAM)
175 4-998-763-01 SPRING (SHUTTER), LEAF
176 A-4680-417-B HOLDER COMPLETE ASSY
177 4-219-019-01 SPRING (RETAINER)
M903 X-4949-264-1 MOTOR ASSY, LOADING
