Sony HCD-J3MD - BD (CD) Board, Spindle Motor (M101) and Sled Motor (M102); CD Base Unit; Optical Pick-Up Section of CD; (Kss-213 Ba;F-Np)

25

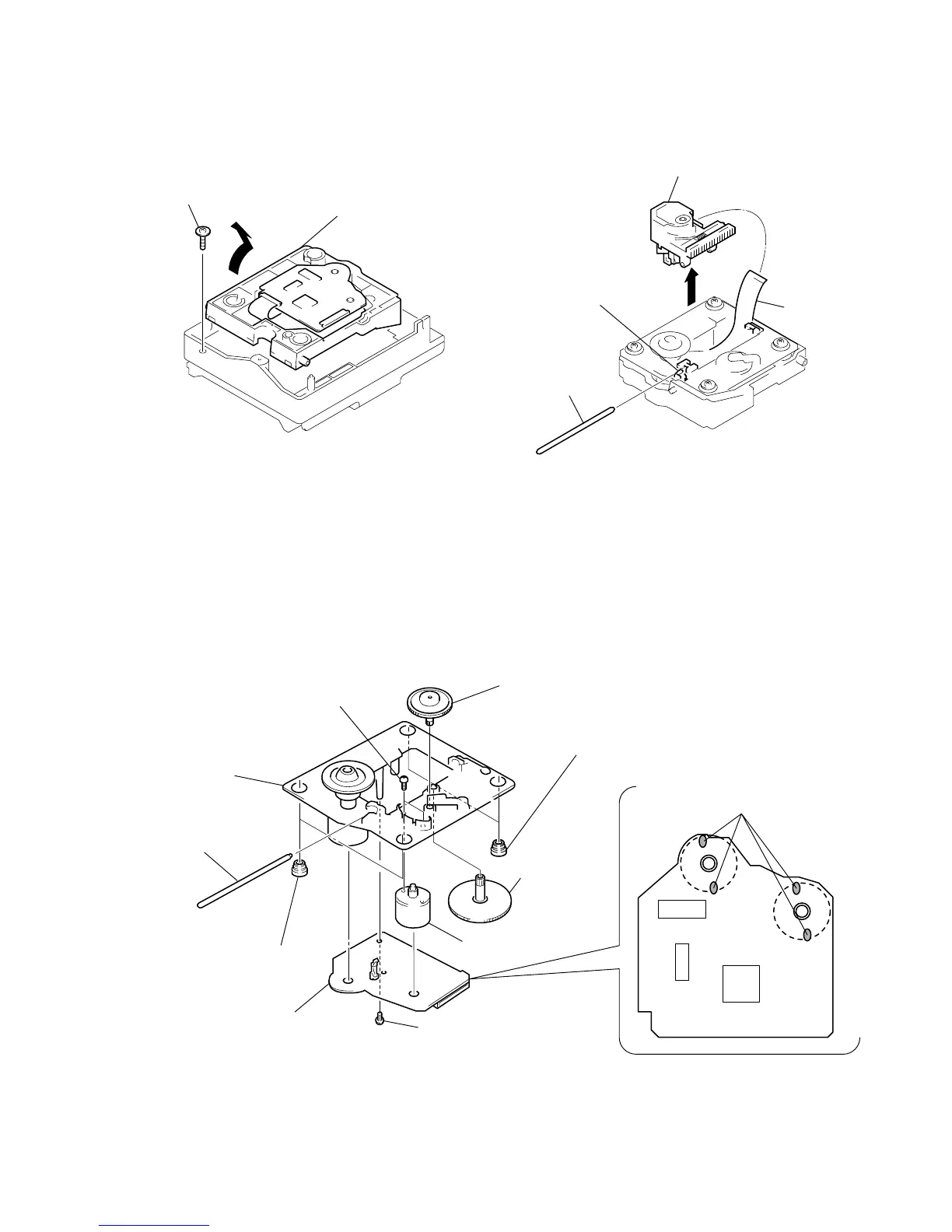

3-9. CD BASE UNIT
2 Remove the Holder (BU) assembl
y
in the direction of arrow A.
A
1 Floating screw
(PTPWH M2.6)
3-10. OPTICAL PICK-UP SECTION OF CD
(KSS-213BA/F-NP)
3 Optical pick-up (for CD)
4 Flat type wir
e
(16 core)
1 Release the lever in the
arrow direction B.
B
2 Sled shaft
3-11. BD (CD) BOARD, SPINDLE MOTOR (M101) AND SLED MOTOR (M102)
IC102
IC101
M101
M102
IC103
2 Remove the four solders.
1 Screw
(BVTP 2.6x8)
!¡ Spindle motor
(M101)
5 Sled motor
(M102)
0 Sled shaft
6 Gear (M)
7 Flatness gear (P)
8 Two Insulators (BU)
9 Two Insulators (BU)
4 Two screws
(P 2x3)
3 BD (CD) board
