SECTION 1
SERVICING NOTE
Note 1: “R”
As this unit has only a few buttons, some operations require the use of remote commander (provided with RM-SJ373/unit: 1-418-554-11)
buttons. These operations are indicated as “R” in this manual.
Example: MENU/NO “R” ...Press the MENU/NO button of the remote commander.

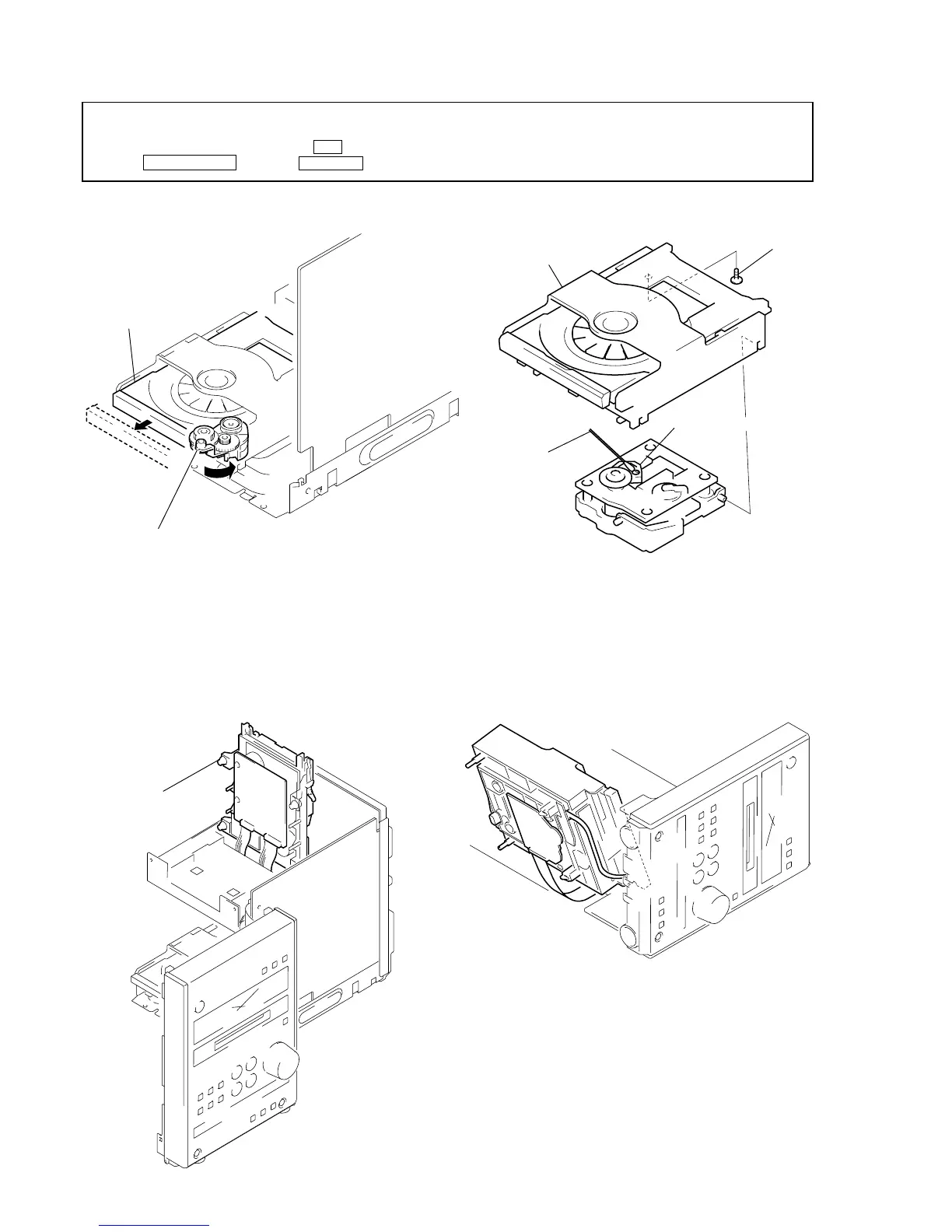

DRAWING OUT THE TRAY DURING POWER OUT CLEANING THE OPTIAL PICKUP (CD PLAYER)
SERVICE POSITION OF THE MD MECHANISM SERVICE POSITION OF THE CD MECHANISM
Tray (CDM)
Move the cam block in the direction
of arrow with a finger.
CD mechanism deck
Optical pick-up block
Floating scre
